(88.100.35[14]) - VAR - 342573, 342521 - DIA KIT, CONVERSION KIT FROM 2 TO 3 VALVES

Запчасти Case IH FARMALL 120A (88.100.35[14]) - VAR - 342573, 342521 - DIA KIT, CONVERSION KIT FROM 2 TO 3 VALVES (88) - ACCESSORIES

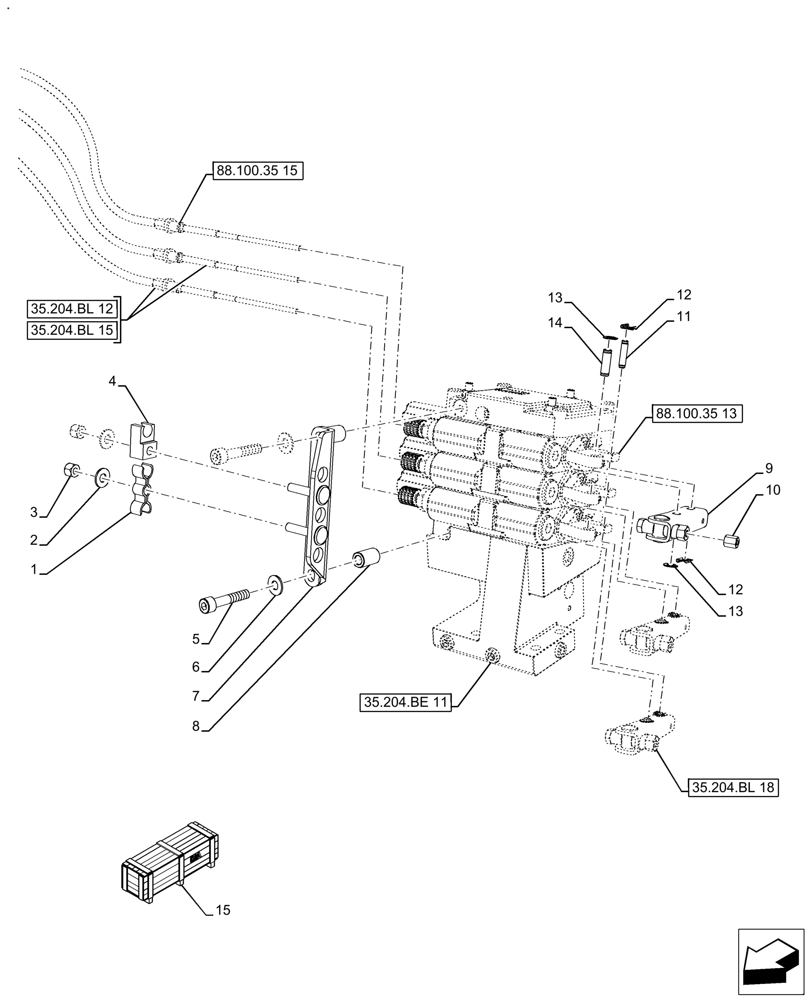

Схема запчастей Case IH FARMALL 120A - (88.100.35[14]) - VAR - 342573, 342521 - DIA KIT, CONVERSION KIT FROM 2 TO 3 VALVES (88) - ACCESSORIES
35.204.bl 12
10
15
8
2
5
12
9
12
6
4
13
1
13
14
7
3
88.100.35 15
88.100.35 13
11
35.204.be 11
35.204.bl 15
35.204.bl 18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5191951

CLAMP,3 Hoses

1шт.

2

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

3

412250

NUT,M8 x 1.25, Cl 8

2шт.

4

47132225

BRACKET

Fixing Cable

1шт.

5

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

2шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

7

84486548

STOP

1шт.

8

47996750

SPACER,24.8mm L

1шт.

9

87358094

LEVER

Control

1шт.

10

82012528

NUT,Hex, M6 x 1

1шт.

11

5193177

PIN,6mm OD x 29.48mm L

1шт.

12

11063976

CLIP

M6 x 5 x .74 Retaining

2шт.

13

9990741

SNAP RING,M8, Ext

2шт.

14

5113008

PIN,8mm OD x 26mm L

1шт.

15

47929594

CONVERSION KIT

Dia Kit, Conversion Form 2 to 3 Valves, Cab, Incl 1 - 14

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

15

47929608

KIT

Dia Kit, Conversion Form 2 to 3 Valves, Cab, Incl 1 - 14

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.
