Запчасти Case IH FARMALL 120A (88.100.35[13]) - VAR - 342573, 342521 - DIA KIT, CONVERSION KIT FROM 2 TO 3 VALVES (88) - ACCESSORIES

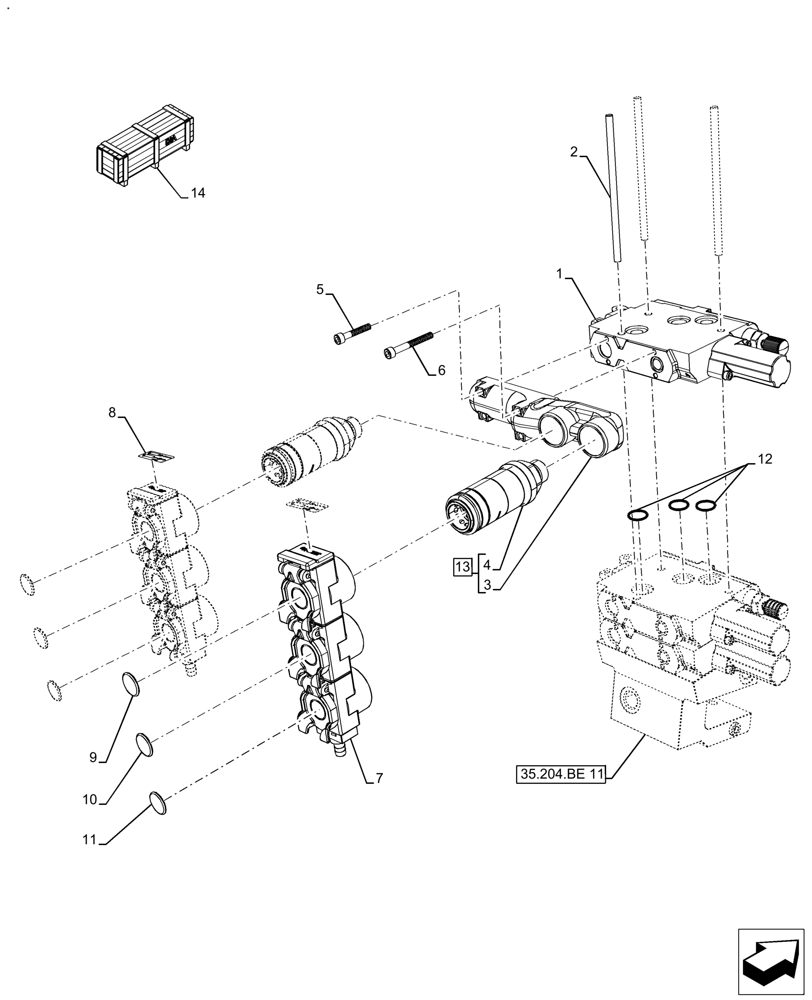

Схема запчастей Case IH FARMALL 120A - (88.100.35[13]) - VAR - 342573, 342521 - DIA KIT, CONVERSION KIT FROM 2 TO 3 VALVES (88) - ACCESSORIES
35.204.be 11
12
9
4
3
11
7
5
14
13
8
1
10
2
6

Артикул

Название

Примечание

Количество

1

47922869

VALVE

Section

1шт.

2

47922872

TIE-ROD

3шт.

3

47123062

Support, Quick Couplers

1шт.

4

47370116

COUPLING

2шт.

5

47940507

SCREW

Hex Soc, M6 x 35 12.9 DAC

2шт.

6

47940518

SCREW

Hex Soc, M6 x 50 12.9 DAC

2шт.

7

84290177

DUST CAP

2шт.

8

5119109

DECAL

2шт.

9

82029894

DISC,20mm OD x 5.5mm Thk, Green, PA6+30% Glass Fiber

Brown

2шт.

10

82029893

LENS

Blue

2шт.

11

82029892

LENS

Green

2шт.

12

47665457

SEAL KIT

1шт.

13

87381964

QUICK MALE COUPLING

Incl 3, 4

1шт.

14

47929594

CONVERSION KIT

Dia Kit, Conversion Form 2 to 3 Valves, Cab, Incl 1 - 13

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

14

47929608

KIT

Dia Kit, Conversion Form 2 to 3 Valves, Rops, Incl 1 - 13

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.
