(88.100.35[12]) - VAR - 718173, 718180, 439152, 439153 - DIA KIT, MID MOUNT VALVE KIT, LOADER

Запчасти Case IH FARMALL 120A (88.100.35[12]) - VAR - 718173, 718180, 439152, 439153 - DIA KIT, MID MOUNT VALVE KIT, LOADER (88) - ACCESSORIES

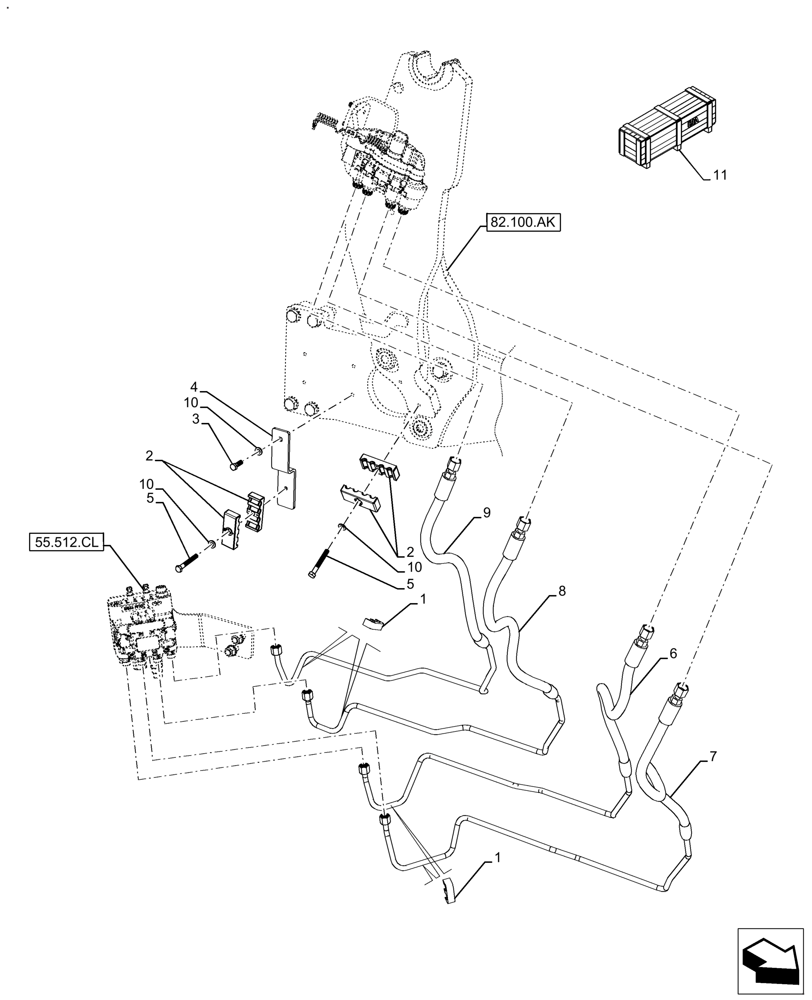

Схема запчастей Case IH FARMALL 120A - (88.100.35[12]) - VAR - 718173, 718180, 439152, 439153 - DIA KIT, MID MOUNT VALVE KIT, LOADER (88) - ACCESSORIES
55.512.cl
5
5
10
10
3
2
2
10
9
1
4
7
11
8
1
6
82.100.ak
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

83926189

CLAMP

2шт.

2

324067A1

BRACKET

LDR Hydraulic Hose MNT

4шт.

3

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

4

47723784

BRACKET

Assy. to Block

1шт.

5

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

6

47855446

HOSE

Pipe Service A2

1шт.

7

47855481

HOSE

Pipe Service B2

1шт.

8

47855499

HOSE

Pipe Service A1

1шт.

9

47855513

HOSE

Pipe Service B1

1шт.

10

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

3шт.

11

47805482

Mid Mount Loader Valve Joystic Cab, Incl 1 - 10

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Sohipren

1шт.

11

47805487

Mid Mount Loader Valve Joystic Rops, Incl 1 - 10

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Sohipren

1шт.

11

47932553

KIT

Mid Mount Loader Valve Joystic Cab, Incl 1 - 10

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Bosch

1шт.

11

47932567

KIT

Mid Mount Loader Valve Joystic Rops, Incl 1 - 10

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Bosch

1шт.
