Запчасти Case IH FARMALL 120A (88.100.35[09]) - VAR - 718173, 718180, 439152, 43915 - DIA KIT, MID MOUNT VALVE KIT, LOADER (88) - ACCESSORIES

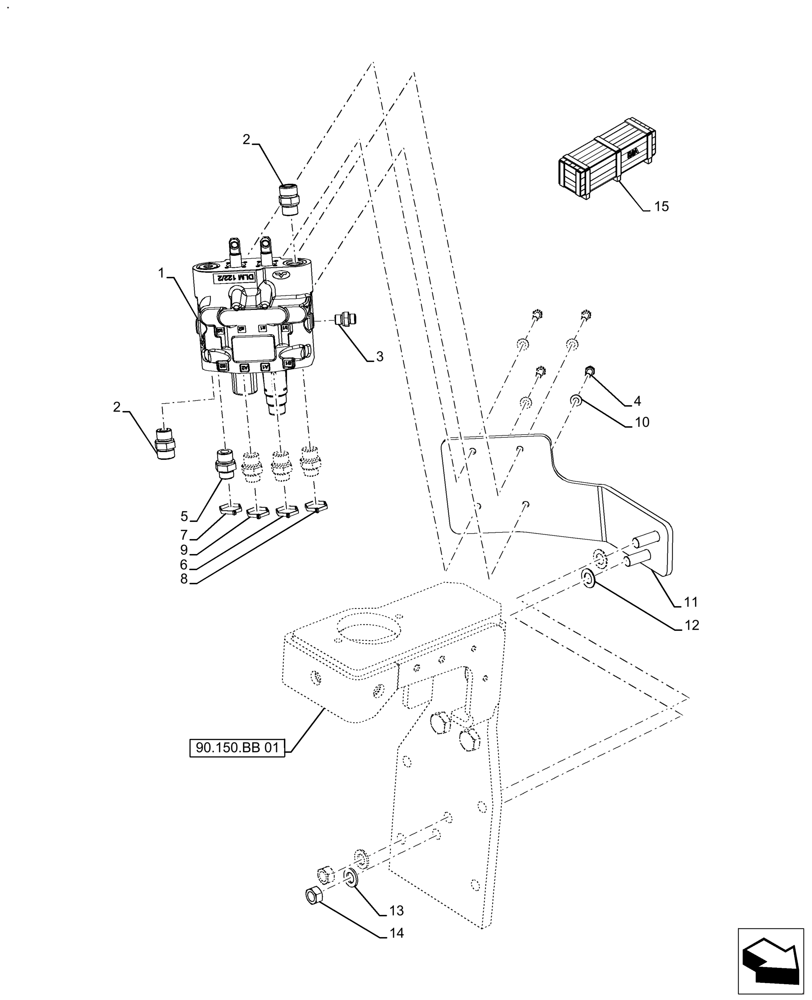

Схема запчастей Case IH FARMALL 120A - (88.100.35[09]) - VAR - 718173, 718180, 439152, 43915 - DIA KIT, MID MOUNT VALVE KIT, LOADER (88) - ACCESSORIES
90.150.bb 01
7
3
8
6
11
15
2
10
12
2
9
13
1
5
4
14

Артикул

Название

Примечание

Количество

1

87696631

INCHING VALVE

1шт.

2

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

2шт.

Sohipren

1шт.

2

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

2шт.

Bosch

1шт.

3

87661868

HYD CONNECTOR,M14 x 1.5 x 29.5mm L

STR -5 ORFS M14 x 1.5mm ORB

1шт.

Sohipren

1шт.

3

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

Bosch

1шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

5

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

4шт.

6

87407797

FASTENER

Cable Tie, 7.4 X 0.19 IN, Nylon, Yellow

1шт.

7

87407798

FASTENER

Cable Tie, 7.4 X 0.19 IN, Nylon, Red

1шт.

8

87407803

FASTENER

Cable Tie, 7.4 X 0.19 IN, Nylon, Green

1шт.

9

87585307

FASTENER

Cable Tie, 7.4 X 0.19 IN, Nylon, Blue

1шт.

10

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

4шт.

Sohipren

1шт.

10

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

Bosch

1шт.

11

47659977

BRACKET

1шт.

12

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

13

10572179

LOCK WASHER,M16

2шт.

14

392530

NUT,M16, Cl 10

2шт.

15

47805482

Mid Mount Loader Valve Joystic Cab, Incl 1 - 14

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Sohipren

1шт.

15

47805487

Mid Mount Loader Valve Joystic Rops, Incl 1 - 14

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Sohipren

1шт.

15

47932553

KIT

Mid Mount Loader Valve Joystic Cab, Incl 1 - 14

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Bosch

1шт.

15

47932567

KIT

Mid Mount Loader Valve Joystic Rops, Incl 1 - 14

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Bosch

1шт.

Выбрано товаров: 35
