(88.100.35[05]) - VAR - 718165, 718171 - DIA KIT, FROM 3 DELUXE VALVES TO 4

Запчасти Case IH FARMALL 120A (88.100.35[05]) - VAR - 718165, 718171 - DIA KIT, FROM 3 DELUXE VALVES TO 4 (88) - ACCESSORIES

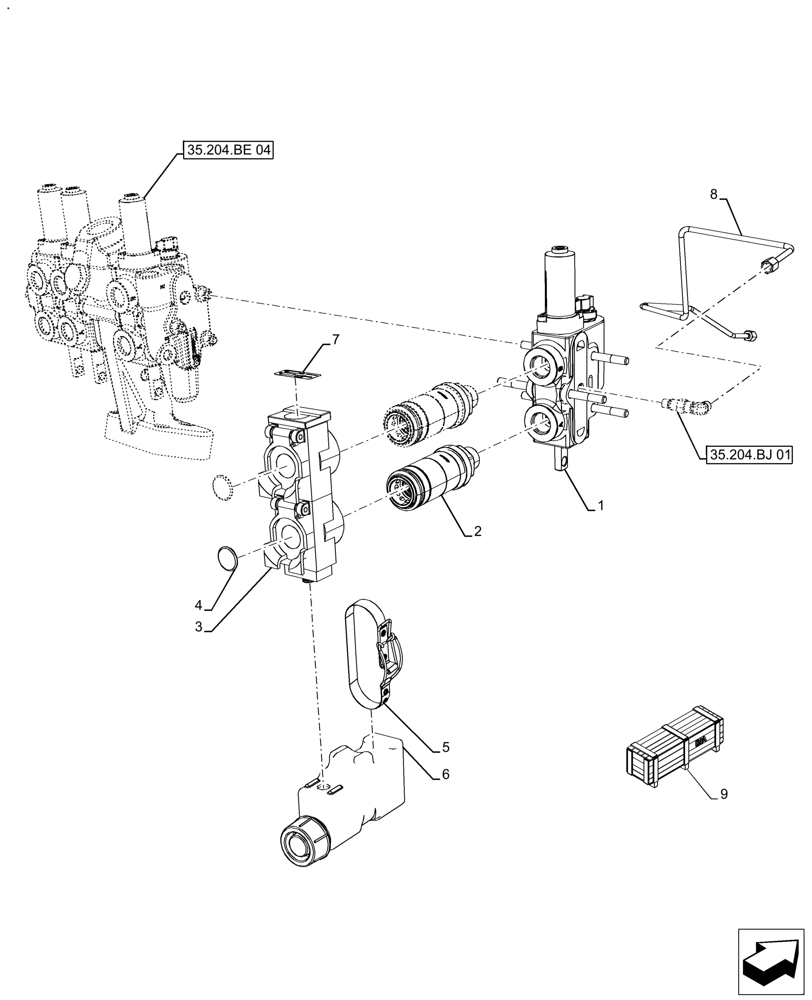

Схема запчастей Case IH FARMALL 120A - (88.100.35[05]) - VAR - 718165, 718171 - DIA KIT, FROM 3 DELUXE VALVES TO 4 (88) - ACCESSORIES
35.204.bj 01
5
2
4
8
3
9
7
1
6
35.204.be 04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47783174

VALVE

Replacement Valve

1шт.

Is Single Replacement Valve Slice. It Can Be Used to Replace Any Valve in The Remote Valve Stack

1шт.

1

47610794

BODY

Assy. Fourth Auxiliary Valve

1шт.

2

47370116

COUPLING

2шт.

3

82018943

DUST CAP

1шт.

4

82029895

DISC,20mm D, Black

Black

2шт.

5

82032061

CLIP

Bottle Retaining - CCLS Oil Collection System

1шт.

6

47922580

BOTTLE

Assy. Oil Collection System

1шт.

7

5119109

DECAL

1шт.

8

73338003

TUBE

Use With 4 Valves

1шт.

9

48130932

From 3 Deluxe Valves to 4, Cab, Incl 1 - 8

DIA KIT, TRACTOR

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

9

48130933

From 3 Deluxe Valves to 4, Rops, Incl 1 - 8

DIA KIT, TRACTOR

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.
