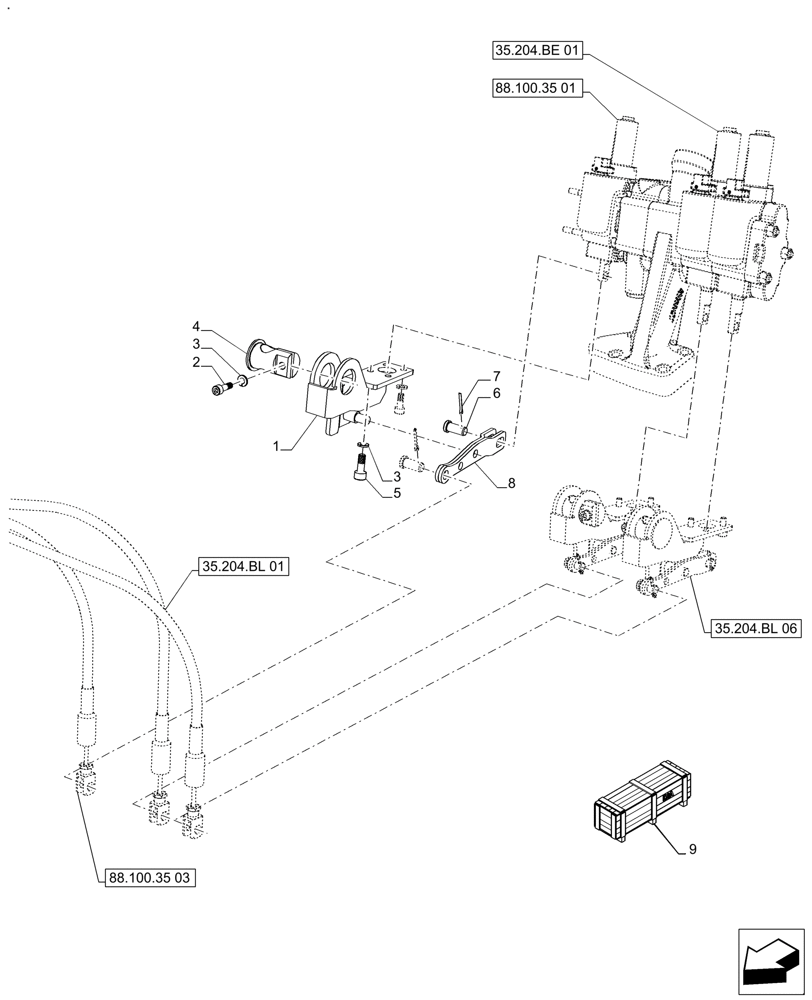

Запчасти Case IH FARMALL 120A (88.100.35[02]) - VAR 718164, 718166 - DIA KIT, FROM 2 DELUXE VALVES TO 3 (88) - ACCESSORIES

1

47792122

SUPPORT

Assy. Remote Valve

1шт.

2

14305331

HEX SOC SCREW,M6 x 20mm, Cl 10.9, Full Thd

1шт.

3

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

4

47600116

PIN

Groove

1шт.

5

47940512

SCREW

2шт.

6

86637937

CLEVIS PIN,3/8" x 11/16"

2шт.

7

81813880

COTTER PIN,3/32" x 3/4"

2шт.

8

47792131

CAM

1шт.

9

48130930

From 2 Deluxe Valves to 3, Cab. Incl 1 - 8

DIA KIT, TRACTOR

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

9

48130931

From 2 Deluxe Valves to 3, Rops. Incl 1 - 8

DIA KIT, TRACTOR

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.
