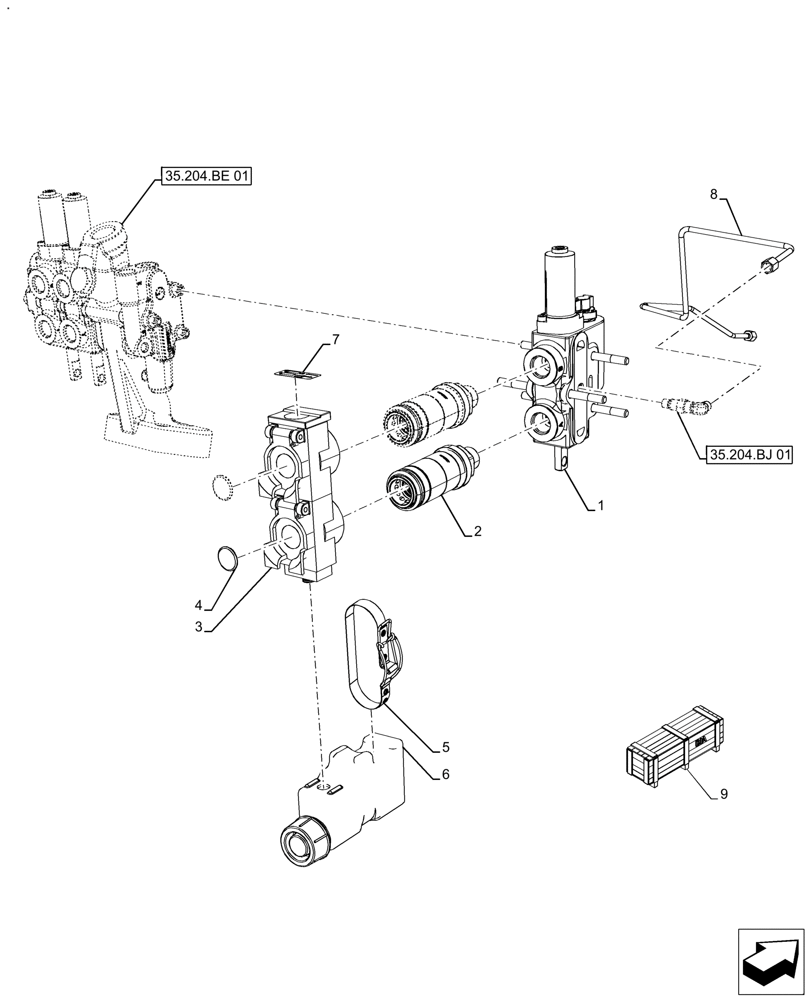

Запчасти Case IH FARMALL 120A (88.100.35[01]) - VAR 718164, 718166 - DIA KIT, FROM 2 DELUXE VALVES TO 3 (88) - ACCESSORIES

1

47783174

VALVE

Replacement Valve

1шт.

Is Single Replacement Valve Slice. It Can Be Used to Replace Any Valve in The Remote Valve Stack

1шт.

1

47607581

VALVE

Body Assy. Third Auxiliary Valve

1шт.

2

47370116

COUPLING

2шт.

3

82018943

DUST CAP

1шт.

4

82029894

DISC,20mm OD x 5.5mm Thk, Green, PA6+30% Glass Fiber

Brown

2шт.

5

82032061

CLIP

Bottle Retaining - CCLS Oil Collection System

1шт.

6

47922580

BOTTLE

Assy. Oil Collection System

1шт.

7

5119109

DECAL

Plate, Suppl. Valve Block

1шт.

8

47530532

TUBE

Use With 3 Valves

1шт.

9

48130930

From 2 Deluxe Valves to 3, Cab, Incl 1 - 8

DIA KIT, TRACTOR

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

9

48130931

From 2 Deluxe Valves to 3, Rops, Incl 1 - 8

DIA KIT, TRACTOR

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.
