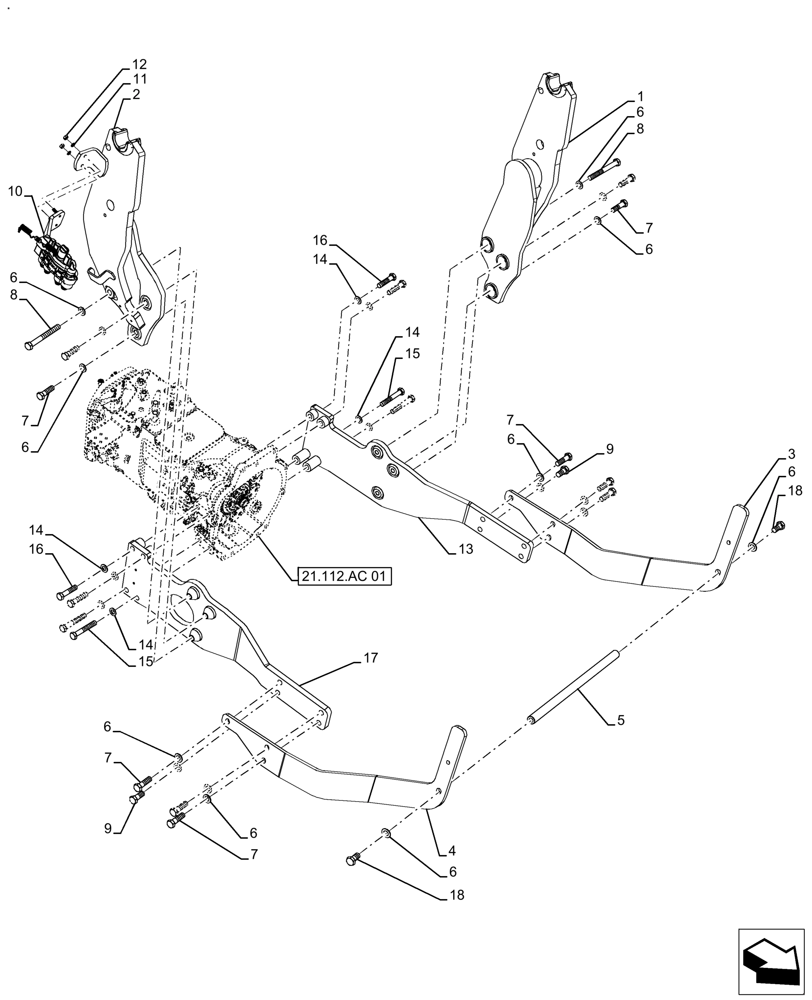

Запчасти Case IH FARMALL 120A (82.100.AK) - VAR - 330196 - FRONT LOADER, ARM, SUPPORT (82) - FRONT LOADER & BUCKET

1

47720488

SIDE RAIL

Assy. Up Right Part LH Pole

1шт.

SUPPLIER ALO PART NUMBER LDR10418893

1шт.

2

47720483

SIDE RAIL

Assy. Up Right Part RH Pole

1шт.

SUPPLIER ALO PART NUMBER LDR10418894

1шт.

3

47720495

GRILLE

Assy. Guard RH

1шт.

SUPPLIER ALO PART NUMBER LDR10418903

1шт.

4

47720492

GRILLE

Assy. Guard LH

1шт.

SUPPLIER ALO PART NUMBER LDR10418904

1шт.

5

47720497

TIE-ROD

1шт.

SUPPLIER ALO PART NUMBER LDR10418909

1шт.

6

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

16шт.

7

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

10шт.

8

84334022

BOLT,Hex, M20 x 2.5 x 180mm, Cl 10.9

2шт.

9

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

2шт.

10

47695744

VALVE

1шт.

11

85700672

LOCK WASHER,M10

2шт.

12

86500689

NUT,M10 x 1.5, Cl 10

2шт.

13

47720502

SIDE RAIL

Assy. LH

1шт.

SUPPLIER ALO PART NUMBER LDR10418891

1шт.

14

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

8шт.

15

86639145

BOLT,Hex, M20 x 130mm, Cl 10.9

4шт.

16

9846950

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

4шт.

17

47720500

Rail, Side Assy. RH

1шт.

SUPPLIER ALO PART NUMBER LDR10418892

1шт.

18

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

2шт.
