(55.510.AF[04]) - VAR - 391610 - MAIN HARNESS, CAB, PART III

Запчасти Case IH FARMALL 120A (55.510.AF[04]) - VAR - 391610 - MAIN HARNESS, CAB, PART III (55) - ELECTRICAL SYSTEMS

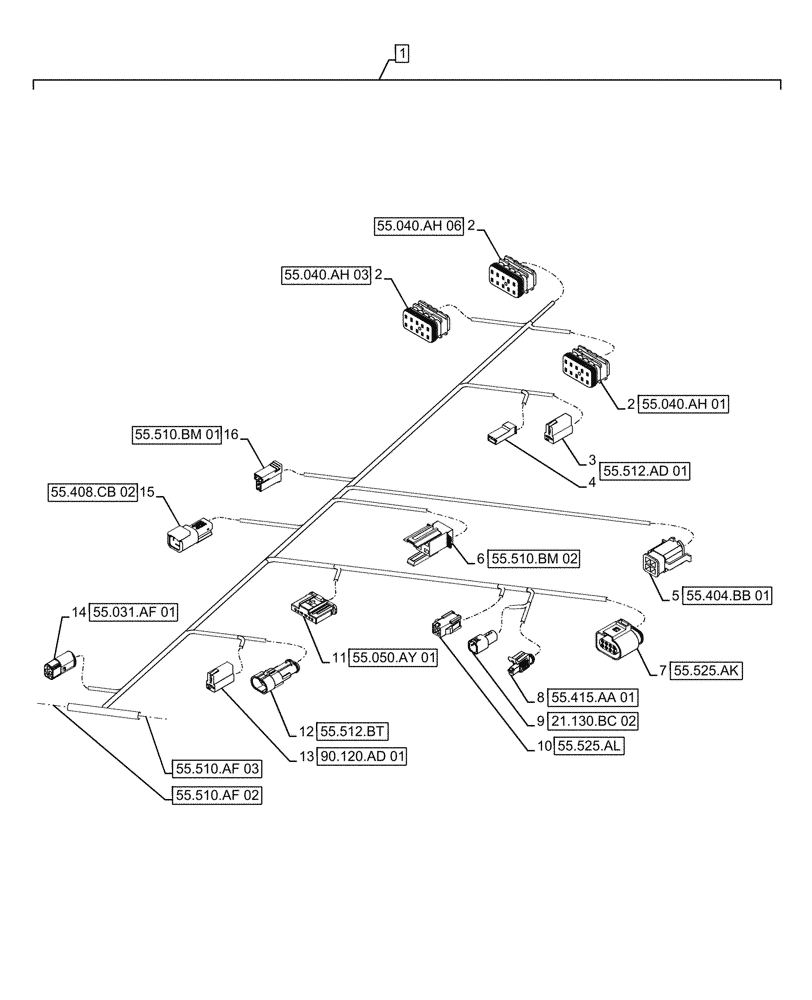

Схема запчастей Case IH FARMALL 120A - (55.510.AF[04]) - VAR - 391610 - MAIN HARNESS, CAB, PART III (55) - ELECTRICAL SYSTEMS
90.120.ad 01
4
1
2
2
9
11
7
5
3
16
13
8
10
12
15
14
6
2
55.510.af 03
55.512.bt
55.408.cb 02
55.040.ah 06
55.415.aa 01
55.040.ah 01
55.404.bb 01
55.510.bm 01
55.050.ay 01
55.512.ad 01
55.525.ak
55.510.bm 02
55.510.af 02
55.525.al
21.130.bc 02
55.031.af 01
55.040.ah 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47926935

WIRE HARNESS

Main Cab, Incl 2 - 16

1шт.

2

84819781

ELEC CONNECTOR,Female

3шт.

3

87699736

ELEC CONNECTOR,Female, 2 Cavities

1шт.

4

87675193

ELEC CONNECTOR

1шт.

5

87745334

ELEC CONNECTOR

1шт.

6

82944116

ELEC CONNECTOR

1шт.

7

87702265

ELEC CONNECTOR

1шт.

8

87687239

CONTACT HOUSING,Female, 1 Pole

1шт.

9

87357892

ELEC CONNECTOR

1шт.

10

87694694

ELEC CONNECTOR,Female, 4 Cavities

1шт.

11

84286809

WIRE CONNECTOR

1шт.

12

87687244

ELEC CONNECTOR

1шт.

13

87699736

ELEC CONNECTOR,Female, 2 Cavities

1шт.

14

82867472

WIRE CONNECTOR,Female

1шт.

15

87696547

ELEC CONNECTOR,Male, 2 Cavities

1шт.

16

87691950

TERMINAL CONNECTOR

1шт.
