Запчасти Case IH FARMALL 120A (55.510.AF[01]) - VAR - 391610 - MAIN HARNESS, BRACKET, CABLE CLIP, CAB (55) - ELECTRICAL SYSTEMS

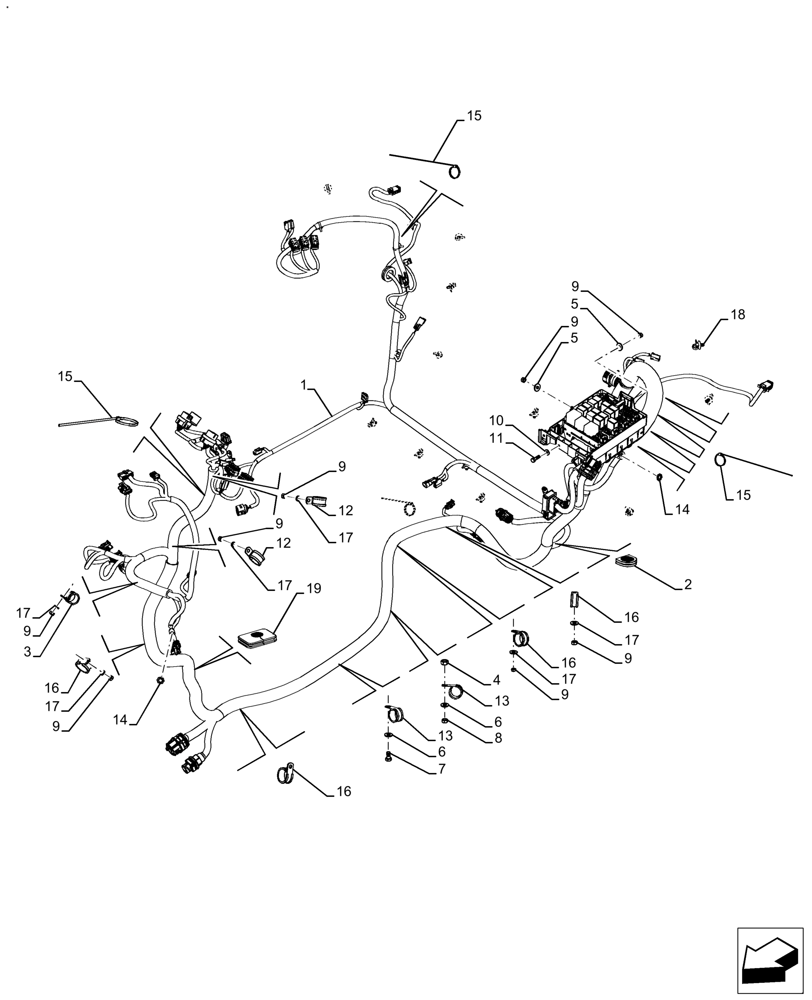

Схема запчастей Case IH FARMALL 120A - (55.510.AF[01]) - VAR - 391610 - MAIN HARNESS, BRACKET, CABLE CLIP, CAB (55) - ELECTRICAL SYSTEMS
17
8
17
17
3
7
9
9
16
11
9
5
17
13
9
16
19
16
12
6
14
13
10
15
9
9
2
9
18
17
12
9
6
15
17
15
1
16
4
14
5

Артикул

Название

Примечание

Количество

1

47804345

WIRE HARNESS

Main Cab, Serial Range: -NT00803, CT00545

1шт.

Used With Jumper 47839116, 87709397, 47892011

1шт.

1

47926935

WIRE HARNESS

Main Cab, Start Serial: NT00803, CT00545

1шт.

2

84335716

GROMMET

Main Rear Grommet

1шт.

3

10418801

CLAMP,16mm, Coat, P Type

1шт.

4

86500689

NUT,M10 x 1.5, Cl 10

1шт.

5

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

6

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

7

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

8

43362

NUT,M8 x 1.25, Cl 10

1шт.

9

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

8шт.

10

81838650

WASHER,5.3mm ID x 15mm OD x 2mm Thk

1шт.

11

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

1шт.

12

10442090

RETAINER,26mm, Coat, P Type

2шт.

13

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

2шт.

14

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

2шт.

15

83933061

STRAP

Cable Tie, 7 x 0.193in

7шт.

16

10442290

CLIP,30mm, Coat, P Type

4шт.

17

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

18

82033028

CABLE TIE,170mm L

11шт.

19

84408117

GROMMET

Main Harness Convuleted

1шт.

Выбрано товаров: 21
