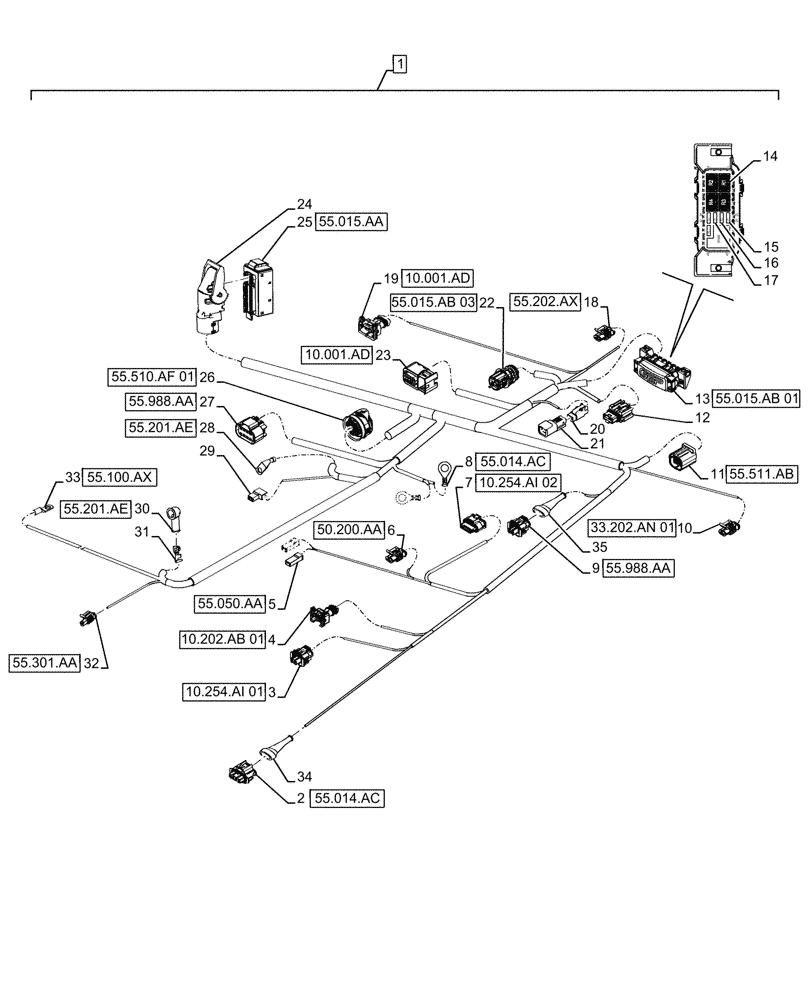

Запчасти Case IH FARMALL 120A (55.015.AB[02]) - VAR - 391610 - HARNESS, ENGINE (55) - ELECTRICAL SYSTEMS

1

47917951

WIRE HARNESS

Engine APH T4B, Incl 2 - 35

1шт.

2

87709809

ELEC CONNECTOR

1шт.

3

87709798

ELEC CONNECTOR,Female, 2 Cavities

1шт.

4

84475258

Connector, Electric, 2W

1шт.

5

87675193

ELEC CONNECTOR

2шт.

6

82012083

WIRE CONNECTOR,Female

1шт.

7

84190317

WIRE CONNECTOR,Female, 5 Cavities

1шт.

8

84596842

Terminal, Ring M10

2шт.

9

87709793

WIRE CONNECTOR,Female, 2 Cavities

1шт.

10

82012083

WIRE CONNECTOR,Female

1шт.

11

82002274

MULTIPOLE CONNECTOR,Female, 6 Pole

1шт.

12

84175724

FUSE HOLDER

1шт.

13

84380518

FUSE BOX

1шт.

14

84561098

RELAY,12V, 35A

4шт.

15

84153830

FUSE,5A, Mini, Beige

2шт.

16

84127704

FUSE,20A, Mini, Yellow

2шт.

17

84127708

FUSE,30A, Mini, Green

1шт.

18

82012083

WIRE CONNECTOR,Female

1шт.

19

84806091

WIRE CONNECTOR,Female, 3 Pin

1шт.

20

87696093

ELEC CONNECTOR,Female, 2 Cavities

1шт.

21

87696547

ELEC CONNECTOR,Male, 2 Cavities

1шт.

22

84414690

Connector, Electric, 16W

1шт.

23

84152563

ELEC CONNECTOR

1шт.

24

84596421

COVER

1шт.

25

84595906

ELEC CONNECTOR

1шт.

26

84142902

TERMINAL CONNECTOR

1шт.

27

84137509

ELEC CONNECTOR

1шт.

28

84138841

Terminal, Ring M10

1шт.

29

87695188

CONTACT HOUSING,Female, 1 Pole

1шт.

30

87718302

Connector, Wire, Rubber Boot

1шт.

31

84266414

Terminal, Ring M8

1шт.

32

87687239

CONTACT HOUSING,Female, 1 Pole

1шт.

33

84600610

Terminal, Ring M6-10

1шт.

34

87679951

CAP

1шт.

35

87691026

CAP

1шт.
