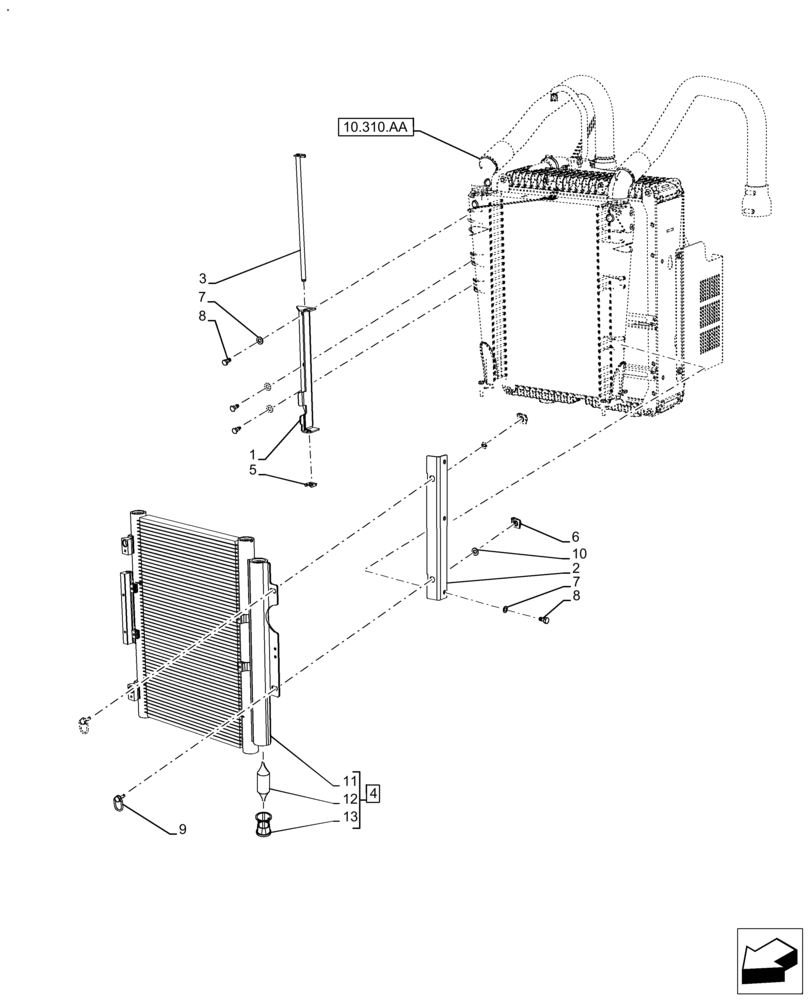

Запчасти Case IH FARMALL 120A (50.200.AK) - VAR - 390646 - AIR CONDITIONER, CONDENSER (50) - CAB CLIMATE CONTROL

1

47620857

BRACKET

RH Condenser

1шт.

2

47620872

BRACKET

LH Condenser

1шт.

3

47632125

GROOVED PIN

Pin Assy. Hinge Condenser

1шт.

4

47817708

CONDENSER

Condenser, APH With DYE, Incl 11 - 13

1шт.

5

11064171

SPRING CLIP,M10 x 8

M10 x 8 x 1.05 STL ZND Retaining

1шт.

6

87734730

SPRING CLIP

2шт.

7

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

8

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

6шт.

9

87734728

STUD,5mm OD x 56mm L

2шт.

10

47892931

WASHER

18.26mm x 7.14mm x 1.57mm

2шт.

11

NSS

NOT SOLD SEPARAT

Condenser, APH With DYE, Incl in 4

1шт.

12

47817752

BAG

Receiver-Dryer, Drier Bag With DYE

1шт.

13

47580879

FILTER

Element

1шт.
