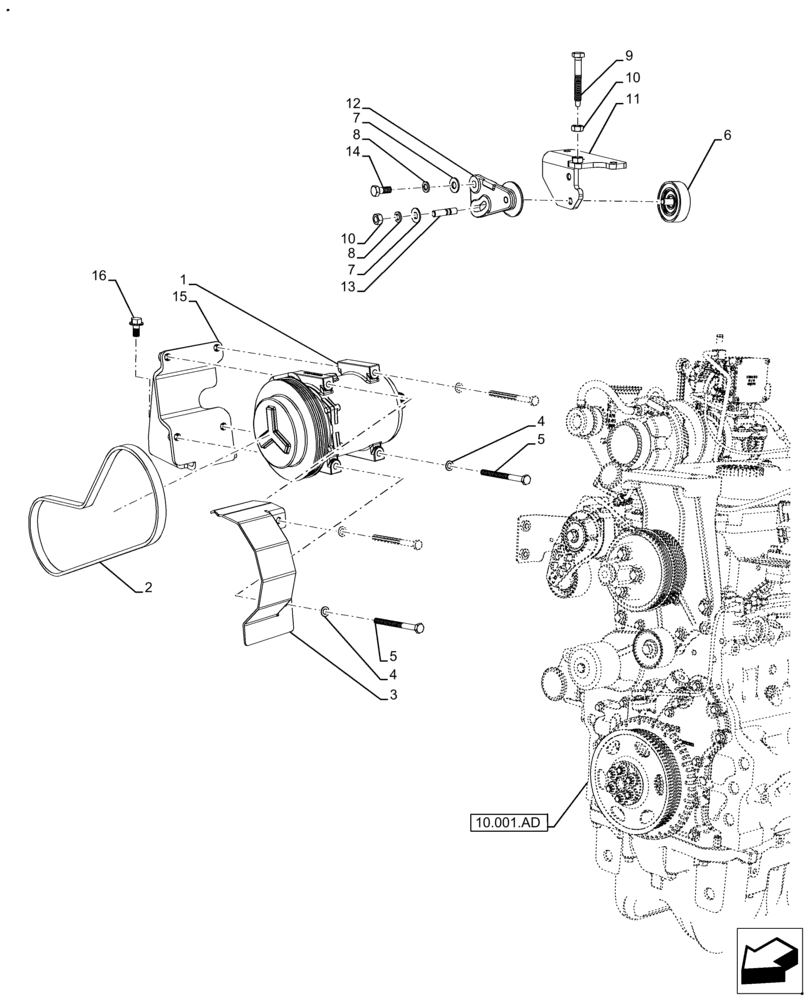

Запчасти Case IH FARMALL 120A (50.200.AA) - VAR - 390646 - AIR CONDITIONER, COMPRESSOR (50) - CAB CLIMATE CONTROL

1

73337492

AIRCOND. COMPRESSOR

12V

1шт.

2

47475779

BELT

4PK1050 Compressor AC

1шт.

3

47475805

GUARD

Pulley Compressor

1шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

5

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

4шт.

6

87803152

IDLER,65mm OD

1шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

8

85700672

LOCK WASHER,M10

2шт.

9

4899843

SCREW,Hex, M10 x 1.5 x 80

1шт.

10

86500689

NUT,M10 x 1.5, Cl 10

2шт.

11

73337488

SUPPORT

Takeup

1шт.

12

87803498

BRACKET

Belt Tensioner

1шт.

13

4899402

STUD,M10 x 1.5 x 45.00mm

1шт.

14

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

15

47475811

SUPPORT

Assy. Compressor

1шт.

16

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

3шт.
