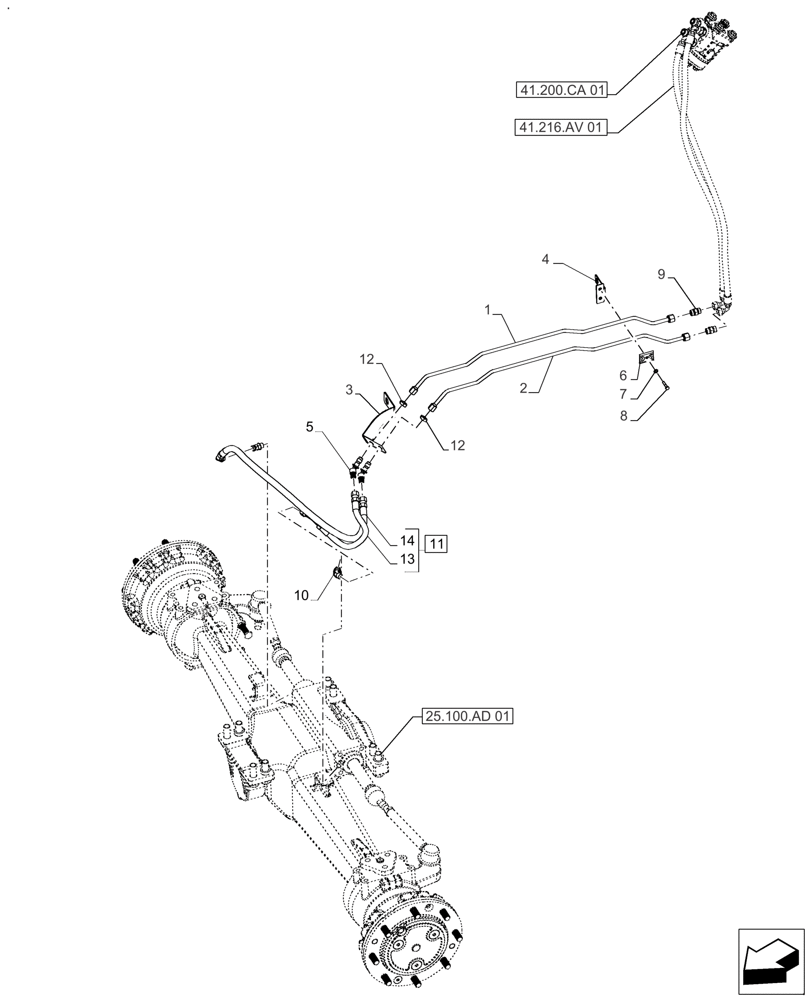

Запчасти Case IH FARMALL 120A (41.216.AV[02]) - VAR - 390340 - STEERING ASSY, MECHANICAL, 4WD (41) - STEERING

1

47628741

TUBE

Hydraulic Assy. Up Front Steering

1шт.

2

47628774

TUBE

Hydraulic Assy. Lower Front Steering

1шт.

3

47628780

SUPPORT

1шт.

4

82988461

SUPPORT

Side Support Assy. Steering Tubes

1шт.

5

83992505

45 ELBOW,9/16"-18

2шт.

6

85700613

CLAMP,1.75mm W x 0.20mm Thk

Power Steering, Pipe Mounting Bracket

1шт.

7

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

1шт.

8

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

1шт.

9

84431546

UNION,11/16"-16 ORFS

2шт.

10

83958374

45 ELBOW,9/16"-18, 37° x 9/16"-18, O-Ring

2шт.

11

82982900

KIT

Hoses Power Steering Cylinder, Incl 13, 14

1шт.

12

83912070

JAM NUT,9/16"-18

2шт.

13

82983368

FLEXIBLE HOSE,9.53mm ID x 825mm L, SAE 100R1

Hydraulic Steering

1шт.

14

82983369

FLEXIBLE HOSE,9.65mm ID x 435mm L, SAE 100R1

Hydraulic Steering

1шт.
