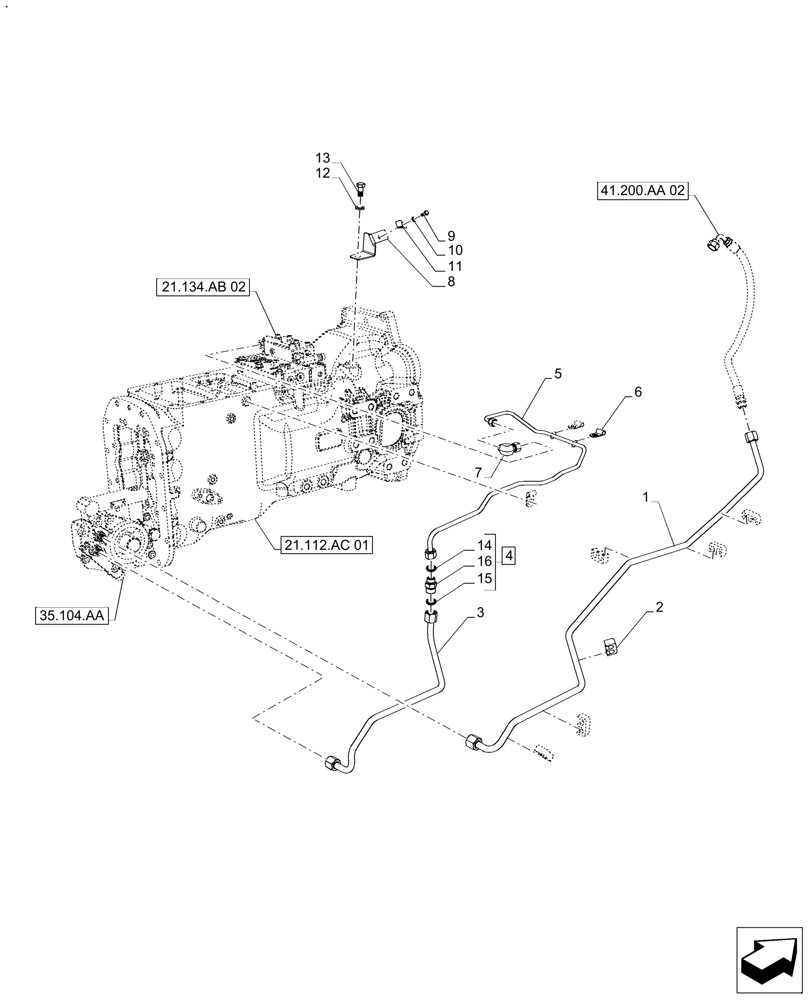

Запчасти Case IH FARMALL 120A (41.200.AO[02]) - VAR - 330059, 330061 - TUBE, STEERING ASSY, POWERSHUTTLE (41) - STEERING

1

47607244

TUBE

Recycling Tube Assy.

1шт.

2

83926189

CLAMP

6шт.

3

47615885

HYD TUBE

RR Return

1шт.

4

84431472

HYD CONNECTOR,13/16"-16 ORFS x 11/16"-16 ORFS

Incl 14 - 16

1шт.

5

47614767

HYD TUBE

RR Return

1шт.

6

86639010

CLAMP,9.5mm, Coat, 13.5mm Bolt Hole, P Type

3шт.

7

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

8

73338522

SUPPORT

Steering Tubes

1шт.

9

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

10

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

1шт.

11

81843670

CLIP,0.62", 0.34" Bolt Hole, P Type

0.62 P UNINSUL 5/16 BOLT

1шт.

12

83925802

LOCK WASHER,1/2"

1шт.

13

83955887

BOLT,Hex, M12 x 1.75 x 25mm, Gr 8.8

1шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Plating, ZN YCR 5, Incl in 4

1шт.
