Запчасти Case IH FARMALL 120A (41.200.AL) - VAR - 330059, 330061 - HYDRAULIC STEERING, OIL FILTER, POWERSHUTTLE (41) - STEERING

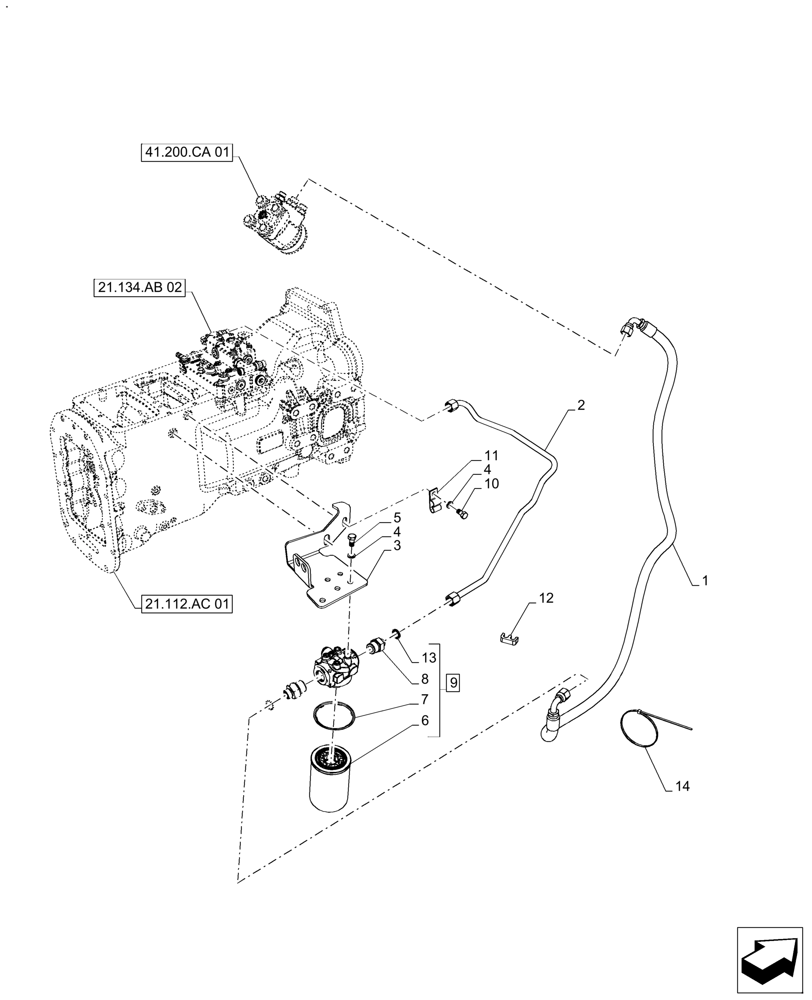

Схема запчастей Case IH FARMALL 120A - (41.200.AL) - VAR - 330059, 330061 - HYDRAULIC STEERING, OIL FILTER, POWERSHUTTLE (41) - STEERING
41.200.ca 01
8
4
10
2
14
11
5
13
4
9
1
6
7
3
12
21.134.ab 02
21.112.ac 01

Артикул

Название

Примечание

Количество

1

48036032

HOSE

Steering Column Assy. Return Line Steering

1шт.

2

47567905

TUBE

Hydraulic Assy. Feedback Rear

1шт.

3

47946366

BRACKET

Feedback Filter

1шт.

4

85700672

LOCK WASHER,M10

5шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

6

47862588

HYDRAULIC OIL FILTER

Spin on

1шт.

7

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

Friction

1шт.

8

73337892

FITTING

Fitting Assy. 1 1/16-12 13/16-16 UN2A

2шт.

9

47862587

HYDRAULIC OIL FILTER

Incl 6 - 8, 13

1шт.

10

412160

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

11

83934650

CLIP

1/2X1/2 Tube

1шт.

12

83926189

CLAMP

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring Face Seal 1/2", Incl in 9

2шт.

14

83933061

STRAP

Cable Tie, 7 x 0.193in

1шт.

Выбрано товаров: 14
