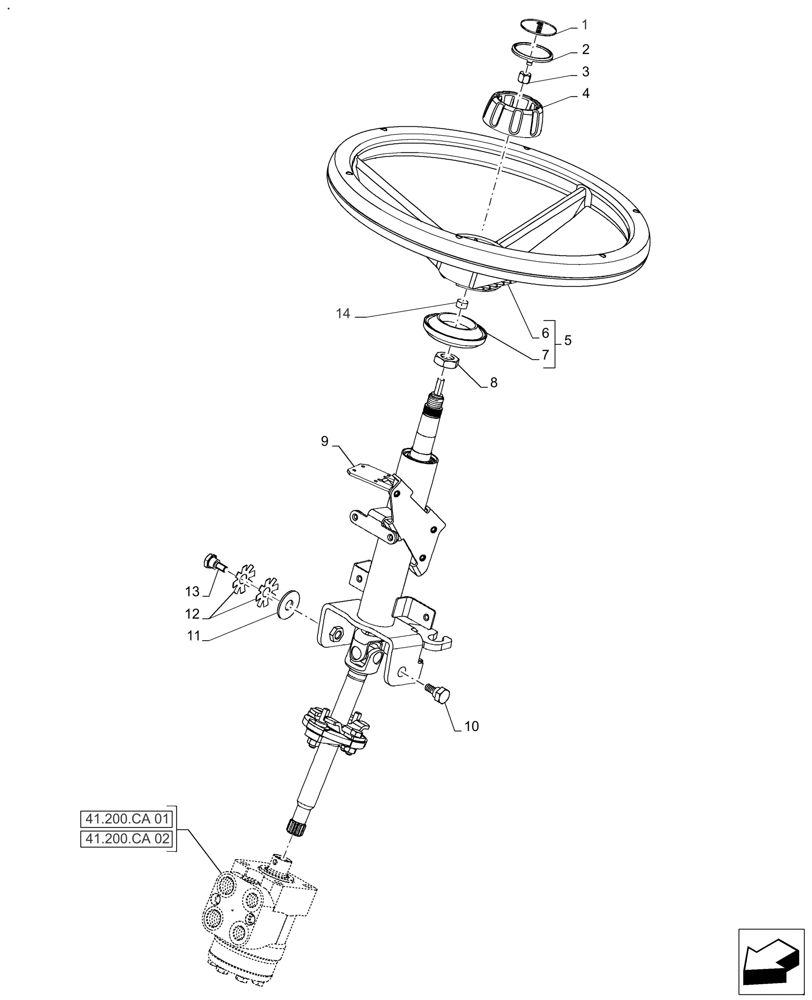

Запчасти Case IH FARMALL 120A (41.101.AB[04]) - VAR - 330644 - TELESCOPIC, STEERING COLUMN, CAB (41) - STEERING

1

87698705

EMBLEM,44mm OD

CASE IH, Steering Wheel

1шт.

2

87302798

CAP,54mm OD, Black

Steering Wheel

1шт.

3

16104511

NUT,M8 x 1.25, Cl 8.8

1шт.

4

87302160

KNOB

Steering Wheel

1шт.

5

5091213

STEERING WHEEL

Incl 6, 7

1шт.

6

5131877

STEERING WHEEL

1шт.

7

5091705

COVER

Steering Wheel

1шт.

8

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

9

84296756

STEERING COLUMN,Telescopic

1шт.

10

84219536

SCREW,Hex, M10 x 1.25 x 28mm

Steering

1шт.

11

47389390

DISC,18mm ID x 50mm OD x 3mm Thk

1шт.

12

47389397

SPRING

Steering Column

2шт.

13

47389395

SCREW,Hex, M10 x 1.25 x 30mm

1шт.

14

84379531

SPACER,8.48mm ID x 12.7mm OD x 8mm L

1шт.
