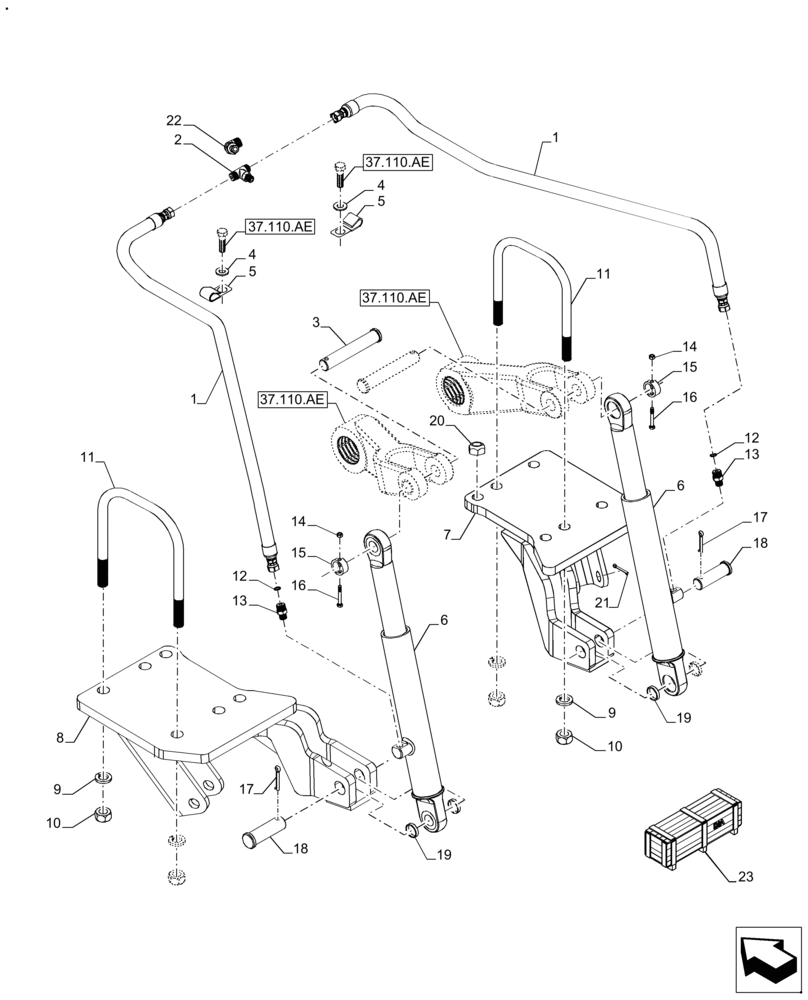

Запчасти Case IH FARMALL 120A (37.120.AF[03]) - VAR - 339784, 719452 - DOUBLE CYLINDER, HYDRAULIC LIFT (3266 KG) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

82988176

HOSE,9.53mm ID x 1200mm L

2шт.

2

83993406

TEE

Assy. Hidraulic Lift Control to Assist Ram

1шт.

3

82980688

PIN,25.25mm OD x 154.5mm L

2шт.

4

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

5

85700737

CLAMP,6.86mm ID, 14.99mm Bolt Hole, J Type

2шт.

6

82005025

LIFT CYLINDER

2шт.

7

47803828

SUPPORT

Assy. R/C-Stab RH

1шт.

8

47828488

SUPPORT

Assy. R/C-Stab LH

1шт.

9

81815409

LOCK WASHER,5/8"

4шт.

10

81823240

NUT,5/8"-18, G5

4шт.

11

83919385

BOLT,U, 5/8" - 18 x 8"

2шт.

12

82981952

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

13

81863515

HYD CONNECTOR,M14 x 11/16"-16 ORS

2шт.

14

81851140

NUT,M6 x 1, Cl 8

2шт.

15

82001205

SPACER,25.4mm ID x 34mm OD x 14mm L

2шт.

16

82880929

BOLT,Hex, M6 x 1 x 45mm, Gr 8.8

2шт.

17

83980608

COTTER PIN,3/16" x 1 3/4" L

2шт.

18

83993409

PIN,25.2mm OD x 85.5mm L

2шт.

19

83993405

SPACER,M26 ID x 30 x 6 Thk

4шт.

20

82000720

NUT,3/4"-10, GC

4шт.

21

81815888

COTTER PIN,5/32" x 1 1/4"

1шт.

22

83961741

90 ELBOW,11/16"-16 ORFS x 9/16"-18 ORB

1шт.

23

47805474

DIA KIT, TRACTOR

RH Single Auxiliary 3 PT Hitch, Incl 1 - 7, 9 - 22

1шт.
