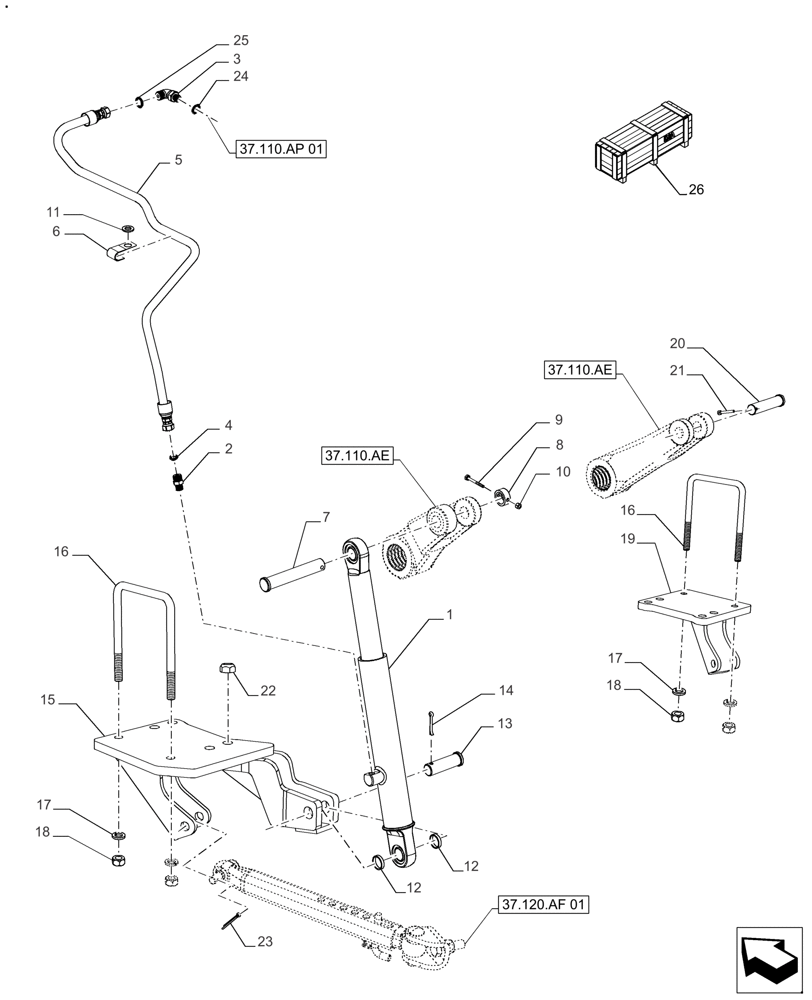

Запчасти Case IH FARMALL 120A (37.120.AF[02]) - VAR - 336784, 339784, 719451 - CYLINDER, HYDRAULIC LIFT (2449 KG) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

82005025

LIFT CYLINDER

1шт.

2

81863515

HYD CONNECTOR,M14 x 11/16"-16 ORS

1шт.

3

83961741

90 ELBOW,11/16"-16 ORFS x 9/16"-18 ORB

1шт.

4

82981952

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

82988176

HOSE,9.53mm ID x 1200mm L

1шт.

6

85700737

CLAMP,6.86mm ID, 14.99mm Bolt Hole, J Type

1шт.

7

82980688

PIN,25.25mm OD x 154.5mm L

1шт.

8

82001205

SPACER,25.4mm ID x 34mm OD x 14mm L

1шт.

9

82880929

BOLT,Hex, M6 x 1 x 45mm, Gr 8.8

1шт.

10

81851140

NUT,M6 x 1, Cl 8

1шт.

11

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

12

83993405

SPACER,M26 ID x 30 x 6 Thk

2шт.

13

83993409

PIN,25.2mm OD x 85.5mm L

1шт.

14

83980608

COTTER PIN,3/16" x 1 3/4" L

1шт.

15

47828488

SUPPORT

Bracket LH

1шт.

16

83919385

BOLT,U, 5/8" - 18 x 8"

2шт.

17

81815409

LOCK WASHER,5/8"

4шт.

18

81823240

NUT,5/8"-18, G5

4шт.

19

47828259

BRACKET

Bracket RH

1шт.

20

81873405

PIN,28.87mm OD x 120.93mm L

1шт.

21

81808446

COTTER PIN,3/16" x 1 1/2"

1шт.

22

82000720

NUT,3/4"-10, GC

4шт.

23

81815888

COTTER PIN,5/32" x 1 1/4"

1шт.

24

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

47805472

DIA KIT, TRACTOR

Single Auxiliary 3 PT Hitch, Incl 1 - 18, 22 - 25

1шт.
