Запчасти Case IH FARMALL 120A (37.110.AE) - VAR - 336784, 339784, 390344 - HYDRAULIC, LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

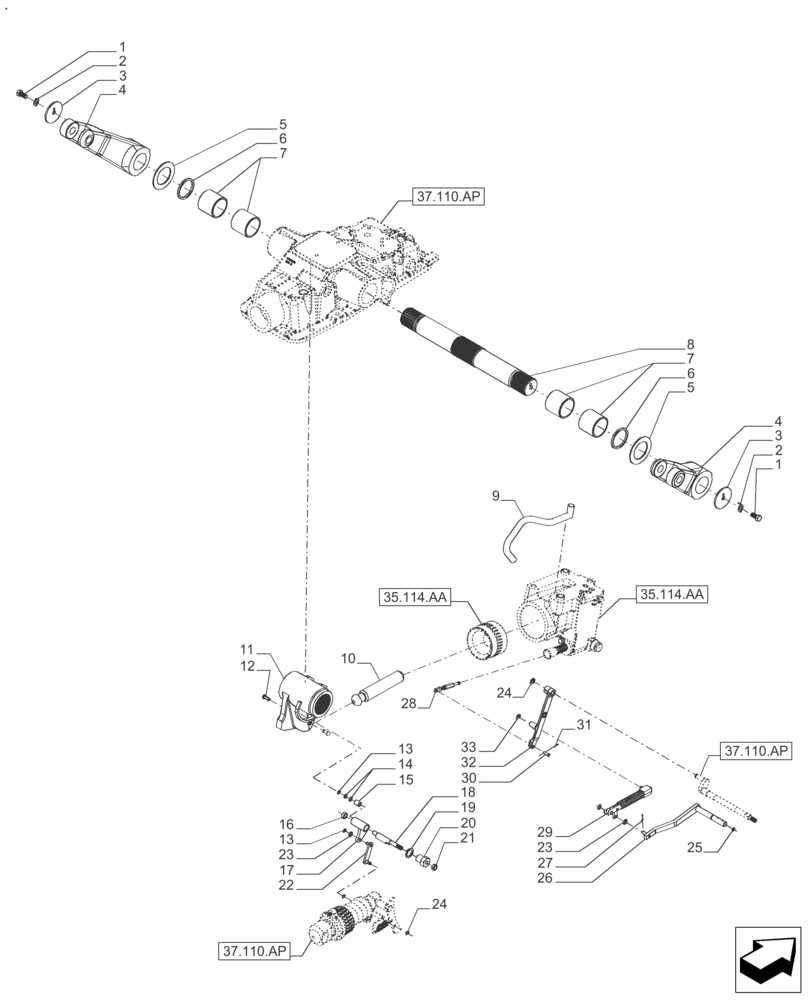

Схема запчастей Case IH FARMALL 120A - (37.110.AE) - VAR - 336784, 339784, 390344 - HYDRAULIC, LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.110.ap
13
5
9
1
32
37.110.ap
12
15
14
13
35.114.aa
24
11
27
33
18
4
3
8
7
2
21
26
4
20
17
23
5
22
10
25
23
24
37.110.ap
6
3
30
28
2
6
16
19
29
31
7
1
35.114.aa

Артикул

Название

Примечание

Количество

1

81821241

BOLT,Hex, 1/2" - 20 x 1", Gr 5

2шт.

2

81801619

LOCK WASHER,13.08mm ID x 22.35mm OD x 1.42mm Thk

2шт.

3

81810123

WASHER,12.95mm ID x 76.2mm OD x 4.83mm Thk

2шт.

4

82026659

ARM

Hydraulic Lift

2шт.

5

83955354

WASHER,63.75mm ID x 98.55mm OD x 3.3mm Thk

2шт.

6

83952647

SEAL

2.50 ID x .20 O RG Rect Sect

2шт.

7

83952851

BUSHING,63.58mm ID x 73.08mm OD x 64.59mm L

4шт.

8

83952650

SHAFT,47 T/52 T

1шт.

9

82987568

HYD TUBE

Hydraulic Lift Sump Return

1шт.

10

81817891

ROD

Hydraulic Lift

1шт.

11

83991263

ARM

Assy. Hydraulic Lift

1шт.

12

81821371

PIN,8.41mm OD x 25.91mm L

2шт.

13

83919663

CIRCLIP,5/16"

4шт.

14

83925010

SHIM,10.4mm ID x 13.7mm OD x 0.84mm Thk

2шт.

15

83925009

ROLLER

Hydraulic Lift

1шт.

16

83925047

SPACER,12.7mm ID x 19mm OD x 7.1mm L

1шт.

17

83929132

ARM

Link Assy. Hydraulic Lift Position Control

1шт.

18

83946334

SHAFT

Hydraulic Lift Position Control Pivot

1шт.

19

83925012

LOCK WASHER,.90" x 1 1/4" x .102" Thk

1шт.

20

83925049

SLEEVE,Hex, 7/8" - 14 x 1"

1шт.

21

83983435

JAM NUT,7/16"-14, G2

1шт.

22

83925043

LINK

Assy. Hydraulic Lift Position Control

1шт.

23

81824026

SPACER,.35" x .62" x .027/.033" Thk

3шт.

24

81822628

CIRCLIP,1/2"

1шт.

25

83416162

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

26

83991259

ARM

Lift Assy. Selector

1шт.

27

81813879

COTTER PIN,1/16" x 3/4"

1шт.

28

82854749

CONTROL UNIT

Turnbuckle Assy. Hydraulic Lift Control Valve

1шт.

29

83957371

LIFT LINK

Hydraulic System Selector

1шт.

30

81873225

PIN,1/4" x 49/64" L

1шт.

31

81454228

COTTER PIN,1/16" x .50" L

1шт.

32

83957376

LEVER

Hydraulic Lift Valve Actuating

1шт.

33

83960274

CIRCLIP,3/8"

1шт.

Выбрано товаров: 33
