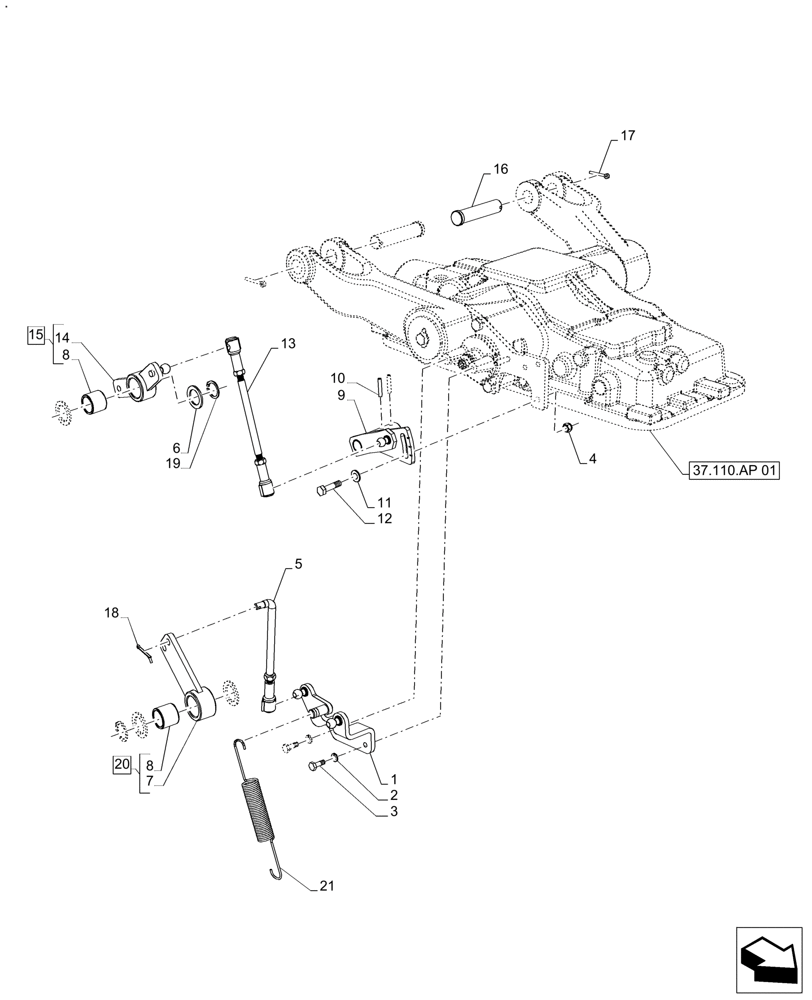

Запчасти Case IH FARMALL 120A (37.108.AE[01]) - VAR - 336784, 339784, 390344 - LIFT LINK, ROD, EXTERNAL CONTROL (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47836697

CAM

Assy. Lift Hydraulic

1шт.

2

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

2шт.

3

81821509

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

4

81819427

LOCK NUT,5/16"-18

1шт.

5

47676437

ROD

Tie Rod Assy. Lift Control

1шт.

6

140098

WASHER

Low Carbon Steel, 22mm ID x 32mm OD

4шт.

7

NSS

NOT SOLD SEPARAT

Lever, Cam Pivot, Incl in 20

1шт.

8

47908960

BUSHING

LO, HPL Control

1шт.

9

47595477

LEVER

Assy. Lower Draft

1шт.

10

83926670

COILED PIN,3/16" x 1 1/8"

2шт.

11

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

1шт.

12

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

13

47601962

ROD

Tie Rod Assy. HPL Control

1шт.

14

NSS

NOT SOLD SEPARAT

Cam Assy. Pivot Draft, Incl in 15

1шт.

15

47679457

CAM

Incl 8, 14

1шт.

16

81873405

PIN,28.87mm OD x 120.93mm L

2шт.

17

81808446

COTTER PIN,3/16" x 1 1/2"

2шт.

18

85700711

COTTER PIN,3/32" x 1"

1шт.

19

11066976

SNAP RING,M21, Ext

2шт.

20

47676550

LEVER

Cam Pivot, Incl 7, 8

1шт.

21

83949283

SPRING

Hydraulic Lift Control Lever

1шт.
