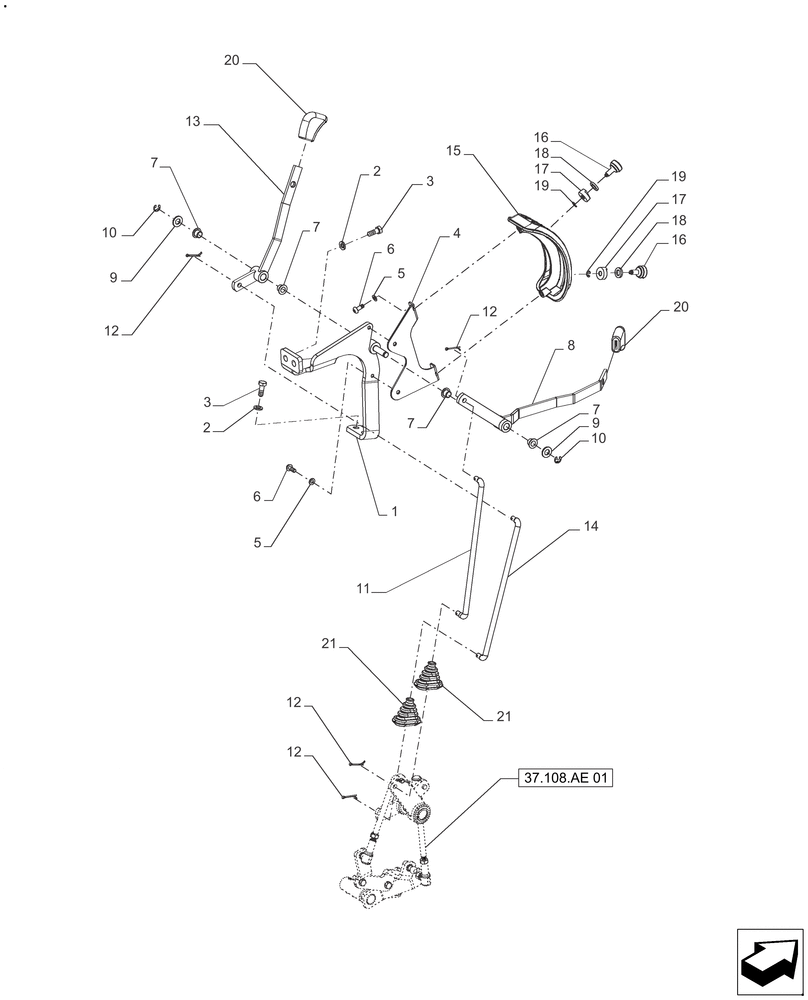

Запчасти Case IH FARMALL 120A (37.106.AG) - VAR - 390344, 336784, 339784 - LIFT CONTROL, LEVER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47675754

BRACKET

Assy. Hydraulic Lift

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

3

16043531

SCREW,Hex, M8 x 1.25 x 22mm, Cl 10.9, Full Thd

4шт.

4

47677220

BRACKET

Sector Graduated

1шт.

5

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

6

84187812

SCREW,Torx, Pan HD, M6 x 16mm, Cl 4.8

4шт.

7

84487137

BUSHING,10mm ID x 12mm OD x 10mm L

4шт.

8

47676421

CONTROL

1шт.

9

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

10

11087974

CIRCLIP,Ext., M8, DAC

2шт.

11

47676558

ROD

1шт.

12

85700711

COTTER PIN,3/32" x 1"

4шт.

13

47679467

LEVER

Cam Pivot

1шт.

14

47676560

ROD

Draft Control

1шт.

15

84346027

SECTOR

Graduated

1шт.

16

47133460

KNOB

With Pin Assy.

2шт.

17

47133761

STOP

Hydraulic Lift Control Lever

2шт.

18

5108290

WASHER,10.5mm ID x 18mm OD x 3mm Thk

2шт.

19

11087776

CIRCLIP,Ext., M6, BLO

2шт.

20

5189193

KNOB

For Lever Black

2шт.

21

47715977

BOOT

Hydrulic Lift

2шт.
