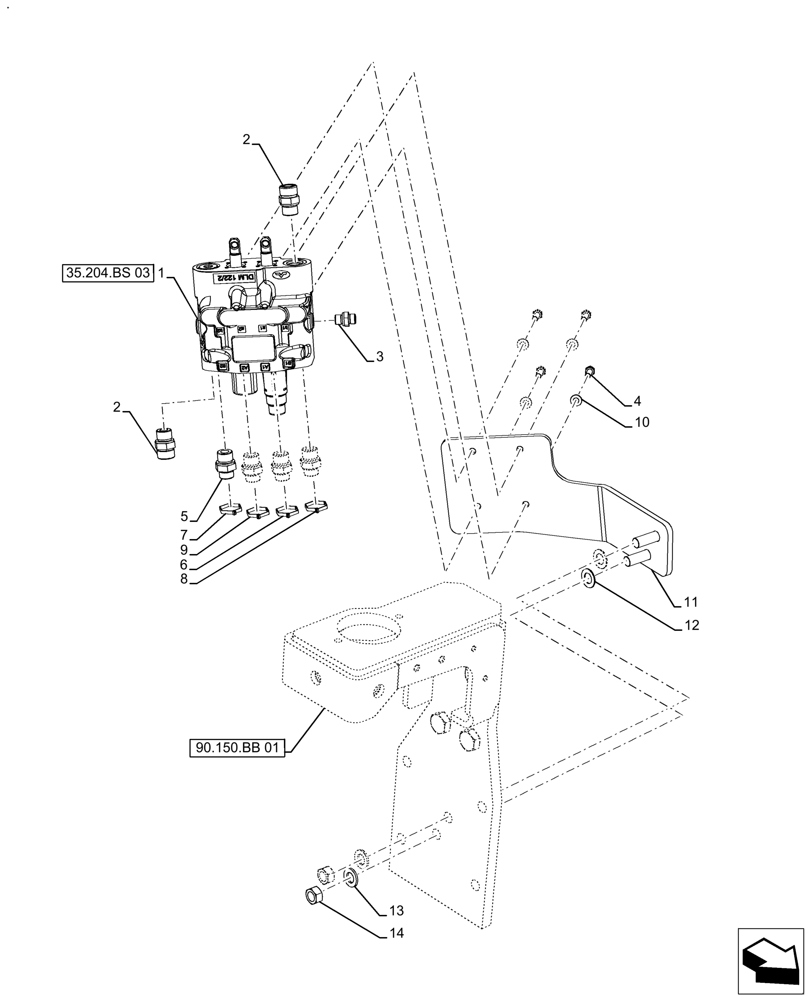

Запчасти Case IH FARMALL 120A (35.204.BS[01]) - VAR - 330196 - MID MOUNT VALVE KIT, VALVE (35) - HYDRAULIC SYSTEMS

1

87696631

INCHING VALVE

1шт.

2

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

2шт.

3

87661868

HYD CONNECTOR,M14 x 1.5 x 29.5mm L

STR -5 ORFS M14 x 1.5mm ORB

1шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

5

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

4шт.

6

87407797

FASTENER

Cable Tie, 7.4 x 0.19 IN, Nylon, Yellow

1шт.

7

87407798

FASTENER

Cable Tie, 7.4 x 0.19 IN, Nylon, Red

1шт.

8

87407803

FASTENER

Cable Tie, 7.4 x 0.19 IN, Nylon, Green

1шт.

9

87585307

FASTENER

Cable Tie, 7.4 x 0.19 IN, Nylon, Blue

1шт.

10

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

4шт.

11

47659977

BRACKET

1шт.

12

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

13

10572179

LOCK WASHER,M16

2шт.

14

392530

NUT,M16, Cl 10

2шт.
