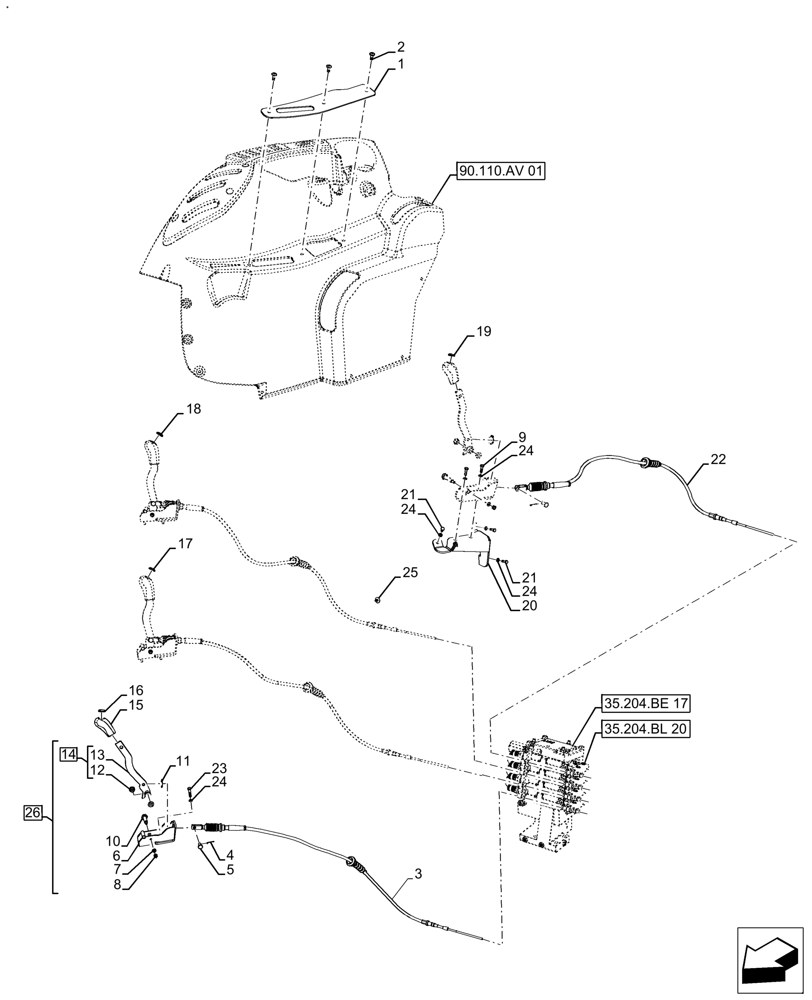

Запчасти Case IH FARMALL 120A (35.204.BL[17]) - VAR - 429474 - 4 REMOTE CONTROL VALVES, CONTROL LEVER, W/O CAB (35) - HYDRAULIC SYSTEMS

1

47644772

COVER

Remote 4 Valve

1шт.

2

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

3шт.

3

48011030

CABLE

Assy. Remote Control Valve

3шт.

4

81813879

COTTER PIN,1/16" x 3/4"

4шт.

5

385818

CLEVIS PIN,M8 x 20

4шт.

6

47687173

SUPPORT

Assy. Lever, Remote Valve

1шт.

7

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

8

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

10

84487136

PIN,M6 x 1, 49.5mm L

1шт.

11

81865873

CLIP,19.40mm D

Hydraulic Remote Control Valve

4шт.

12

84487137

BUSHING,10mm ID x 12mm OD x 10mm L

2шт.

13

47864993

LEVER

Assy. Remote Valve

1шт.

14

47861016

LEVER

Assy. With Bushing, Incl 12, 13

1шт.

15

47056482

KNOB

Shift

4шт.

16

87698505

DATA PLAQUE

Green

1шт.

17

87698506

DATA PLAQUE

Blue

1шт.

18

87698516

DATA PLAQUE

Ginger

1шт.

19

87698517

DATA PLAQUE

Black

1шт.

20

47644768

SUPPORT

Assy. Remote 4 Valve

1шт.

21

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

22

48011031

CABLE

Assy. Remote Control Valve

1шт.

23

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

24

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

11шт.

25

83951873

PLUG

Back Window Frame Assy. Lower

1шт.

26

47861017

SUPPORT

Support, Remote Valve, Incl 6 - 8, 10 - 14

4шт.
