Запчасти Case IH FARMALL 120A (35.204.BL[10]) - VAR - 334195 - 3 REMOTE CONTROL VALVES, CONTROL LEVER, W/O CAB (35) - HYDRAULIC SYSTEMS

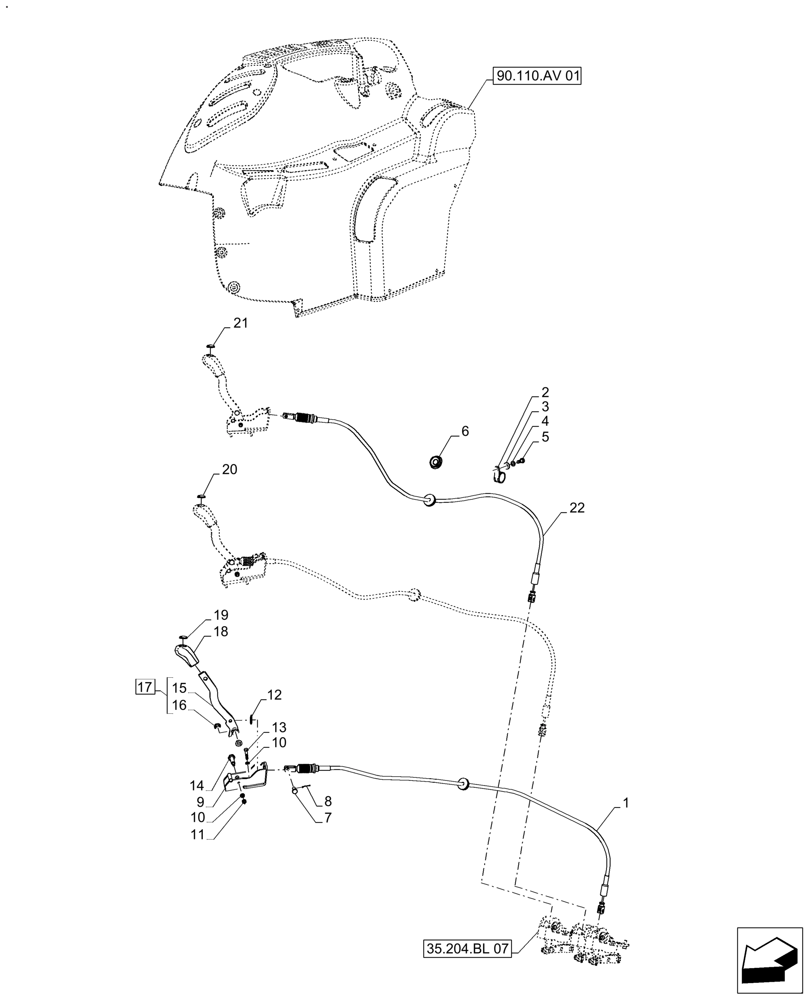

Схема запчастей Case IH FARMALL 120A - (35.204.BL[10]) - VAR - 334195 - 3 REMOTE CONTROL VALVES, CONTROL LEVER, W/O CAB (35) - HYDRAULIC SYSTEMS
90.110.av 01
13
22
16
10
4
21
3
6
19
7
10
14
17
20
5
15
2
1
9
18
11
12
8
35.204.bl 07

Артикул

Название

Примечание

Количество

1

48120752

Assy. Remote Control Valve

CABLE

2шт.

2

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

Closed 30 mm Insul M8 Bolt

1шт.

3

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

6

81862738

PLUG,M38 x 28 x 5mm

1шт.

7

385818

CLEVIS PIN,M8 x 20

3шт.

8

81813879

COTTER PIN,1/16" x 3/4"

3шт.

9

47687173

SUPPORT

Assy. Lever, Remote Valve

3шт.

10

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

9шт.

11

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

12

81865873

CLIP,19.40mm D

Hydraulic Remote Control Valve Cable Retaining

3шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

14

84487136

PIN,M6 x 1, 49.5mm L

3шт.

15

47864993

LEVER

Assy. Remote Valve

1шт.

16

84487137

BUSHING,10mm ID x 12mm OD x 10mm L

2шт.

17

47861016

LEVER

Incl 15, 16

3шт.

18

47056482

KNOB

3шт.

19

87698505

DATA PLAQUE

Green

1шт.

20

87698506

DATA PLAQUE

Blue

1шт.

21

87698516

DATA PLAQUE

Ginger

1шт.

22

48120755

Assy. Hydraulic Remote Control Valve

CABLE

1шт.

Выбрано товаров: 22
