(35.204.BL[08]) - VAR - 336107 - 4 REMOTE CONTROL VALVES, ACTUATOR

Запчасти Case IH FARMALL 120A (35.204.BL[08]) - VAR - 336107 - 4 REMOTE CONTROL VALVES, ACTUATOR (35) - HYDRAULIC SYSTEMS

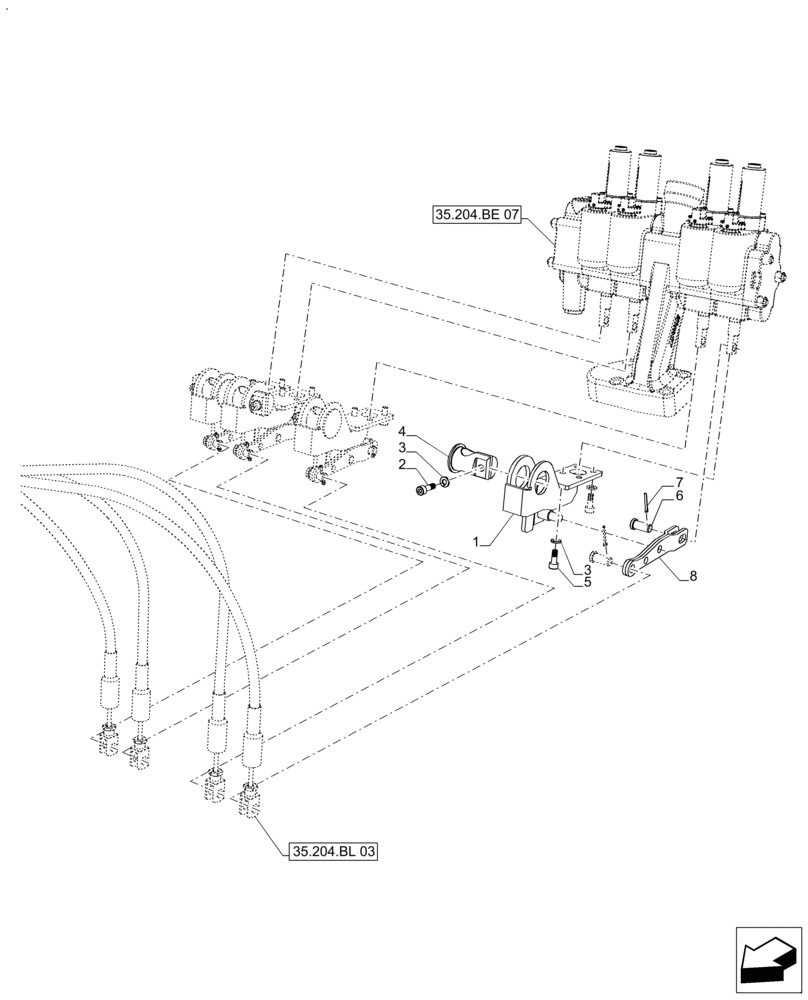

Схема запчастей Case IH FARMALL 120A - (35.204.BL[08]) - VAR - 336107 - 4 REMOTE CONTROL VALVES, ACTUATOR (35) - HYDRAULIC SYSTEMS
2
1
35.204.bl 03
6
8
3
7
35.204.be 07
3
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47792122

SUPPORT

Assy. Remote Valve

4шт.

2

14305331

HEX SOC SCREW,M6 x 20mm, Cl 10.9, Full Thd

4шт.

3

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

12шт.

4

47600116

PIN

Groove

4шт.

5

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

8шт.

6

86637937

CLEVIS PIN,3/8" x 11/16"

8шт.

7

81813880

COTTER PIN,3/32" x 3/4"

8шт.

8

47792131

CAM

4шт.
