Запчасти Case IH FARMALL 120A (35.204.BL[04]) - VAR - 336107 - 4 REMOTE CONTROL VALVES, CONTROL LEVER, W/O CAB (35) - HYDRAULIC SYSTEMS

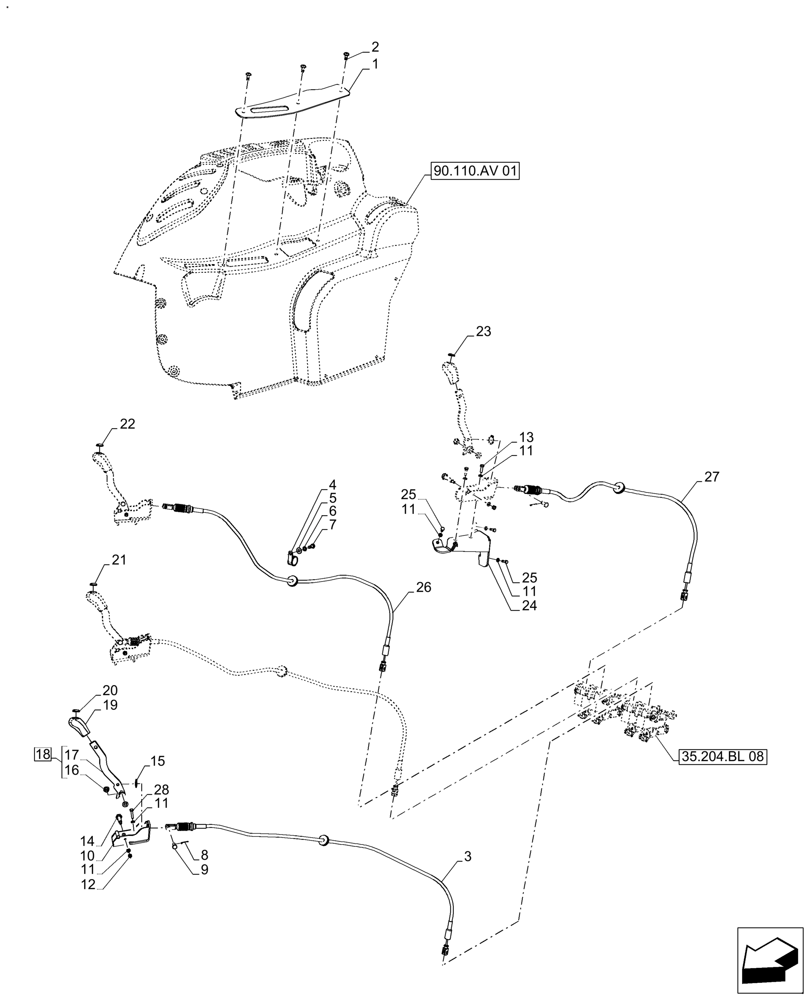

Схема запчастей Case IH FARMALL 120A - (35.204.BL[04]) - VAR - 336107 - 4 REMOTE CONTROL VALVES, CONTROL LEVER, W/O CAB (35) - HYDRAULIC SYSTEMS
90.110.av 01
11
22
13
26
12
27
11
28
16
11
19
25
5
9
15
7
4
20
11
21
24
10
1
25
2
6
14
18
8
17
11
35.204.bl 08
3
23

Артикул

Название

Примечание

Количество

1

47644772

COVER

Remote 4 Valves

1шт.

2

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

3шт.

3

48120752

Assy. Remote Control Valve

CABLE

2шт.

4

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

1шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

6

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

8

81813879

COTTER PIN,1/16" x 3/4"

4шт.

9

385818

CLEVIS PIN,M8 x 20

4шт.

10

47687173

SUPPORT

Assy. Lever, Remote Valve

4шт.

11

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

15шт.

12

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

14

84487136

PIN,M6 x 1, 49.5mm L

4шт.

15

81865873

CLIP,19.40mm D

4шт.

16

84487137

BUSHING,10mm ID x 12mm OD x 10mm L

2шт.

17

47864993

LEVER

Assy. Remote Valve

1шт.

18

47861016

LEVER

Assy. With Bushing, Incl 16, 17

4шт.

19

47056482

KNOB

4шт.

20

87698505

DATA PLAQUE

Green

1шт.

21

87698506

DATA PLAQUE

Blue

1шт.

22

87698516

DATA PLAQUE

Ginger

1шт.

23

87698517

DATA PLAQUE

Black

1шт.

24

47644768

SUPPORT

1шт.

25

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

26

48120755

Assy. Hydraulic Remote Control Valve

CABLE

1шт.

27

48120757

Assy. Remote Control Valve

CABLE

1шт.

28

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

Выбрано товаров: 28
