Запчасти Case IH FARMALL 120A (35.204.BJ[02]) - VAR - 429472, 429473, 429474 - REMOTE CONTROL VALVE, HOSES (35) - HYDRAULIC SYSTEMS

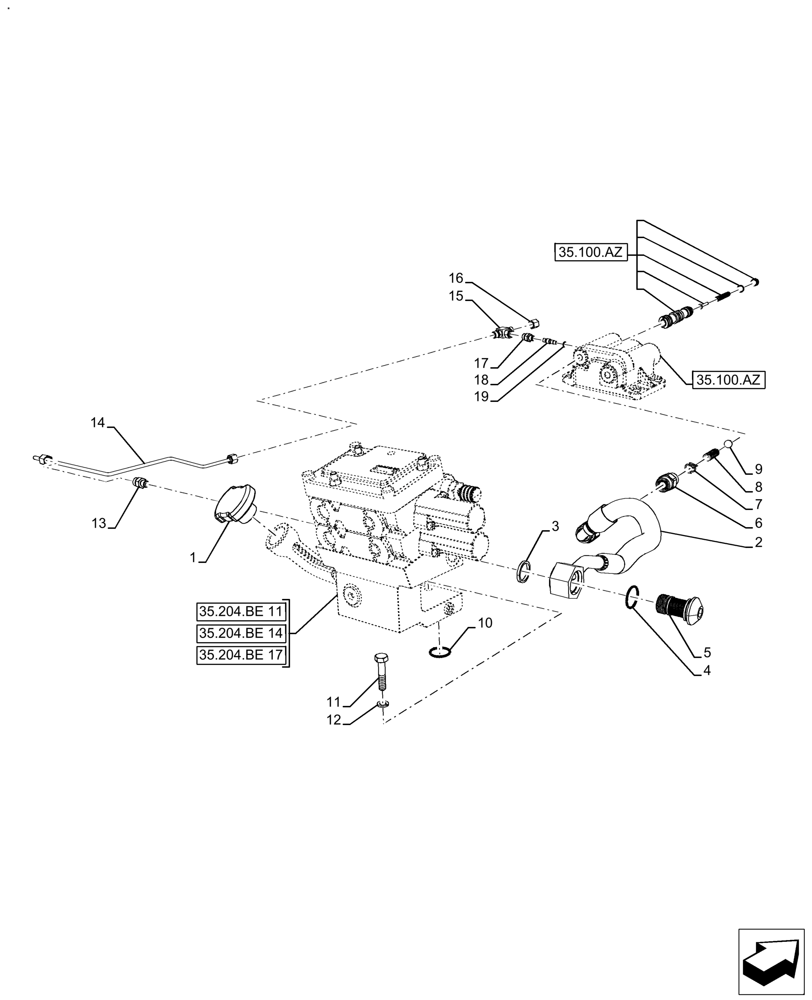

Схема запчастей Case IH FARMALL 120A - (35.204.BJ[02]) - VAR - 429472, 429473, 429474 - REMOTE CONTROL VALVE, HOSES (35) - HYDRAULIC SYSTEMS
35.204.be 14
2
8
13
18
12
19
14
9
6
3
15
10
4
17
7
16
5
1
11
35.204.be 11
35.100.az
35.100.az
35.204.be 17

Артикул

Название

Примечание

Количество

1

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

2

47887124

TUBE

Manifold, Hydraulic Assy. Suction Inlet

1шт.

3

82982927

OIL SEAL,22.35mm ID x 26.98mm OD x 3.17mm Thk

1шт.

4

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

73335070

BANJO BOLT

1шт.

6

47651589

FITTING

Connector, Hydraulic Assy. Special

1шт.

7

83953244

STOP

Hydraulic Lift Cylinder Valve Ball

1шт.

8

83946314

SPRING

Remote Control Unload Valve Check Ball Guide

1шт.

9

81820737

BALL,9/16"

1шт.

10

9626940

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1шт.

11

47538137

BOLT

M10 x 1.25 x 50 Full 8.8 Geo Din HD

4шт.

12

85700672

LOCK WASHER,M10

4шт.

13

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1шт.

14

47903876

TUBE

Tube, Hydraulic, LS

1шт.

15

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

16

87668376

CAP,9/16"-18 Inch THD

ORFS 9/16" - 18 6 OR 8mm Tube

1шт.

17

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1шт.

18

83925042

PLUG

1шт.

19

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Выбрано товаров: 19
