(35.204.BE[19]) - VAR - 429474 - 4 REMOTE CONTROL VALVES

Запчасти Case IH FARMALL 120A (35.204.BE[19]) - VAR - 429474 - 4 REMOTE CONTROL VALVES (35) - HYDRAULIC SYSTEMS

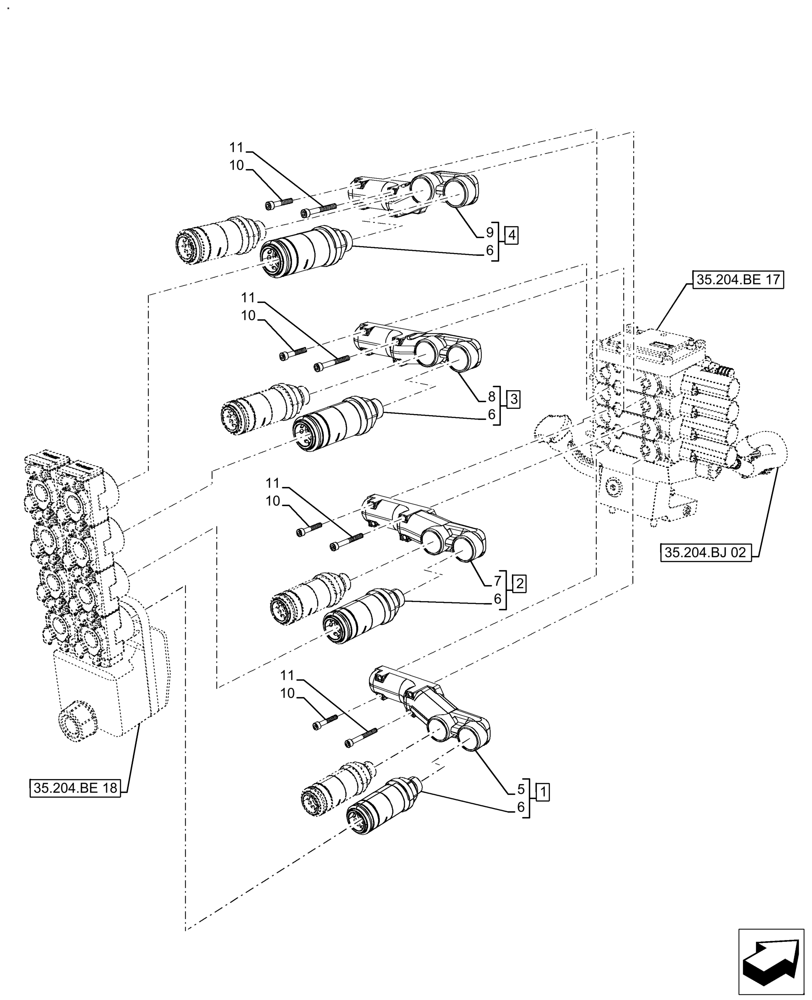

Схема запчастей Case IH FARMALL 120A - (35.204.BE[19]) - VAR - 429474 - 4 REMOTE CONTROL VALVES (35) - HYDRAULIC SYSTEMS
35.204.be 18
10
9
11
4
10
11
6
7
6
2
11
6
3
6
8
11
10
5
1
10
35.204.bj 02
35.204.be 17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87381958

QUICK MALE COUPLING

Incl 5, 6

1шт.

2

87381963

QUICK MALE COUPLING

Incl 6, 7

1шт.

3

87381964

QUICK MALE COUPLING

Incl 6, 8

1шт.

4

87381965

QUICK MALE COUPLING

Incl 6, 9

1шт.

5

47123058

HOLDER

1шт.

6

47370116

COUPLING

2шт.

7

47123060

Support, Quick Couplers

1шт.

8

47123062

Support, Quick Couplers

1шт.

9

47123064

Support, Quick Couplers

1шт.

10

47940507

SCREW

Screw, Hex Soc, M6 x 35 12.9 DAC

8шт.

11

47940518

SCREW

Screw, Hex Soc, M6 x 50 12.9 DAC

8шт.
