Запчасти Case IH FARMALL 120A (35.204.BE[11]) - VAR - 429472 - 2 REMOTE CONTROL VALVES (35) - HYDRAULIC SYSTEMS

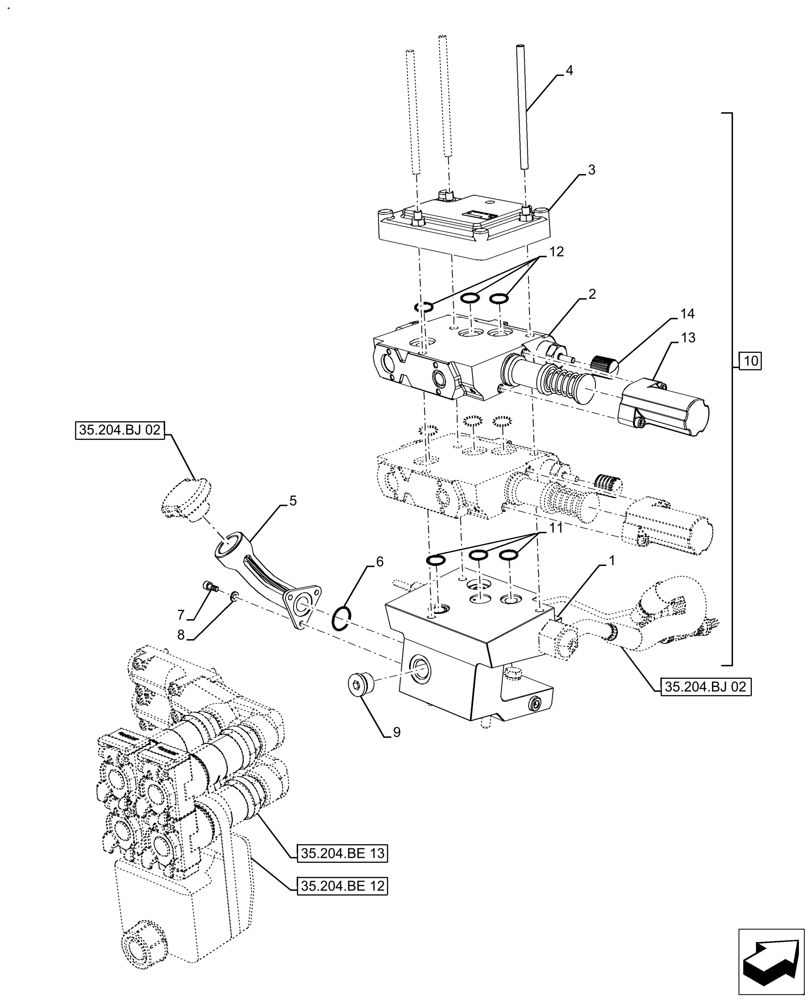

Схема запчастей Case IH FARMALL 120A - (35.204.BE[11]) - VAR - 429472 - 2 REMOTE CONTROL VALVES (35) - HYDRAULIC SYSTEMS
35.204.be 12
12
9
14
6
13
7
10
3
1
2
8
5
11
4
35.204.bj 02
35.204.bj 02
35.204.be 13

Артикул

Название

Примечание

Количество

1

47922868

Plate, Base, Inlet

BASE PLATE

1шт.

2

47922869

VALVE

Valve Section

2шт.

3

47922870

Cover, Valve

1шт.

4

47922873

TIE-ROD

Tie Rod, For 2 Slices

3шт.

5

47887105

PIPE

Pipe, Filling

1шт.

6

9626940

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1шт.

7

47940512

SCREW

Screw, Hex Soc, M6 x 14 Full 12.9 DAC

3шт.

8

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

9

86625138

PLUG,7/18" - 14

1шт.

10

47891387

MANIFOLD VALVE

Valve, Remote Control Assy. Double, Incl 1 - 4, 11 - 14

1шт.

11

47781738

SEAL KIT

For Inlet Plate

1шт.

12

47665457

SEAL KIT

For Each Slice

2шт.

13

47665456

COVER

Kickout

2шт.

14

47665455

FLOW CONTROL VALVE

2шт.

Выбрано товаров: 14
