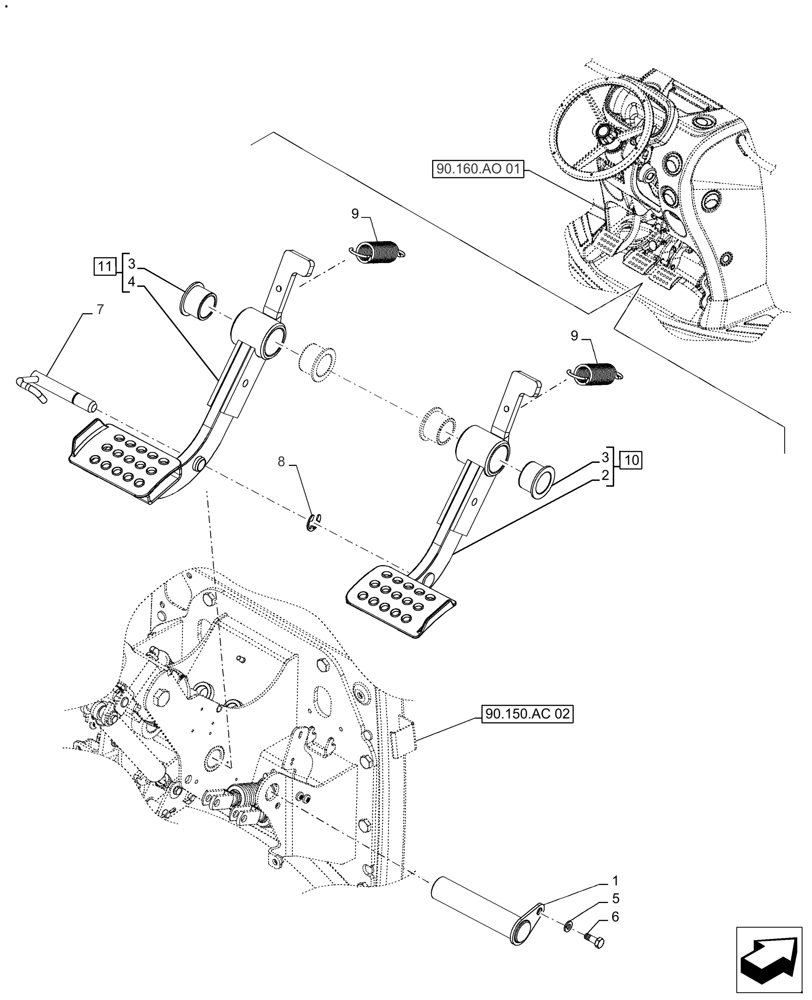

Запчасти Case IH FARMALL 120A (33.202.BN) - VAR - 390302 - BRAKE PACKAGE, PEDAL (33) - BRAKES & CONTROLS

1

47600231

SHAFT

Assy. Pedal Clutch

1шт.

2

NSS

NOT SOLD SEPARAT

Pedal Brake RH, Incl in 10

1шт.

3

5097550

BUSHING,25.4mm ID x 38mm OD x 22mm L

4шт.

4

NSS

NOT SOLD SEPARAT

Pedal Brake LH, Incl in 11

1шт.

5

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

7

87577521

PIN

Lock, Brake Pedals

1шт.

8

11088180

CIRCLIP,M11, Stainless

1шт.

9

5153180

SPRING,21mm OD x 84mm L

Extension, Brake Pedal

2шт.

10

48130430

Brake RH With Bushing, Incl 2, 3 (Qty 2)

PEDAL

1шт.

11

48130426

Brake LH With Bushing, Incl 4, 3 (Qty 2)

PEDAL

1шт.
