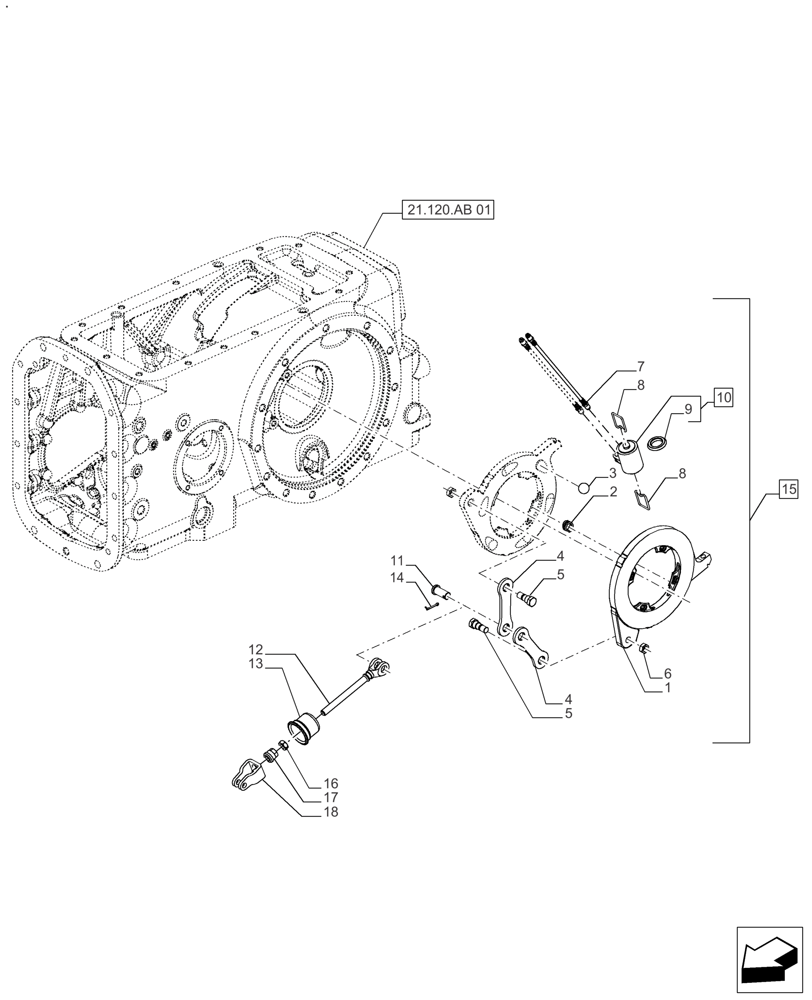

Запчасти Case IH FARMALL 120A (33.120.AC) - VAR - 390331, 330331 - BRAKE, ACTUATOR (33) - BRAKES & CONTROLS

1

81866495

ACTUATOR

Brake Assy. Rear Brake Disc

4шт.

2

81866505

SPRING

Rear Brake Actuator Disc Return

8шт.

3

81866502

BALL

Joint, Rear Brake Actuator Disc

12шт.

4

81866500

ROD

Connecting, Rear Brake Actuator - Pul

4шт.

5

81866497

SCREW,1/2" - 20 x 1 11/16"

4шт.

6

81866499

NUT,Hex, 1/2" - 20

Rear Brake Actuator

4шт.

7

81866483

HYDRAULIC HOSE,3.25mm ID x 298mm L

4шт.

8

81866482

SPRING

Rear Brake Piston

4шт.

9

82002070

SEAL,25mm ID x 35mm OD x 7mm Thk

2шт.

10

81866484

BRAKE

Incl 9

2шт.

11

83928668

CLEVIS PIN,15.88mm OD x 34.92mm L

2шт.

12

83972123

ROD

Brake Control

2шт.

13

82037652

SEAL,12mm ID x 57mm OD x 28mm Thk

Brake Pull Rod

2шт.

14

81808433

COTTER PIN,1/8" x 1"

2шт.

15

82860492

BRAKE DISC

Incl 1 - 11

2шт.

16

81822613

NUT

2шт.

17

81836755

NUT,1/2"-20

2шт.

18

81818163

CLEVIS

Brake Pull Rod

2шт.
