Запчасти Case IH FARMALL 120A (31.114.AI) - VAR - 390340, 330059, 330061 - PTO CLUTCH, VALVE (31) - IMPLEMENT POWER TAKE OFF

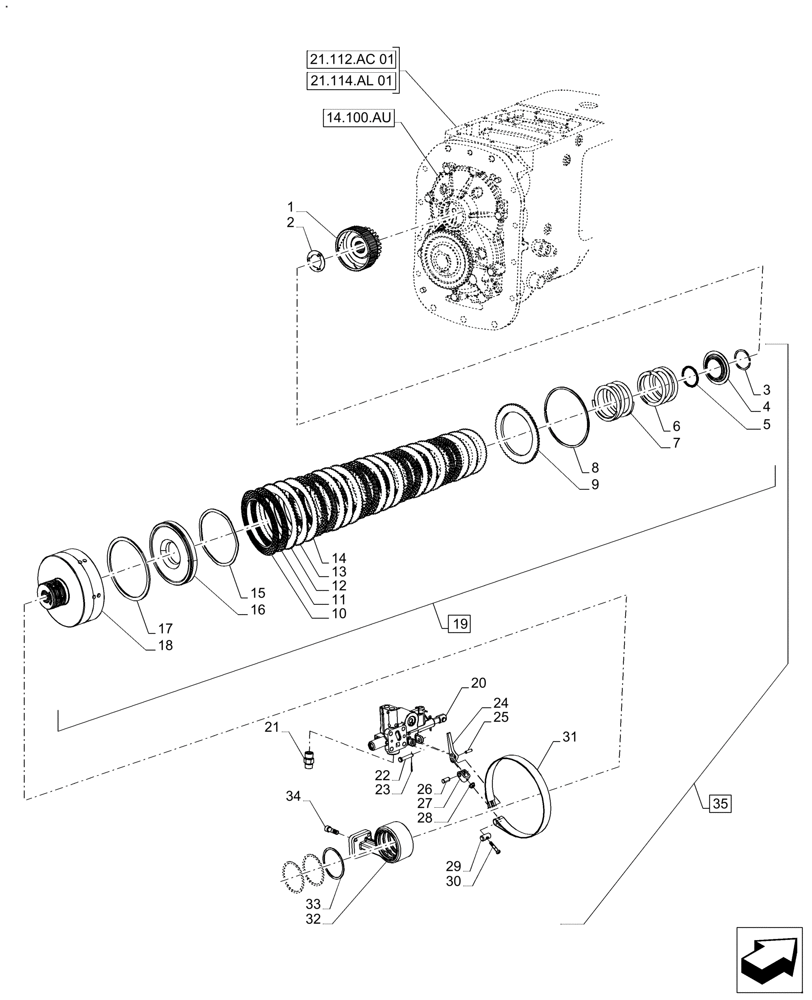

Схема запчастей Case IH FARMALL 120A - (31.114.AI) - VAR - 390340, 330059, 330061 - PTO CLUTCH, VALVE (31) - IMPLEMENT POWER TAKE OFF
21.112.ac 01
27
1
5
13
35
19
11
18
3
33
10
31
29
8
34
17
30
24
20
25
15
23
12
21
26
28
2
7
4
14
9
16
6
32
22
21.114.al 01
14.100.au

Артикул

Название

Примечание

Количество

1

81865535

HUB

PTO Drive Clutch

1шт.

2

81801955

THRUST WASHER,33.53mm ID x 53.85mm OD x 1.6mm Thk

1шт.

3

81808602

SNAP RING,1.97" ID

1шт.

4

81804877

SEAT/SLOT

1шт.

5

83416992

O-RING,3.63mm Thk x 53.11mm ID

1шт.

6

83935173

SPRING

PTO Drive Clutch Piston

1шт.

7

81804819

SPRING

Trans. Clutch Piston

1шт.

8

81805114

SNAP RING,6.343" OD

1шт.

9

83952253

PLATE

Trans. Dual Power Drive

1шт.

10

47721079

PLATE

Assy. PTO Clutch

5шт.

11

81870755

CLUTCH PLATE,106.55mm ID x 148.84mm OD x 2.34mm Thk

5шт.

12

87306051

STEEL PLATE

PTO Drive Clutch

5шт.

13

81865601

PLATE

PTO Drive Clutch

5шт.

14

81808607

CLUTCH PLATE

5шт.

15

81833907

SPRING

PTO Drive Clutch Feathering

1шт.

16

81876155

PISTON

1шт.

17

81805281

OIL SEAL,5.32" x 5.875" x .125" Thk

1шт.

18

83924795

HOUSING

PTO Drive Clutch

1шт.

19

47721092

CLUTCH & DISC ASSY

Incl 3 - 18

1шт.

20

82989498

HYDRAULIC VALVE

Mechanical

1шт.

20

73337532

HYDRAULIC VALVE

Powershuttle

1шт.

21

83983292

ADAPTER,13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

22

83902339

CLEVIS PIN,1/4" x 1 9/32"

1шт.

23

81454228

COTTER PIN,1/16" x .50" L

1шт.

24

81819791

ARM

PTO Drive Clutch

1шт.

25

81820593

PIN,3/16" x 5/8"

1шт.

26

81874974

PIN,5/16" x 5/8" L

1шт.

27

83956645

CLEVIS,#10 - 32

1шт.

28

81819313

NUT,#10-32

1шт.

29

81819797

ANCHOR,11.18mm OD x 22.35mm L

1шт.

30

83905941

SCREW,#10 - 24 x 1"

1шт.

31

47124034

BRAKE BAND,0.8mm Thk

1шт.

32

81826819

SUPPORT

PTO Drive Clutch Valve

1шт.

33

81809513

OIL SEAL,Split, 55.24mm ID x 60.33mm OD x 3.15mm Thk

3шт.

34

81823507

SCREW,5/16" - 18 x 1", Gr 8

4шт.

35

73337118

CLUTCH

Mechanical, Incl 3 - 20, 22 - 34

1шт.

35

73336954

CLUTCH

Powershutle, Incl 3 - 20, 22 - 34

1шт.

Выбрано товаров: 37
