(31.110.AI[02]) - VAR - 336939 - PTO 540 RPM, DRIVEN SHAFT

Запчасти Case IH FARMALL 120A (31.110.AI[02]) - VAR - 336939 - PTO 540 RPM, DRIVEN SHAFT (31) - IMPLEMENT POWER TAKE OFF

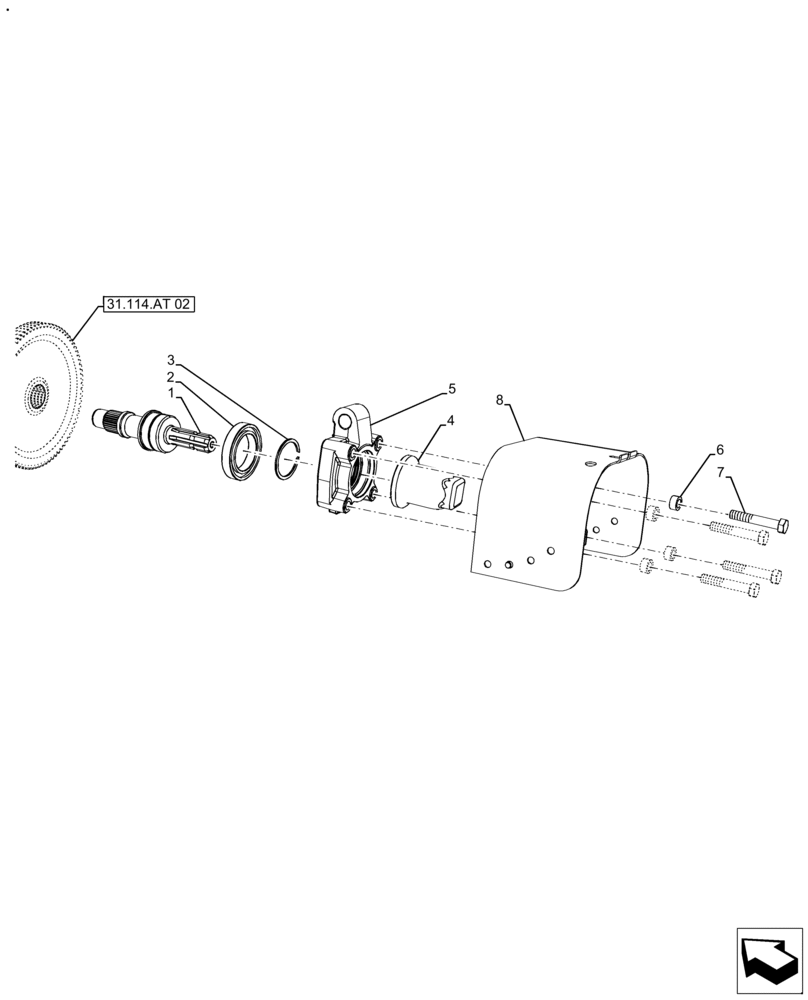

Схема запчастей Case IH FARMALL 120A - (31.110.AI[02]) - VAR - 336939 - PTO 540 RPM, DRIVEN SHAFT (31) - IMPLEMENT POWER TAKE OFF
8
6
7
2
5
4
3
1
31.114.at 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

83990490

PTO SHAFT

And Sleeve, Assy. (Lower)

1шт.

2

81827243

BEARING ASSY

1шт.

3

81819793

RING,2.78" ID

1шт.

4

47952294

Cap Cover Red Drive Gear Shaft

1шт.

5

82967666

FLANGE

Retainer Assy. Power Take Off Rear Lower Shaft Bearing

1шт.

6

82980540

SPACER,16.2mm ID x 25.4mm OD x 13mm L

4шт.

7

81821139

BOLT,Hex, 5/16" - 11 x 3 3/4", Gr 5

4шт.

8

82984970

GUARD

PTO Shaft

1шт.
