Запчасти Case IH FARMALL 120A (25.108.AG[01]) - VAR - 391292 - 4WD, FRONT AXLE SWIVEL HOUSING & STEER CYLINDER - STANDARD DUTY, AXLE REF. 339609 (25) - FRONT AXLE SYSTEM

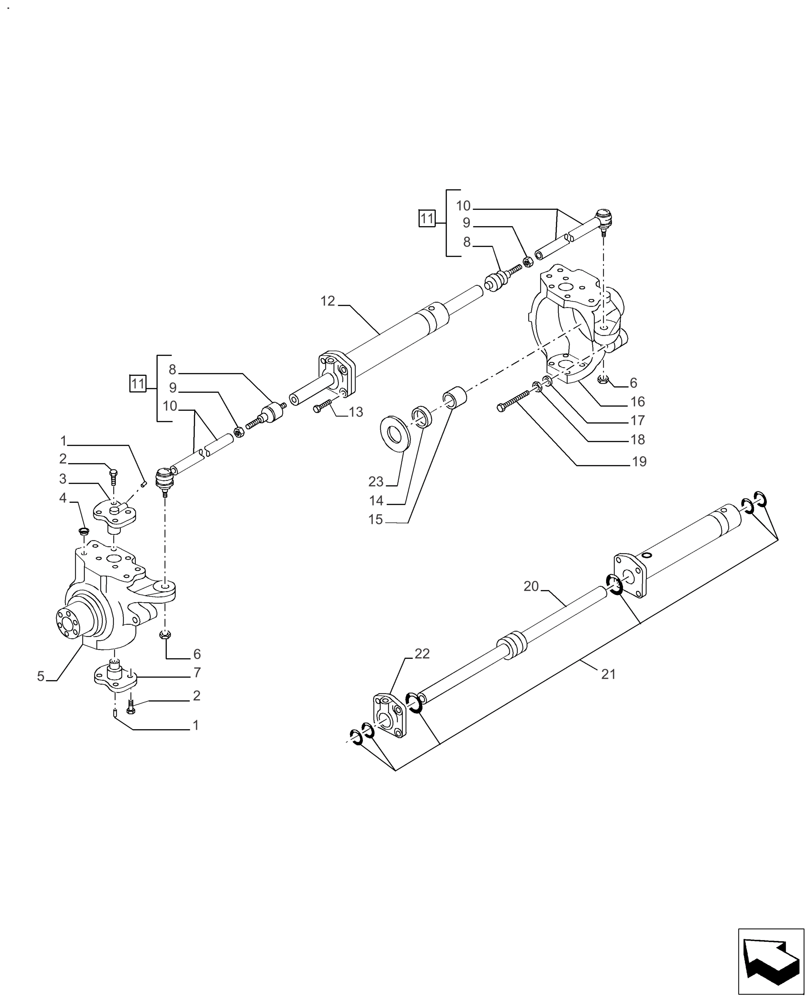

Схема запчастей Case IH FARMALL 120A - (25.108.AG[01]) - VAR - 391292 - 4WD, FRONT AXLE SWIVEL HOUSING & STEER CYLINDER - STANDARD DUTY, AXLE REF. 339609 (25) - FRONT AXLE SYSTEM
2
6
9
12
4
17
8
23
6
1
11
11
20
5
8
22
16
3
1
13
2
21
15
18
10
19
7
14
10
9

Артикул

Название

Примечание

Количество

1

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

x 1

4шт.

2

81867688

BOLT

M14 x 35

12шт.

3

82850291

PIN

King

2шт.

4

87685572

PLUG

D14.5

8шт.

5

CAR144468

STUB AXLE/STEERING S

Swivel Housing LH

1шт.

6

9968026

NUT,M20

x 1.5

2шт.

7

82850292

PIN

King

2шт.

8

CAR350878

BALL JOINT

2шт.

9

CAR070787

NUT

2шт.

10

CAR350003

TRACK ROD END

2шт.

11

CAR149765

STEERING TIE-ROD

Arm Assy. Incl 8 - 10

2шт.

12

83957755

STEERING CYLINDER

Incl 20 - 22

1шт.

13

82850151

Bolt M12 x 45

4шт.

14

81870159

SEAL,35mm ID x 65mm OD x 17.5mm Thk

Ring

2шт.

15

83930156

BUSHING

2шт.

16

CAR144469

STUB AXLE/STEERING S

Swivel Housing RH

1шт.

17

83985189

SPACER

Bushing

2шт.

18

82921840

Nut M14

2шт.

19

83961203

BOLT,Hex, M14 x 2 x 75mm

2шт.

20

CAR049067

ROD

1шт.

21

83957762

SEAL KIT

Oil

1шт.

22

83957756

GLAND

Cylinder Head

1шт.

23

CAR144467

SHIELD

Cover

2шт.

Выбрано товаров: 23
