Запчасти Case IH FARMALL 120A (21.154.AA[02]) - VAR - 330061 - FRONT COVER 16X8, POWERSHUTTLE (21) - TRANSMISSION

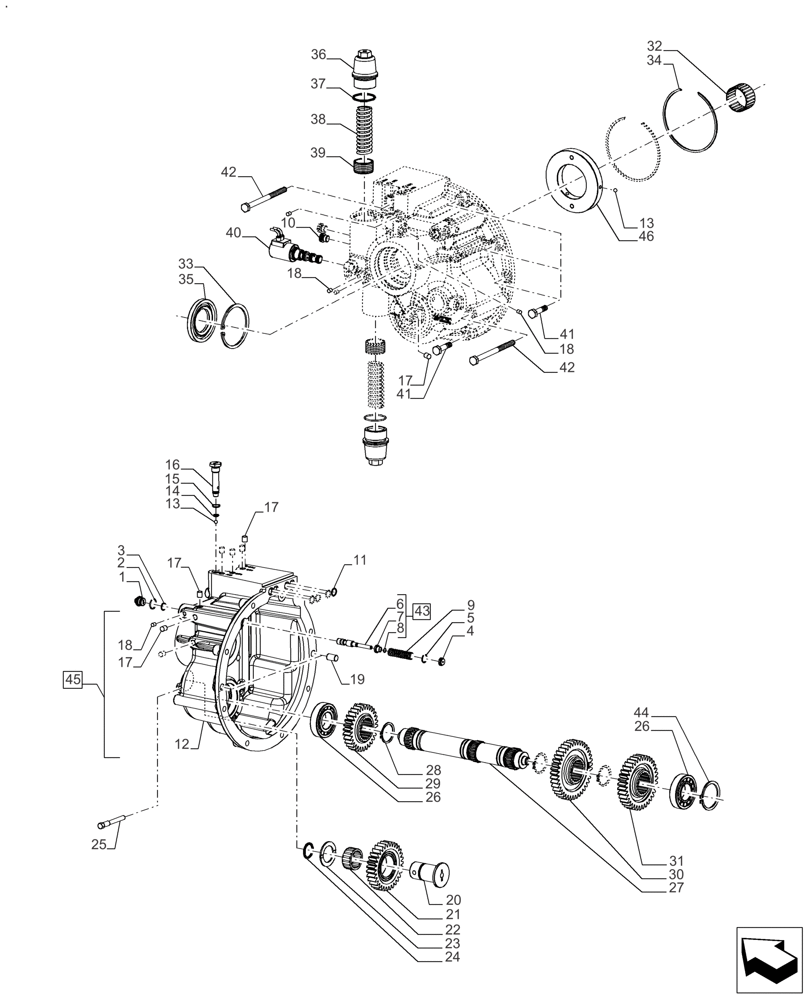

Схема запчастей Case IH FARMALL 120A - (21.154.AA[02]) - VAR - 330061 - FRONT COVER 16X8, POWERSHUTTLE (21) - TRANSMISSION
41
6
8
21
30
17
15
18
32
42
41
17
31
14
18
10
34
43
17
26
29
19
18
13
24
42
13
45
36
25
16
9
4
20
23
27
7
33
17
39
37
2
1
11
44
26
3
38
28
22
46
12
40
35
5

Артикул

Название

Примечание

Количество

1

84495277

PLUG

Spool Plug Seat

1шт.

2

13420776

RING

Retaining Int Reg 20mm BLO

1шт.

3

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

4

47127951

CAP COVER

1шт.

5

13420576

SNAP RING,M16, Int

1шт.

6

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 43

1шт.

7

NSS

NOT SOLD SEPARAT

Spacer, Incl in 43

1шт.

8

NSS

NOT SOLD SEPARAT

Snap Ring M8, Int, Incl in 43

1шт.

9

47123788

SPRING,15mm OD x 87.5mm L

PTO Valve

1шт.

10

82983295

PLUG,M14

2шт.

11

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

12

NSS

NOT SOLD SEPARAT

Clutch Support, Incl in 45

1шт.

13

83416928

BALL,1/4 OD

2шт.

14

14452980

O-RING,9.25mm ID x 1.78" Width

1шт.

15

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

16

84495307

VALVE BODY

Bidirectional Valve Body

1шт.

17

NSS

NOT SOLD SEPARAT

Plug 10mm, Incl in 45

6шт.

18

NSS

NOT SOLD SEPARAT

Plug 7mm, Incl in 45

5шт.

19

83980528

DOWEL,12.71mm OD x 20.57mm L

Incl in 45

2шт.

20

84371333

PIN,35mm OD x 71mm L

Shaft Reverse Idler

1шт.

21

84371338

GEAR

Gear Reverse Idler

1шт.

22

81863099

BEARING ASSY,35mm ID x 45mm OD x 19.8mm W

Roller, Cylindrical

1шт.

23

82012540

THRUST WASHER,35mm ID x 52mm OD x 2.5mm Thk

1шт.

24

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.

25

5199330

LOCK PIN

Lock Pin Threaded

1шт.

26

26797960

ROLLER BEARING,35 mm ID x 72 mm OD x 17 mm

2шт.

27

84393249

REVERSE SHAFT

Shaft Reverse

1шт.

28

370007

SNAP RING,M45, Ext

3шт.

29

84371340

GEAR

Gear Reverse Driven

1шт.

30

84393250

GEAR

Gear Low Range Driven

1шт.

31

84371342

GEAR

Gear Reverse Secondary Driver

1шт.

32

5137527

NEEDLE BEARING,45mm ID x 50mm OD x 27mm W

1шт.

33

370013

SNAP RING,M90 x 3mm Thk, Internal

1шт.

34

84392877

SNAP RING,M125

Rect. Size 125 Seeger SB

2шт.

35

5164500

SEAL,50mm ID x 90mm OD x 10mm Thk

1шт.

36

5137482

SHIELD

2шт.

37

14458881

O-RING,1.612" ID x 0.103" Width

2шт.

38

5137481

SPRING,Compression, 32mm OD x 122mm L

Compression

2шт.

39

5137480

PISTON,40mm OD

2шт.

40

73338129

SOLENOID VALVE

Solenoid

1шт.

41

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

6шт.

42

16206024

BOLT,Hex, M10 x 1.25 x 140mm, Cl 8.8

Bolt M10 X 1.25 X 140 8.8 DAC

2шт.

43

47471037

VALVE

Incl 6 - 8

1шт.

44

11061576

SNAP RING,M72, Int

1шт.

45

84495264

SUPPORT

Support Clutch Assy 16+8 PS, Incl 12, 17 - 19

1шт.

46

84381195

MANIFOLD

Manifold Transmission Oil

1шт.

Выбрано товаров: 46
