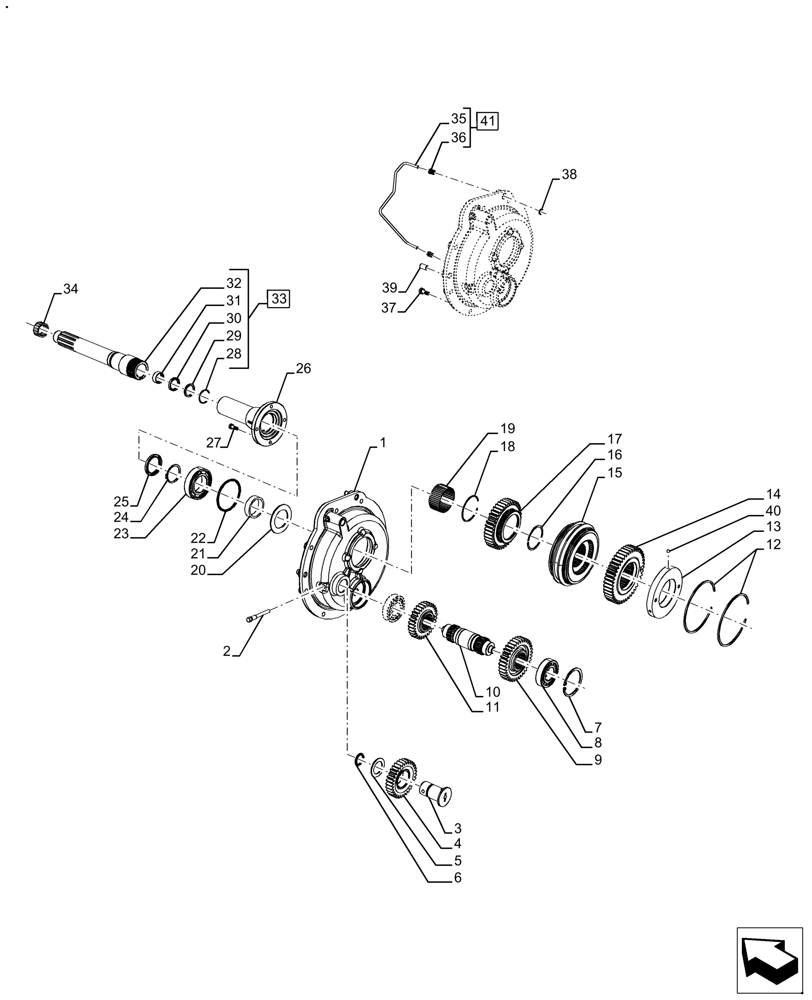

Запчасти Case IH FARMALL 120A (21.140.AR) - VAR - 390340 - FRONT COVER 8X8, MECHANICAL REVERSE (21) - TRANSMISSION

1

84387184

COVER

Housing Front, Hydraulic Lub, Serial Range: -NT01279M

1шт.

To Use This Cover is Necessary to Use Tube 47484190 and Seal 81863105

1шт.

1

47932950

COVER

Housing Front, Hydraulic Lub, Start Serial: NT01279M

1шт.

To Use This Cover is Necessary to Use Tube 47932598

1шт.

2

5199330

LOCK PIN

Reverse Shaft Lock Treaded Pin

1шт.

3

84371333

PIN,35mm OD x 71mm L

Intermediate Gear Pin

1шт.

4

84371338

GEAR

Returning Reverse Gear

1шт.

5

82012540

THRUST WASHER,35mm ID x 52mm OD x 2.5mm Thk

1шт.

6

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.

7

11061576

SNAP RING,M72, Int

1шт.

8

26797960

ROLLER BEARING,35 mm ID x 72 mm OD x 17 mm

2шт.

9

84371342

GEAR

Counter Shaft Cluster

1шт.

10

84387195

COUNTERSHAFT

Cluster

1шт.

11

84371340

GEAR

Counter Shaft Cluster

1шт.

12

84392877

SNAP RING,M125

Rect. Size 125 Seeger SB

2шт.

13

84381195

MANIFOLD

Transmission Oil

1шт.

14

84371351

GEAR

Driven Gear Shuttle

1шт.

15

84387205

SYNCHRONIZER

Reverse D 114

1шт.

16

81864658

SNAP RING,55.2mm ID

1шт.

17

84371331

GEAR

Reverse Driven Gear

1шт.

18

84392873

SNAP RING,M65

Rect. Size 65 Seeger SB

1шт.

19

73336559

NEEDLE BEARING,60mm ID x 65mm OD x 30mm W

1шт.

20

84371348

THRUST WASHER,53.1mm ID x 82mm OD x 3mm Thk

1шт.

21

84387196

SHIM

1шт.

22

238-5153

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

1шт.

23

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

1шт.

24

11069376

SNAP RING,M50, Ext

1шт.

25

81864672

SEAL,47mm ID x 62mm OD x 6mm Thk

1шт.

26

84387187

SUPPORT

1шт.

27

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

4шт.

28

5168197

SNAP RING,1.5mm Thk, Int

1шт.

29

84387197

SPACER

Seal Clutch Shaft

1шт.

30

81801990

SEAL,30.26mm ID x 39.7mm OD x 6.35mm Thk

Assy. PTO Drive Shaft Oil Front

1шт.

31

81864464

BUSHING,30.02mm ID x 33.62mm OD x 14mm L

1шт.

32

84387192

SHAFT

Transmission Input

1шт.

33

84387193

SHAFT

Transmission Input, Incl 28 - 32

1шт.

34

81863099

BEARING ASSY,35mm ID x 45mm OD x 19.8mm W

Roller, Cylindrical

1шт.

35

47484190

TUBE

Hydraulic Assy. Tube Transmission Lubricant, Serial Range: -NT01279M

1шт.

To Use This Tube is Necessary to Use Cover 84387184 and Seal 81863105

1шт.

35

47932602

HYD TUBE

Transmission Lubricant, Start Serial: NT01279M

1шт.

36

81863105

SEAL

Transmission Oil Distribution Housing, Serial Range: -NT01279M

2шт.

36

82988747

Straight Connector M12 x 1, Start Serial: NT01279M

2шт.

37

15970824

SCREW,Hex, M10 x 1.25 x 32mm, Cl 8.8, Full Thd

8шт.

38

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

39

83980528

DOWEL,12.71mm OD x 20.57mm L

2шт.

40

83416928

BALL,1/4 OD

1/4

1шт.

41

47932598

HYD TUBE

Transmission Lubricant, Incl 35, 36, Start Serial: NT01279M

1шт.

To Use This Tube is Necessary to Use Cover 47932950

1шт.
