(21.134.AH) - VAR - 330059, 330061 - TRANSMISSION, CONTROL, ACTUATOR, POWERSHUTTLE

Запчасти Case IH FARMALL 120A (21.134.AH) - VAR - 330059, 330061 - TRANSMISSION, CONTROL, ACTUATOR, POWERSHUTTLE (21) - TRANSMISSION

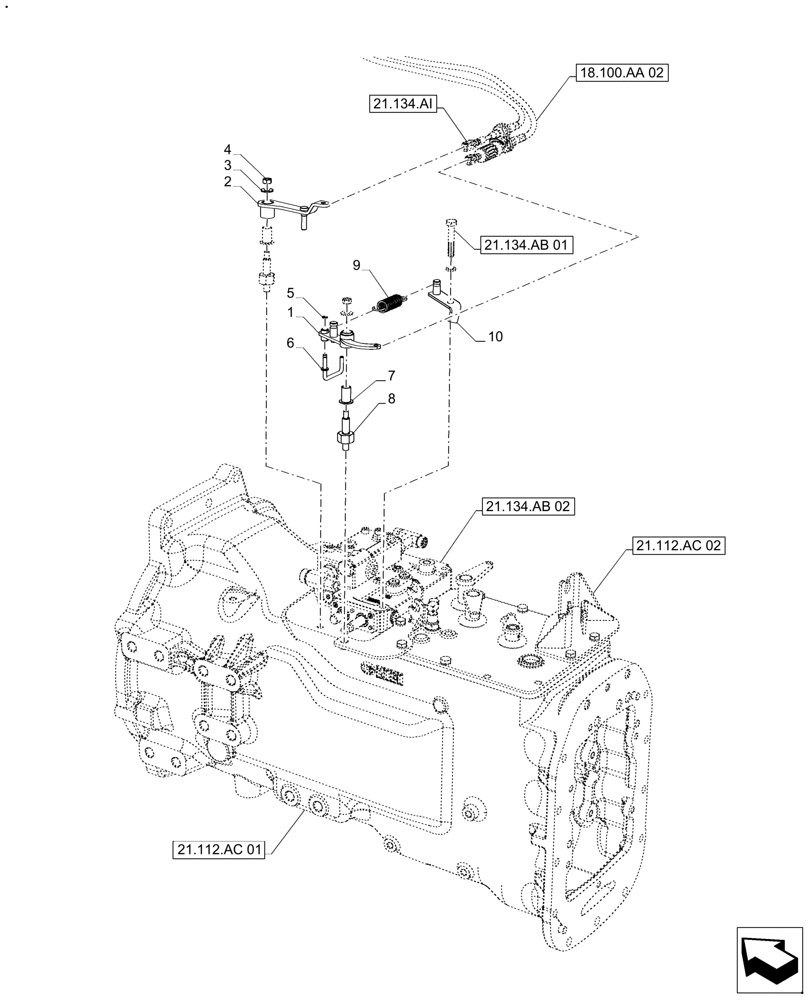

Схема запчастей Case IH FARMALL 120A - (21.134.AH) - VAR - 330059, 330061 - TRANSMISSION, CONTROL, ACTUATOR, POWERSHUTTLE (21) - TRANSMISSION
21.112.ac 01
4
6
8
10
1
9
7
3
2
5
21.134.ai
18.100.aa 02
21.134.ab 01
21.134.ab 02
21.112.ac 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47891107

LEVER

Control Assy. Clutch

1шт.

2

47891093

CONTROL LEVER

Lever, Control Assy. FWR PS

1шт.

3

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

4

43362

NUT,M8 x 1.25, Cl 10

2шт.

5

86632599

CIRCLIP,M5

1шт.

6

47640063

LINK/SHACKLE

Connecting Rod Assy. Clutch

1шт.

7

47693267

BUSHING

FWR

2шт.

8

47693256

PIN

Control FWR

2шт.

9

5153180

SPRING,21mm OD x 84mm L

Extension, Brake Pedal

1шт.

10

47858500

SUPPORT

Assy.

1шт.

Выбрано товаров: 10
