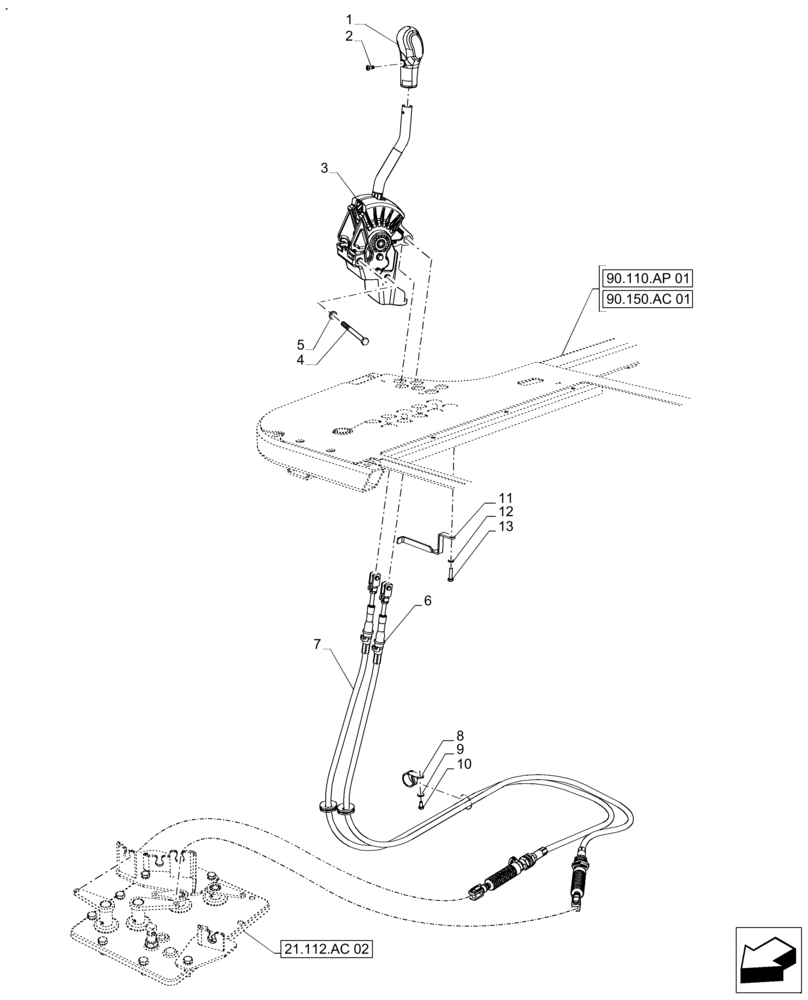

Запчасти Case IH FARMALL 120A (21.130.BC[01]) - VAR - 330059, 390340 - TRANSMISSION, CONTROL LEVER (21) - TRANSMISSION

1

82022583

KNOB

1шт.

2

13310977

SCREW,Pozidriv Oval Hd, Csk, M5 x 14mm, Full Thd, SST

1шт.

3

47539558

CONTROL

Gearshift

1шт.

4

86980390

BOLT,Hex, M8 x 100mm, Cl 8.8

2шт.

5

10284460

WASHER,M10.2 x 16 x 1.5, Copper

2шт.

6

47522476

CABLE

RH, Gearshift

1шт.

7

47522477

CABLE

LH, Gearshift

1шт.

8

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

1шт.

9

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

10

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

11

47849981

BRACKET

Cables

1шт.

12

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

13

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.
