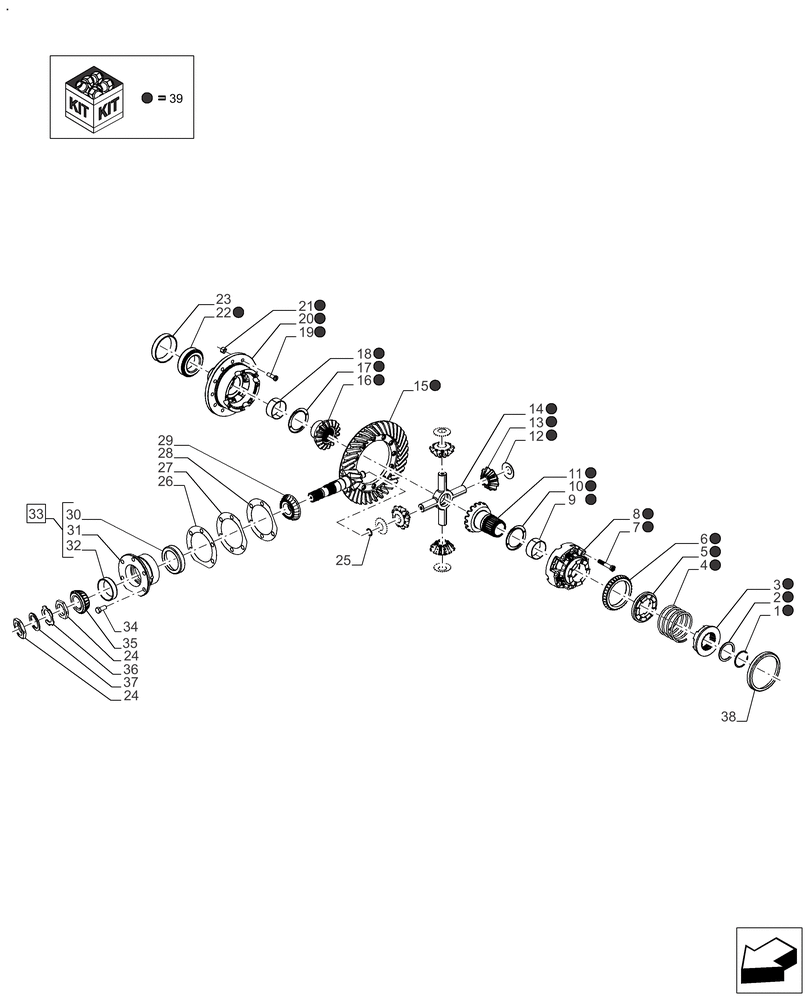

Запчасти Case IH FARMALL 120A (21.120.AB[03]) - VAR - 390331, 330331 - GEARBOX, HOUSING, HEAVY DUTY (21) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
1
81803474
SNAP RING,2.37" ID
1шт.
2
81800475
WASHER,64.64mm ID x 78.74mm OD x 3.25mm Thk
1шт.
3
81812261
ADAPTER
Coupling Rear Axle Differential Lock
1шт.
4
81800474
SPRING
Compression, Differential Lock Coupler
1шт.
5
81800472
ADAPTER
Lock, Differential, Gear Case
1шт.
7
83994579
LOCK BOLT,1/2" - 13 x 2-7/8", Gr 8
8шт.
8
82959493
HOUSING
Rear Axle Differential Gear, RH
1шт.
9
81800471
BUSHING,72.08mm ID x 75.21mm OD x 31.75mm L
1шт.
10
81803424
THRUST WASHER,76.2mm ID x 101.6mm OD x 1.58mm Thk
1шт.
11
81803451
GEAR,27 Teeth
1шт.
13
81728114
PINION,9 Teeth
4шт.
14
81876885
SPIDER,28.4mm Cap Dia, 179.3mm L
Rear Axle Differential
1шт.
15
47495369
GEAR
Set 7/37
1шт.
16
81803445
GEAR,38 Teeth
1шт.
17
81803424
THRUST WASHER,76.2mm ID x 101.6mm OD x 1.58mm Thk
1шт.
18
81800471
BUSHING,72.08mm ID x 75.21mm OD x 31.75mm L
1шт.
19
83957533
SCREW,Pan HD, 1/2" - 20 x 1-5/8", Gr 8
12шт.
20
82959482
HOUSING
Rear Axle Differential Gear, LH
1шт.
21
83417169
NUT,1/2"-20, GA
1шт.
22
83402421
BEARING ASSY
Rear Axle Differential Bearing
1шт.
23
82959375
BEARING ASSY,112.74mm OD x 23.85mm W
1шт.
24
82982044
BEARING LOCK NUT
2шт.
25
11067374
CIRCLIP,M25
1шт.
26
83992835
BEARING ASSY
Cone, 44.45mm ID
1шт.
27
47432865
SHIM
TH.0,5
1шт.
28
47432864
SHIM
TH.0,20
1шт.
29
47432863
SHIM
1шт.
30
83991728
BEARING ASSY
Cup, 111.125mm OD
1шт.
31
47495117
RETAINER
Retainer
1шт.
32
83936163
BEARING ASSY
Cup, 88.9mm OD
1шт.
33
47495116
RETAINER
Incl 30 - 32
1шт.
34
81821254
BOLT,Hex, 9/16" - 12 x 1 1/4", Gr 5
4шт.
35
82936268
TAPERED BEARING,44.45mm ID x 30.38mm W
1шт.
36
81803550
LOCK WASHER,41.71mm ID x 66.55mm OD x 2.16mm Thk
1шт.
37
81815991
THRUST WASHER,38.73mm ID x 57.15mm OD x 3.17mm Thk
Rear Axle Drive Pinion
1шт.
38
81803420
BEARING CUP,158.75mm OD x 15.88mm W
1шт.
39
47495111
DIFFERENTIAL
Incl 1 - 22
1шт.
Выбрано товаров: 39
