(21.114.AL[01]) - VAR - 390340 - TRANSMISSION HOUSING, MECHANICAL REVERSE

Запчасти Case IH FARMALL 120A (21.114.AL[01]) - VAR - 390340 - TRANSMISSION HOUSING, MECHANICAL REVERSE (21) - TRANSMISSION

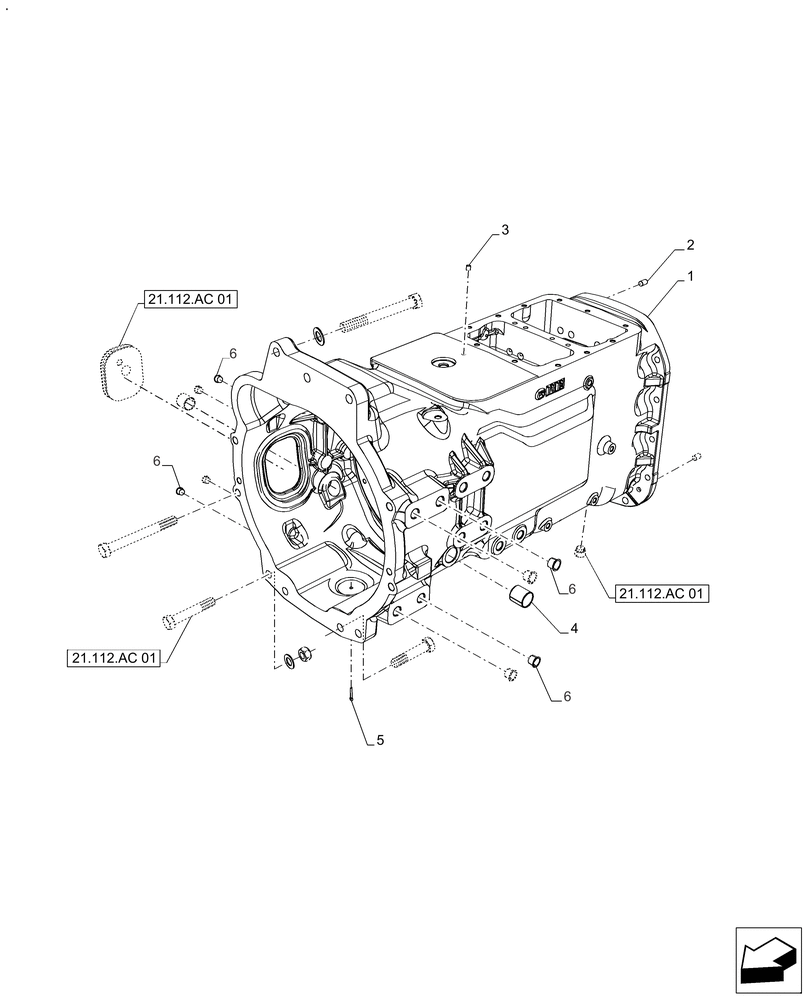

Схема запчастей Case IH FARMALL 120A - (21.114.AL[01]) - VAR - 390340 - TRANSMISSION HOUSING, MECHANICAL REVERSE (21) - TRANSMISSION
3
6
21.112.ac 01
5
21.112.ac 01
4
6
21.112.ac 01
1
6
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47830904

HOUSING

1шт.

2

83980528

DOWEL,12.71mm OD x 20.57mm L

2шт.

3

14536490

PLUG,8.00mm Dia x 15.70mm L

1шт.

4

83924916

BUSHING,28.66mm ID x 34.87mm OD x 31.75mm L

2шт.

5

82928308

COTTER PIN,5/32" x 1"

1шт.

6

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

8шт.

Выбрано товаров: 6
