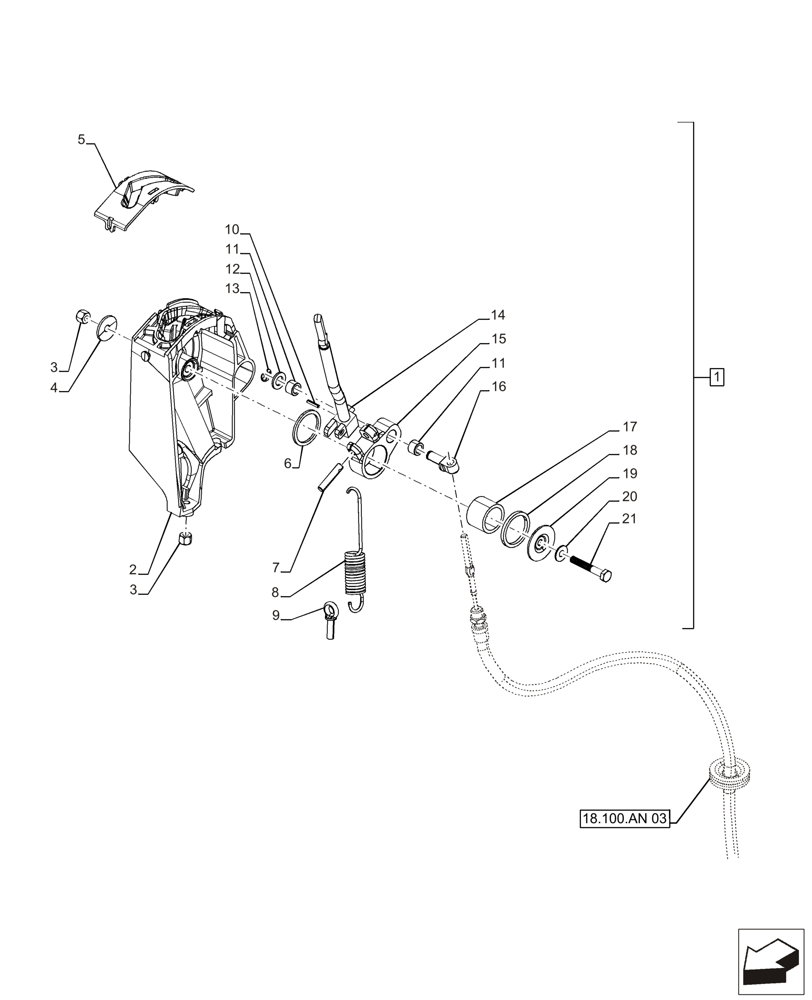

Запчасти Case IH FARMALL 120A (18.100.AN[04]) - VAR - 336939, 390844 - PTO CLUTCH, CONTROL LEVER, CAB (18) - CLUTCH

1

47685017

CONTROL LEVER

Incl 2 - 21

1шт.

2

47388442

SUPPORT

1шт.

3

12574221

NUT,M6 x 1, Cl 10

2шт.

4

11194479

BELLEVILLE WASHER,M6 Bolt Size x 24mm OD

1шт.

5

87325900

SECTOR

1шт.

6

5191656

CUP WASHER,28mm ID x 34mm OD x 2mm Thk

1шт.

7

47123110

PIN,30mm x 6mm

1шт.

8

48015649

SPRING

1шт.

9

5115351

HOOK,M6 x 1

1шт.

10

14159674

ROLL PIN,2.5mm OD x 14mm L

1шт.

11

5188230

NEEDLE BEARING,Needle, 8mm ID x 12mm OD x 8mm W

2шт.

12

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

13

11087874

CIRCLIP,M6

1шт.

14

47674677

LEVER

1шт.

15

5191700

BUSHING,28mm ID x 36mm OD x 16mm L

1шт.

16

47131077

PIN,8mm

1шт.

17

5191013

ROLLER BEARING,Needle, 22mm ID x 28mm OD x 20mm W

1шт.

18

87528222

WASHER,28mm ID x 34mm OD x 3mm Thk

1шт.

19

87528262

ANTI-WRAP PLATE,6mm ID x 34mm OD

1шт.

20

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

1шт.

21

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.
