Запчасти Case IH FARMALL 120A (41.216.AN[01]) - POWER STEERING CYLINDER COMPONENTS - FRONT AXLE (2WD) (41) - STEERING

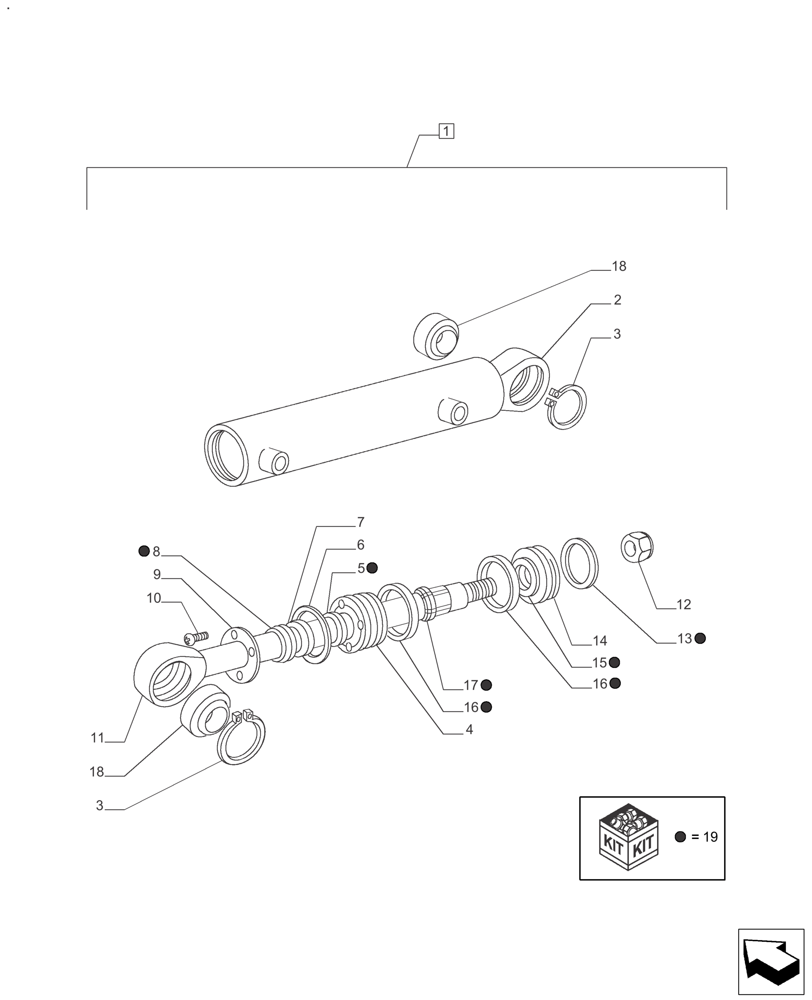

Схема запчастей Case IH FARMALL 120A - (41.216.AN[01]) - POWER STEERING CYLINDER COMPONENTS - FRONT AXLE (2WD) (41) - STEERING
16
19
12
7
5
8
16
6
3
19
2
19
19
9
15
19
13
18
19
4
11
3
18
17
19
14
19
19
10
1

Артикул

Название

Примечание

Количество

1

82987884

STEERING CYLINDER

Cylinder Assy. Steering Power 2WD, Incl 2 - 18

1шт.

Use with Tie-Rod 82981597

1шт.

Before ECO 35213322

1шт.

1

47927925

STEERING CYLINDER

Cylinder Assy. Steering Power 2WD, Incl 2 - 18

1шт.

Use with Tie-Rod 47927923

1шт.

After ECO 35213322

1шт.

2

82987885

BARREL

Casing Assy., Cylinder

1шт.

Before ECO 35213322

1шт.

2

47927936

Housing Assy.

1шт.

After ECO 35213322

1шт.

3

82982894

SNAP RING,1.60", Int

2шт.

4

82981640

GLAND

Head

1шт.

5

82981648

SEAL

1шт.

6

82981650

CIRCLIP

O-Ring

1шт.

7

82981645

STOP

Tube

1шт.

8

82981649

SEAL

Seal, Dust

1шт.

9

82981644

END PLATE

Plate, End

1шт.

10

82981652

CAPTIVE WASHER SCREW,#10-24 x 1/2"

4шт.

11

82981637

ROD

Rod, Cylinder

1шт.

12

82981651

LOCK NUT,5/8"-11

1шт.

13

82981673

BACK-UP RING

Washer, Back-Up

2шт.

14

82981639

PISTON

Piston

1шт.

15

82927033

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

Seal 0.625 ID x 0.070 W

1шт.

16

235782

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

Seal, Head, Piston

2шт.

17

82981647

BUSHING

Bushing

1шт.

18

82981646

SPHERICAL BEARING,19.04mm ID x 36.51mm OD x 19.18mm W

2шт.

19

82982568

SEAL KIT

Kit, Repair Seal. Incl 5, 8, 13, 15 - 17

1шт.

Выбрано товаров: 27
