Запчасти Case IH FARMALL 120A (41.200.AO[03]) - STEERING PUMP TANK PIPES FRONT AXLE 2WD 4 CYL. HEAVY DUTY (41) - STEERING

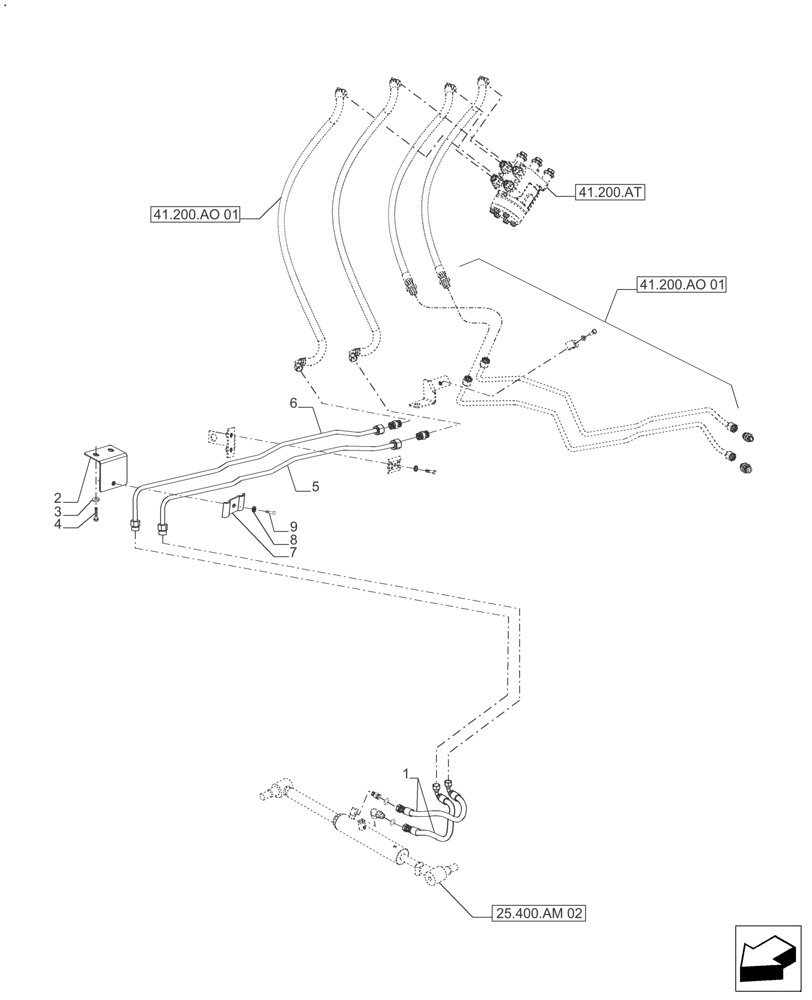

Схема запчастей Case IH FARMALL 120A - (41.200.AO[03]) - STEERING PUMP TANK PIPES FRONT AXLE 2WD 4 CYL. HEAVY DUTY (41) - STEERING
3
41.200.ao 01
4
9
7
41.200.ao 01
8
41.200.at
25.400.am 02
5
6
1
2

Артикул

Название

Примечание

Количество

1

82036370

HOSE

2WD POWER STEERING

2шт.

2

73338555

SUPPORT

SUPPORT ASSY. PS TUBES LH, Start Year: 18-JAN-13

1шт.

3

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

5

73338551

TUBE

TUBE ASSY. FR LO' STRNG LH, Start Year: 18-JAN-13

1шт.

6

73338548

TUBE

TUBE ASSY. FR UP' STRNG LH, Start Year: 18-JAN-13

1шт.

7

73338524

CLAMP

POWER STRNG TUBES, Start Year: 18-JAN-13

1шт.

8

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

2шт.

9

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

Выбрано товаров: 9
