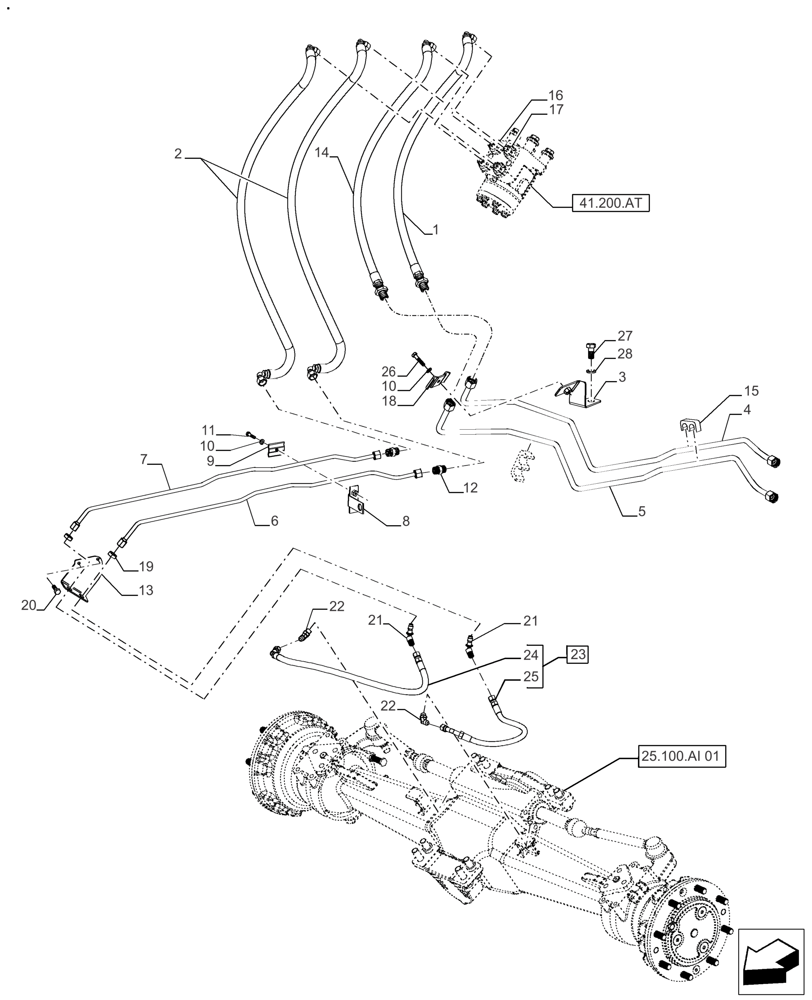

Запчасти Case IH FARMALL 120A (41.200.AO[01]) - POWER STEERING LINES MECHANICAL/POWER SHUTTLE 4 CYL. - 2WD/4WD (41) - STEERING

1

48036758

HOSE

Front R.H. Hose Assy. Steering (ROPS) Power Shuttle

1шт.

1

48036758

HOSE

Front R.H. Hose Assy. Steering (ROPS) Mechanical

1шт.

1

48036027

HOSE

Front R.H. Hose Assy. Steering (CAB)

1шт.

2

48036031

HOSE

Front L.H. Hose Assy. Steering

2шт.

3

73338522

SUPPORT

Support Steering Tubes , Start Year: 18-JAN-13

1шт.

4

73336822

TUBE

Rear Upper Tube Assy. Steering, Only Mechanical

1шт.

5

73336825

TUBE

Rear Lower Tube Assy. Steering

1шт.

6

73335975

TUBE

Front Lower Tube Assy. Steering 2WD, Not Shown

1шт.

6

73338544

HYD TUBE

Front Lower Tube Assy. Steering 4WD

1шт.

7

73335972

TUBE

Front Upper Tube Assy. SteerinG 2WD, Not Shown

1шт.

7

73338541

HYD TUBE

Front Upper Tube Assy. Steering 4WD

1шт.

8

82988461

SUPPORT

Side Support Assy. Steering Tube

1шт.

9

85700613

CLAMP,1.75mm W x 0.20mm Thk

1шт.

10

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

2шт.

11

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

1шт.

12

84431546

UNION,11/16"-16 ORFS

2шт.

13

82988636

SUPPORT

Support Assy. R.H., Steering Cyl. Tubes 2WD, Not Shown

1шт.

13

82988459

SUPPORT TUBE

Support Assy. L.H., Steering Cyl. Tubes 4WD

1шт.

14

47938097

Steering Column, Front RH Hose (ROPS)

1шт.

14

47922911

HOSE

Steering Column, Return Line (CAB)

1шт.

15

83926189

CLAMP

2шт.

16

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

2шт.

17

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

2шт.

18

73338524

CLAMP

Mechanical, Start Year: 05-JUL-13

1шт.

18

81843671

CLIP

Power Shuttle, Not Shown

1шт.

19

87381288

BHD LOCK NUT

2шт.

20

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

21

83992505

45 ELBOW,9/16"-18

4WD

2шт.

22

83958374

45 ELBOW,9/16"-18, 37° x 9/16"-18, O-Ring

2шт.

23

82982900

KIT

Kit, Hoses Power Steering Cyl, Incl 24 - 25

1шт.

24

82983369

FLEXIBLE HOSE,9.65mm ID x 435mm L, SAE 100R1

1шт.

25

82983368

FLEXIBLE HOSE,9.53mm ID x 825mm L, SAE 100R1

1шт.

26

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

Mechanical

1шт.

26

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

Power Shuttle

1шт.

27

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

28

10517074

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

1шт.
