Запчасти Case IH FARMALL 120A (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

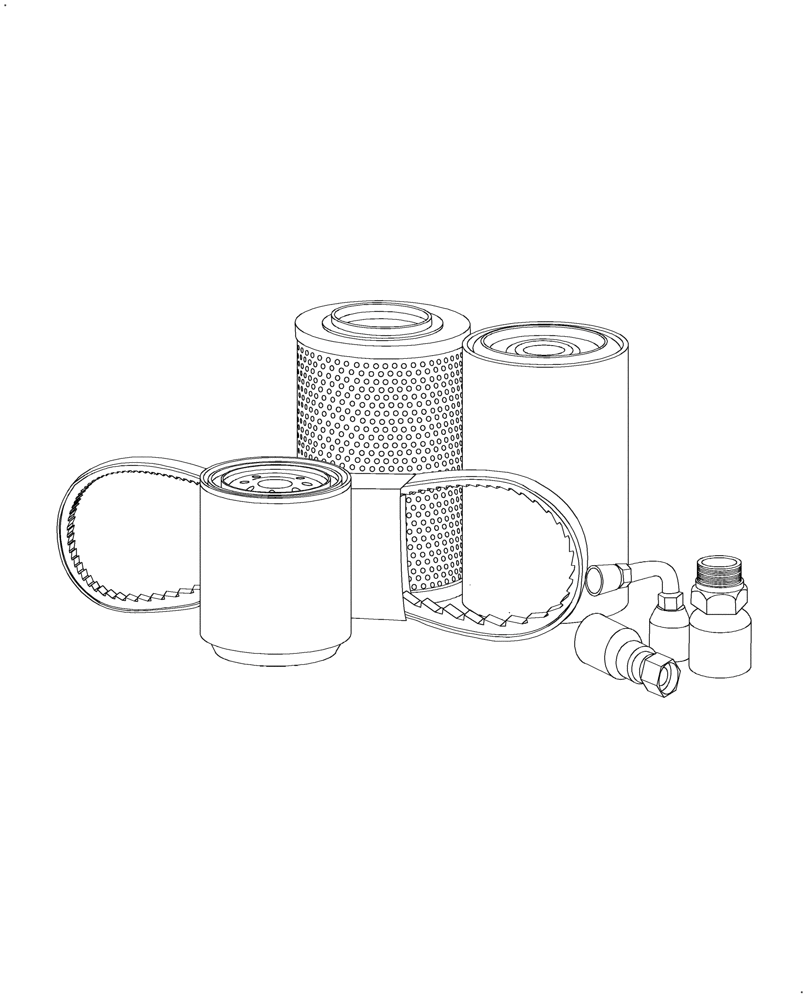

Схема запчастей Case IH FARMALL 120A - (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

4899178

V-BELT,28.48 mm W x 1550.00 mm L, 8 Ribs

Engine Fan

1шт.

2

84171722

FUEL FILTER

Engine 4 Cyl.

1шт.

3

84175081

FUEL FILTER

Engine 6 Cyl.

1шт.

4

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

4 & 6 Cyl.

2шт.

5

8602995

FILTER, ELEMENT

External

2шт.

6

8602996

FILTER, ELEMENT,Safety, 101.6mm OD x 376.7mm L

Internal

2шт.

7

73337833

AIR FILTER

Secundary

2шт.

8

73337834

AIR FILTER

Primary

2шт.

9

D8NNB486CA

HYDRAULIC OIL FILTER

2шт.

10

82983474

HYDRAULIC OIL FILTER

(Only ROPS)

1шт.

11

87710661

V-BELT,3.56 mm W x 990.00 mm L, 4 Ribs

Cab Air Cond.

1шт.

12

47427164

HYDRAULIC OIL FILTER

Transmission Filter

1шт.

Выбрано товаров: 12
