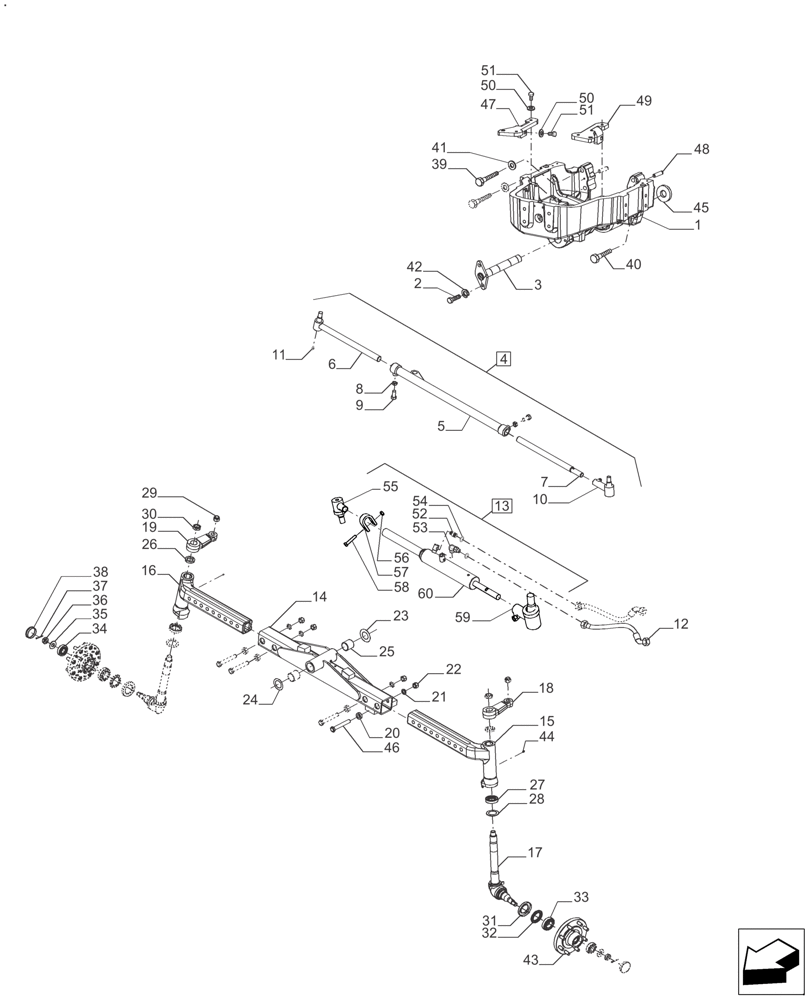

Запчасти Case IH FARMALL 120A (25.400.AM[02]) - FRONT AXLE - STEERING SYSTEM 2WD - 4 CYL. HEAVY DUTY (25) - FRONT AXLE SYSTEM

1

73338501

SUPPORT

Sup FR 4 Cyl. HD

1шт.

2

15540721

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

2шт.

3

73336931

PIVOT

Pin Assy, Axle

1шт.

4

82002655

TRACK ROD ASSY

Incl 5 - 11

1шт.

5

81863800

TUBE,37.98" Length

1шт.

6

81863803

TIE-ROD

1шт.

7

81868963

STEERING TIE-ROD

1шт.

8

81864102

CAPSCREW

2шт.

9

87313

JAM NUT,Jam, 3/4"-16, G2

2шт.

10

81863802

BALL JOINT,1 1/8" - 16 x 4-7/8" L

1шт.

11

81818824

LUBE NIPPLE,90 Degree, 1/8"-27 NPT

1шт.

12

82036370

HOSE

2шт.

13

82037187

STEERING CYLINDER,Double Acting, 25mm Rod, 236.5mm Stroke

Incl 52 - 60, FARMALL 110A, FARMALL 120A, 4 CYL. HEAVY DUTY

1шт.

13

82037187R

REMAN-HYD CYLINDER

Incl 52 - 60, FARMALL 110A, FARMALL 120A, 4 CYL. HEAVY DUTY

1шт.

13

82037187C

CORE-HYD CYLINDER

Return Number

1шт.

14

73337119

AXLE

Central Beam Assy.

1шт.

15

82028120

EXTENSION

1шт.

16

82028121

EXTENSION

1шт.

17

81872316

SPINDLE

2шт.

18

82029586

LEVER

ARM-STEERING SPINDLE- LH

1шт.

19

82029587

LEVER

ARM-STEERING SPINDLE- RH

1шт.

20

81872166

SPACER,21mm ID x 39mm OD x 12mm L

4шт.

21

10572379

WASHER,M20.2 x 33.6 x 6 Thk, HT

4шт.

22

81851143

NUT,M20 x 2.5, Cl 8

4шт.

23

73336737

SHIM

SHIM FRONT AXLE 2WD .3

1шт.

24

73336736

SHIM

SHIM FRONT AXLE 2WD .6

1шт.

25

82003066

BUSHING,47.65mm ID x 54.06mm OD x 52.58mm L

2шт.

26

83918236

SEALING RING,38.1mm ID x 57.1mm OD x 9.98mm Thk

2шт.

27

81802870

BEARING ASSY

2шт.

28

81864058

SPACER

2шт.

29

82894839

LOCK NUT,7/8"-14

2шт.

30

83955891

JAM NUT

2шт.

31

81812306

SHIELD,57.23mm ID x 94.49mm OD x 0.76mm Thk

2шт.

32

73338324

OIL SEAL

Retainer

2шт.

33

512725

BEARING CONE,45.62mm ID x 25.4mm W

2шт.

34

81812303

ROLLER BEARING,28.57mm ID x 22.23mm W

2шт.

35

81735236

WASHER,19.18mm ID x 49.78mm OD x 3.3mm Thk

2шт.

36

82895302

SLOTTED NUT

2шт.

37

81815888

COTTER PIN,5/32" x 1 1/4"

2шт.

38

73338386

HUB CAP

CAP FRONT WHEEL HUB

2шт.

39

15989721

SCREW,Hex, M20 x 1.5

6шт.

40

15989537

BOLT,Hex, M20 x 1.5 x 120mm, Cl 10.9

2шт.

41

81845770

WASHER,0.83" ID x 1.44" OD x 0.13" Thk

2шт.

42

85700672

LOCK WASHER,M10

2шт.

43

81863773

HUB

2шт.

44

83416243

LUBE NIPPLE,1/4"-28 x .54" L

2шт.

45

82989331

SHIM

Shim, Support Front, .014/.015" (.400/.361mm)

1шт.

45

82989332

SHIM

Shim, Support Front, .017/.018" (.476/.438mm)

1шт.

45

82989333

SHIM

Shim, Support Front, .020/.022" (.508/.559mm)

1шт.

45

82989334

SHIM

Shim, Support Front, .023/.025" (.584/.635mm)

1шт.

45

82989335

SHIM

Shim, Support Front, .026/.028" (.660/.711mm)

1шт.

46

80384656

BOLT

4шт.

47

73338532

Adapter Intercooler LH

1шт.

48

82035662

DOWEL,M20 x 52

2шт.

49

73338503

Adapter Intercooler

1шт.

50

81762368

WASHER,3/8" x .63" x .04" Thk

4шт.

51

82880843

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

52

81863515

HYD CONNECTOR,M14 x 11/16"-16 ORS

1шт.

53

81865683

ELBOW,90 Deg, 11/16-16 ORFS x M14 x 1.5 ORB

1шт.

54

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

55

81863815

BALL JOINT,1 1/4" - 12 x 3" L

1шт.

56

11702911

NUT,M12, Cl 8, ZND

1шт.

57

82037182

CLAMP

1шт.

58

82851742

BOLT

1шт.

59

81863813

TRACK ROD END ASSY

1шт.

60

82037188

STEERING CYLINDER

1шт.
