Запчасти Case IH FARMALL 120A (25.102.AE) - FRONT AXLE LIMITED SLIP DIFFERENTIAL - STANDARD DUTY (108 & 118 HP) (25) - FRONT AXLE SYSTEM

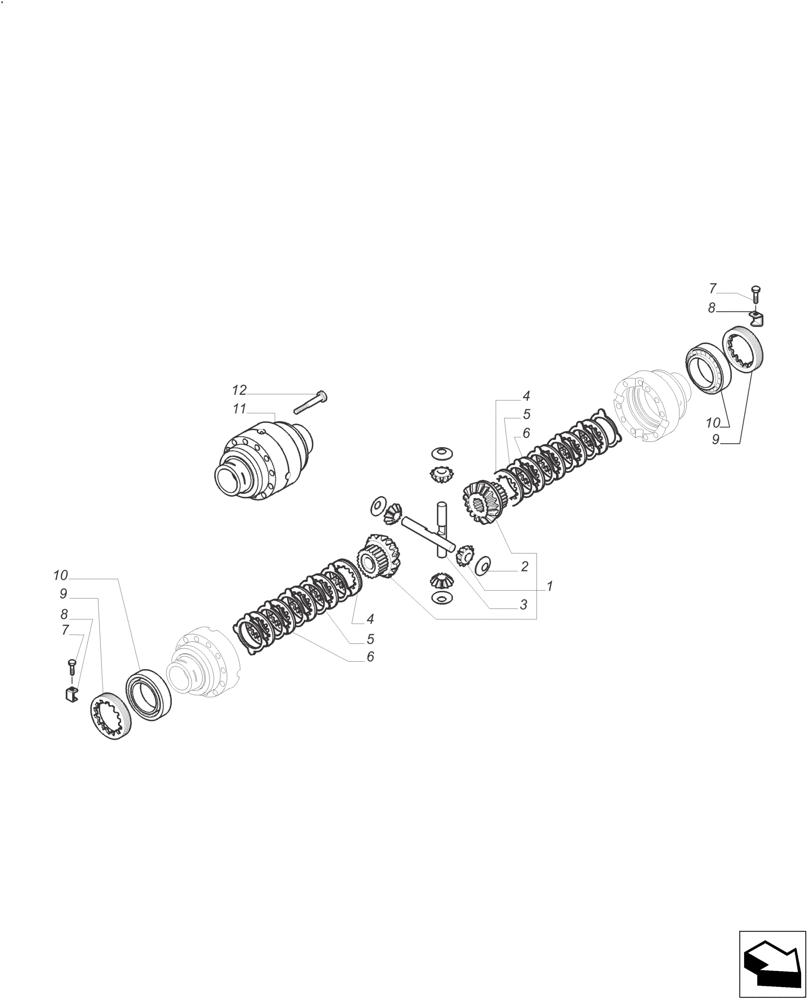

Схема запчастей Case IH FARMALL 120A - (25.102.AE) - FRONT AXLE LIMITED SLIP DIFFERENTIAL - STANDARD DUTY (108 & 118 HP) (25) - FRONT AXLE SYSTEM
9
6
11
12
7
9
5
4
6
3
5
2
4
8
10
1
7
10
8

Артикул

Название

Примечание

Количество

1

CAR066759

DIFFERENTIAL ASSY

Differential Kit, Incl 2 - 3

1шт.

2

83952521

THRUST WASHER

4шт.

3

83952519

PIN

2шт.

4

83930407

PLATE

Differential

2шт.

5

83930408

CLUTCH DRIVING PLATE

Differential

10шт.

6

83930409

CLUTCH PLATE

Differential

8шт.

7

82850295

SCREW,Lock, M6 x 1 x 10mm

M6 x 40

2шт.

8

83930121

LOCKING PLATE

2шт.

9

83930104

BEARING LOCK NUT

2шт.

10

561201

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

2шт.

11

85827068

HOUSING

Differential

1шт.

12

83984351

BOLT

M10x75

12шт.

Выбрано товаров: 12
