Запчасти Case IH FARMALL 120A (25.100.AI[01]) - FRONT AXLE - 4WD - AXLE REF. # 149749 - STANDARD DUTY (108 & 118 HP) (25) - FRONT AXLE SYSTEM

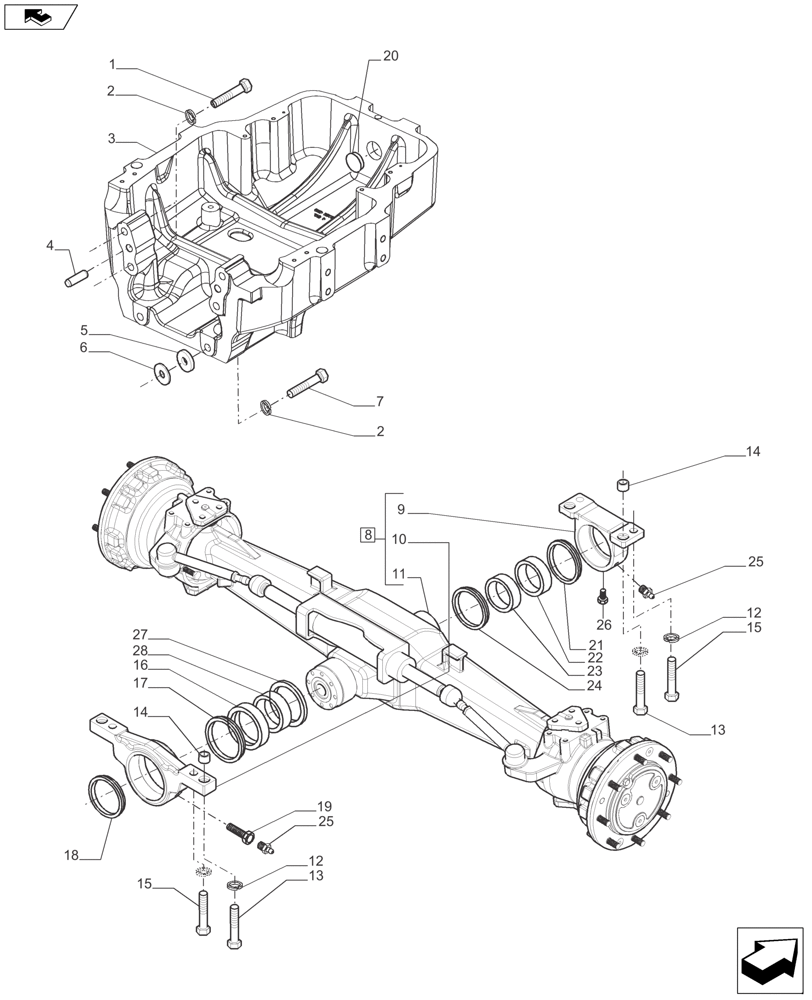

Схема запчастей Case IH FARMALL 120A - (25.100.AI[01]) - FRONT AXLE - 4WD - AXLE REF. # 149749 - STANDARD DUTY (108 & 118 HP) (25) - FRONT AXLE SYSTEM
20
9
4
8
25
21
15
2
17
11
5
05.100.03 01
12
25
14
23
16
13
7
26
19
14
12
18
1
22
3
13
15
24
28
10
27
6
2

Артикул

Название

Примечание

Количество

1

15989721

SCREW,Hex, M20 x 1.5

G8.8

4шт.

2

10572379

WASHER,M20.2 x 33.6 x 6 Thk, HT

6шт.

3

73336618

SUPPORT

Front Support, LD 4 Cyl.

1шт.

4

82035662

DOWEL,M20 x 52

2шт.

5

81845770

WASHER,0.83" ID x 1.44" OD x 0.13" Thk

2шт.

6

82989331

SHIM

Shim, Support Front, Thk, .014/.015 (.400/.361mm)

1шт.

6

82989332

SHIM

Shim, Support Front, Thk, .017/.018 (.476/.438mm)

1шт.

6

82989333

SHIM

Shim, Support Front, Thk, .020/.022 (.508/.559mm)

1шт.

6

82989334

SHIM

Shim, Support Front, Thk, .023/.025 (.584/.635mm)

1шт.

6

82989335

SHIM

Shim, Support Front, Thk, .026/.028 (.660/.711mm)

1шт.

7

15989537

BOLT,Hex, M20 x 1.5 x 120mm, Cl 10.9

G8.8

2шт.

8

82988048

FRONT AXLE

Incl 9 - 11

1шт.

8

82988048R

REMAN-AXLE DIFFERENT

1шт.

8

82988048C

CORE-AXLE, MFD

Return Number

1шт.

9

83992824

SUPPORT

1шт.

10

82920200

SUPPORT

1шт.

11

82988046

AXLE

Front Axle

1шт.

12

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

8шт.

13

83914123

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 8

4шт.

14

83935737

SPACER,20.09mm ID x 30.02mm OD x 17mm L

4шт.

15

83956435

BOLT,Hex, 3/4" - 10 x 2 1/2"

4шт.

16

82920193

BUSHING

1шт.

17

82920195

SEAL,149.5mm ID x 165mm OD x 12mm Thk

1шт.

18

82920196

SEAL,125mm ID x 140mm OD x 12mm Thk

1шт.

19

82920192

SCREW

1шт.

20

82989993

PLUG

Plug, Front Support

1шт.

21

83992820

GASKET

1шт.

22

83992844

BUSHING,115mm ID x 125mm OD x 42mm L

1шт.

23

9967993

BUSHING,115.2mm ID x 104.3mm OD x 44mm L

1шт.

24

83992826

THRUST WASHER

1шт.

25

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.

26

83992819

BOLT,Hex, M16 x 25.5

Locking

1шт.

27

82920194

WASHER, THRUST

1шт.

28

82920233

BUSHING

1шт.

Выбрано товаров: 34
