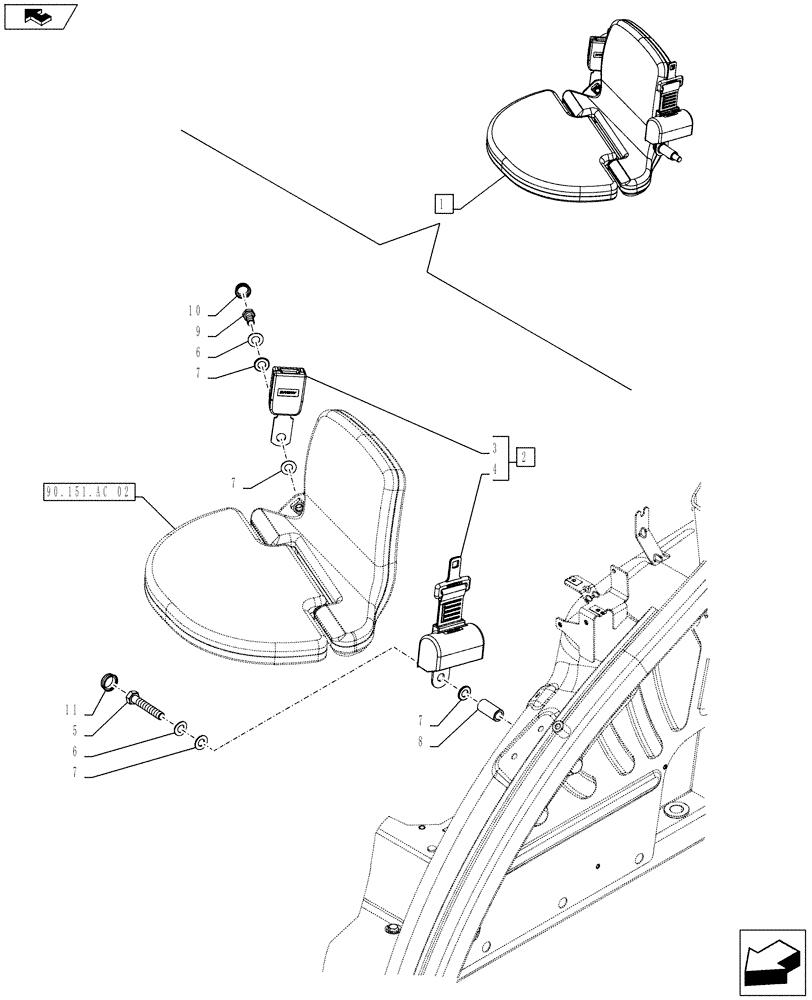

Запчасти Case IH FARMALL 115U (90.151.AD[02]) - VAR - 332865 - PASSENGER SEAT - SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84281902

INSTRUCTIONAL SEAT

ASSY, Incl 2 - 11

1шт.

See Instructional Seat Components also in Figure 90.151.AC 02

1шт.

2

84398541

SEAT BELT,49mm W x 1250mm L

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Belt Slot, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Belt with Roller, Incl in 2

1шт.

5

84467683

BOLT,Hex, M12 x 1.25 x 70mm, Cl 8.8

1шт.

6

84467678

WASHER,13mm ID x 24mm OD x 1.2mm Thk

2шт.

7

84358390

WASHER,12.5mm ID x 25mm OD x 2mm Thk

4шт.

8

84413190

SPACER,20mm ID x 42mm OD x 13mm L

1шт.

9

5080270

SCREW,7/16 UNF x 25mm

1шт.

10

5080271

COVER,17.5mm ID

1шт.

11

84409814

PLUG,M12 x 1.25

1шт.
